POLMARK E14 lamp holder with shade ring

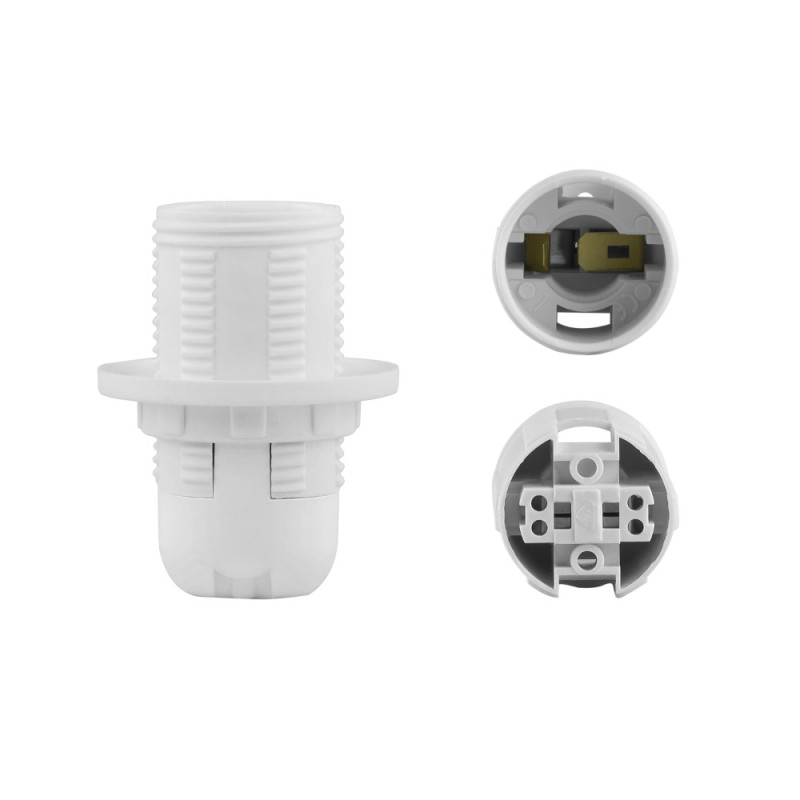

Our SES (small Edison screw) threaded lamp holder with push wire terminals is made of thermoplastic material which makes it very durable and lightweight. Push wire terminals offer a very quick way to assemble a lamp holder. It is recommended for the wires to be soldered or to have ferrules before inserting them into the lamp holder terminals. This Edison bulb holder has 10mm plastic threaded entry dome with an internal grub screw and push wire terminals (Shade ring included) and is ideal for use with our lighting flex cord. Easy to install, just plug and play. If you have any questions, just ask!
POLMARK E14 lamp holder with shade ring installation instruction
1. Use a flat screwdriver to take off the cap.
2. Firstly push the wires through the cap hole
3. Insert the wires into push wire terminals (one in each)
4. Clipped back the cap
It's that simple! But remember once the connection is made the wires are not intended to be removed!
POLMARK E14 lamp holder with shade ring specification
Suitable for: | E14 threaded bulbs |
Current: | 2A |
Voltage: | 250V |
Colour: | White |
Material: | Thermoplastic |
Weight: | 27g |
Storage temperature: | -20~60℃ |
Dimensions: | L27mm x W27mm x H58mm |
Warranty: | 2 years |
POLMARK E14 lamp holder with shade ring package includes
1 x E14 lamp holder
1 x Shade ring
Data sheet
- Type Of Socket
- E14
- Ingress Protection
- IP20
- Model Number
- E.OTE-14-01/0
- Warranty
- 2 years
- Pack Quantity
- 1
- Packaging
- N/A
- Instructions
- N/A
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Bulb Type
- E14
- Class
- Light Socket
