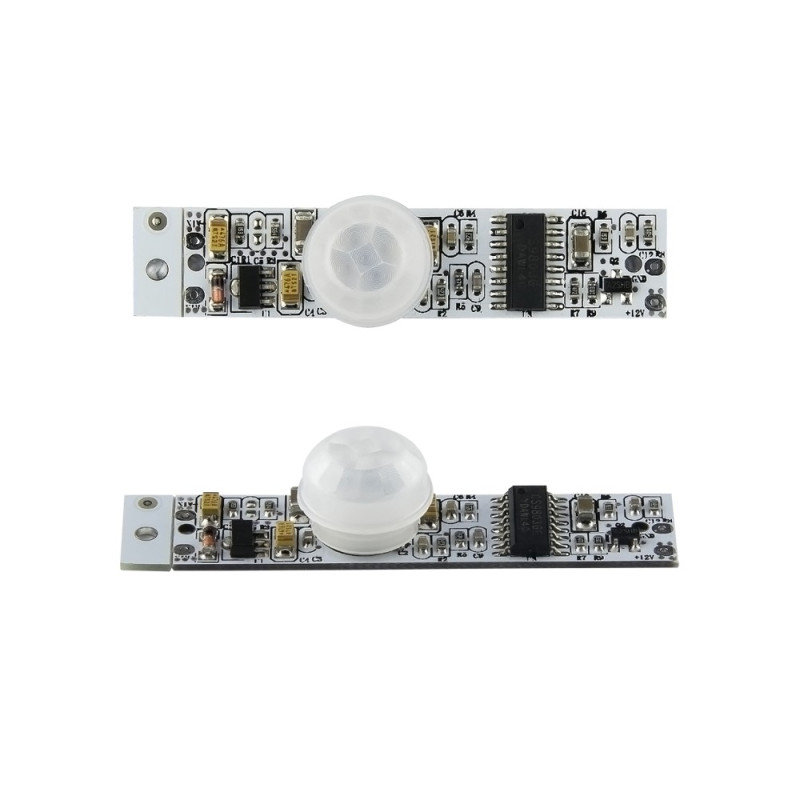

Switch/LED PIR motion sensor for installation in the aluminium profile. Due to its small size, it perfectly fits inside most commercially available aluminium profiles for LED strip. The device works on the principle of the ON/OFF button. When the sensor detects motion activates the receiver for 40 seconds, then it will disconnect. Power max. 20W (voltage 12V)
PIR motion sensor controller ID-2054 specification
Intensity max. 1.66
12 V
Weight 3.2g
The dimensions of 50 mm x 11 mm x 3 mm
Note:
- Before turning on the power, check all the cable connections - possible short-circuit may damage the device. - Supply voltage controller is 12V - if this voltage is exceeded can occur damage.
PIR motion sensor controller ID-2054 installation instructions:
1) Solder the wires to the power supply in the solder pads on the input side (at the sensor) according to the diagram above.
2) Solder the LED strip in the solder pads on the output side. Please pay attention to the polarity (pow scheme.)
3) Stick the tape inside the LED profile. You should remember not to cover the infrared sensor shade.
