To obtain the highest possible level of light parameters in UFOs High Bay as a light source were used LUMILEDS diodes in the version with increased luminous efficiency LUXEON 3030 emitting a stable luminous flux of 24000lm reaching the lighting efficiency of the whole lamp at the level of 120lm/W.

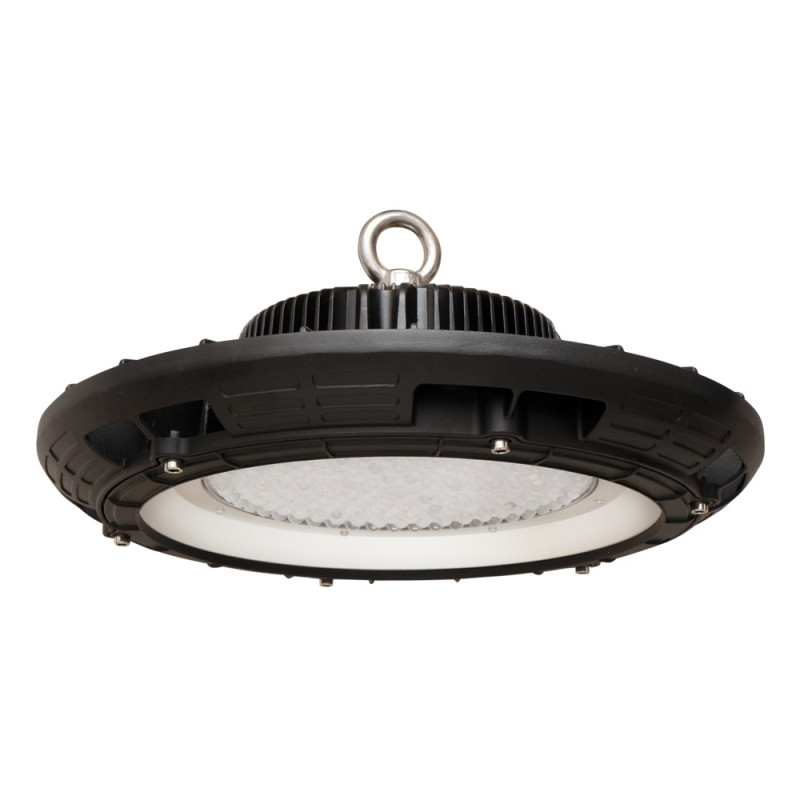

LED line® UFO high bay 200W 24000lm 120° neutral white IP65
High Bay LED 200 Watt industrial hanging lamp, a luminaire that is an alternative to metal halide or sodium lamps. It is used in particular for lighting facilities such as high storage warehouses, production halls, galleries and sports facilities, industrial halls and production lines. LED industrial luminaire High Bay is a product from investment series with increased durability and quality.
To obtain the highest possible level of light parameters in UFOs High Bay as a light source were used LUMILEDS diodes in the version with increased luminous efficiency LUXEON 3030 emitting a stable luminous flux of 24000lm reaching the lighting efficiency of the whole lamp at the level of 120lm/W. Thanks to the use of a high-quality power supply system of the American company EASEIC, the leading manufacturer of power supplies in the world, LED line ® industrial lamps stand out against the competition for an extremely long time of stable and trouble-free operation.
The high quality of the new LED line ® High Bay industrial lamps confirms the IES files that have been made available to clients.
New UFO High Bay lamps are designed for professional applications in large-area rooms, where the basic criterion of choice is quality and reliability. This is provided by a written 5-year warranty.
We recommend the High Bay LED industrial lamp for lighting objects and surfaces where reliability and quality of the product are of key importance. The long service life of these industrial lamps is of key importance in places with difficult access such as warehouses or halls, due to the lack of frequent replacement of bulbs or servicing of fittings.
Characteristics of the construction of the LED HighBay UFO lamp
The main features of the industrial lamp:
Increased life and quality of the LED luminaire
High-performance SMD LUMILEDS LEDs
High class IP65 hermetic
High colour rendering index RA> 70
High power factor PF> 0.95
Aluminium body with a large heatsink
Mounting elements made of stainless steel
High reliability (5-year warranty)
LED line® UFO high bay 200W 24000lm 120° neutral white IP65 specification
Rated voltage | 80-305V AC |
Rated luminous flux | 24000 lumens |
Rated power | 200W |
Light efficiency | 120Lm/W |
The colour temperature of the light | 4000K |
Light colour | Neutral white |
Source of light | LED SMD LUMILEDS diodes |
Luminaire tightness class | IP65 |
Lamp power factor | PF ≥0.95 |
Colour rendering index CRI | RA ≥70 |
Nominal radiation angle | 120° |
Ability to control (dimming) | No |
Fixing the luminaire | Includes ring handle (custom rotary grips or fixed boom) |
The brand of the power supply used | EASEIC |
Housing material | aluminium |
Housing colour | black |
The material of assembly elements | stainless steel |
Illumination time (60%/90%) | < 2 s |
Number of on/off cycles | ≥50000 |
Rated lamp life | ≥50000h |
Mercury content in the lamp [mg] | lack |
Required operating temperature | -30~+50°C |
Dimensions [mm] | 400 x 400 x 176 |
Net weight | 8,3kg |
Declarations/Certificates | CE, RoHS, UL |
Manufacturer's warranty | 60 months (5 years) |
Data sheet
- Rated Power
- 200W
- Light Colour
- Neutral white
- Rated Voltage
- 85-305V
- Luminous Flux
- 24000lm
- CRI
- Ra≥70
- Beam Angle
- 120°
- Lifespan
- 50,000h
- Ingress Protection
- IP65
- Warranty
- 5 years
- Pack Quantity
- 1
- Packaging
- N/A
- Country/Region Of Manufacture
- China
- Class
- LED
- Unit Type
- Unit
