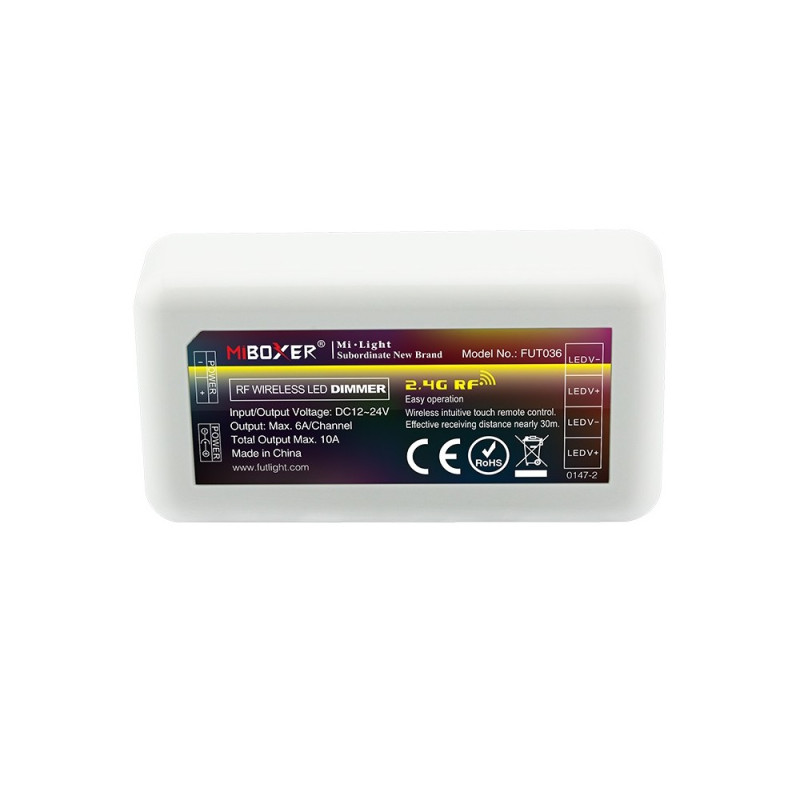

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036
  • Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036
  • Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 - size
  • Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 - connection diagram

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

£12.12
Tax included

Product Name:2.4GHz LED Single Color Dimmer

Model No.: FUT036

Voltage: DC12V-24V

Output: Max. 6A/Channel, Total output Max.10A

Control Distance: 30m

Size: 85*45*22.5mm

Quantity
In Stock

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 size dimensions technical picture

MONO 12-24V DC 10A Mi-Light radio receiver, this is a small size device for controlling single-colour LED lighting. The device is designed to change the brightness of the connected monochrome LED tape by using a suitable dimmer. Connectivity of this device is achieved by radio, it is through it that the receiver communicates with the transmitter. This receiver is compatible with the Mi-light series.

2.4GHz LED single colour dimmer LED strip tape receiver

The remote control or wall panel needs to be purchased separately. For compatible products please see Table 1.

Application for installation

MONO tapes/single colour LED strips

Features of the Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

Application for monochromatic tapes

Communication with the dimming device

Use brightness

Works with Wi-Fi (optional)

Input/output of 12-24V DC range

Multiple receivers can be used in one zone

Maximum current carrying capacity 10A

Small size

The Mi-Light series is characterised by wireless radio communication with a remote control unit or wall panel. The range of this connection is 30 meters in the open area, provided that it is not exposed to various types of interference. Products that are compatible with the FUT036 receiver can be found in Table 1 below.

4-zone single colour LED strip controller

Table 1. Table of product compatibility - Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

Product codeProduct name
FUT005  Mi-Light 2.4GHz 4 zone CCT remote controller FUT005
FUT006  Mi-Light 2.4GHz 4 zone rotating wheel remote controller FUT006
FUT007  Mi-Light 2.4GHz 4 zone CCT remote controller FUT007
FUT091  Mi-Light 2.4GHz dual full touch 4-zone remote controller FUT091
B2  Mi-Light 4-Zone CCT adjust smart panel B2
T2  Mi-Light 4-Zone CCT adjust smart panel remote controller T2
IBOX1  Mi-Light WiFi iBox smart light iBox1
IBOX2  Mi-Light WiFi controller iBox2

The device uses the most advanced technologies. It has a memory function (previous settings will be resumed in the re-supply). With technology 2.4GHz wireless remote control high frequency has the characteristics of low power consumption, long range and has a strong anti-interference ability. The dimmer easily adapts to all types of single colour LED lights 12V-24V

Power supply - connectors for easy assembly

12-24V DC power supply connectors for easy assembply MiLight

Receiver units are supplied with DC voltage of 12VDC or 24VDC, which must be connected to the input of the device. For ease of installation, the receiver design consists of screw terminals, both at the input and the output, which makes it easy to wire the device. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. Wiring is stable and quick to install.

Full control - cooperation with broadcasting equipment

full control 2.4GHz remote controllers compatible with Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

The wireless radio through which the device communicates provides a full palette of control possibilities. Depending on the product, control can be carried out with the help of many available 2.4GHz radio transmitters. This basic form of communication provides stable LED lighting control within 30 meters of the open area. In addition, most of the products can be expanded to include an alternative form of control through the use of a Wi-Fi module that enables the integration of our mobile application with a compatible Mi-Light device. The transmitters that work with your device can be seen above in the table or product specifications.

flame resistant material high-quality PC Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 LED strip connection terminals

Note: For remotely controlling of this Mi-Light controller a remote control is required. Alternatively, a WiFi bridge controller is needed to be able to control by the mobile phone via the free app.

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 specification

Application For single-colour installations
Maximum output current 10A
Input / Output Voltage 12V DC or 24V DC
Number of outputs 2 outputs - common anode
Controlling method Radio
Controlling range up to 30 meters in open area
Model number FUT036
Control frequency 2.4GHz
Output signal PWM
Additional control WiFi box (please see Table 1)
Working temperature -20 – 60℃
Compatible devices Mi-Light products (please see Table 1)
Return to previous settings after power off Yes
Input connector (power supply) Screw terminals for bare wires and DC socket
Output connector (signal) Screw terminals for bare wires
Dimensions[mm] L85 x W45 x H22.5
Certification RoHS, CE
Warranty 2 years

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 retail & wholesale packiging size and colour

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 package includes

1 x LED WW/CW strip dimmer in a retail box

1 x User manual (English)

1 x Double-sided adhesive pad

Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 package contains
P0381
2017-12-03

Data sheet

Rated voltage
12V-24V
Ingress protection
IP20
Model number
FUT036
Certification
CE, RoHS
Warranty
2 years
Light source
LED
Housing colour
White
MPN
FUT036
Pack quantity
1
Packaging
Original retail colour packaging
Country/Region of manufacture
China
Type of material
Plastic
Type of connection
4 Pin
Power source
12V/24V power supply
Connected Home Compatibility
N/A
Connected Home Protocol
N/A
Type
Lighting Remote & Control
Unit type
Unit
New product

Download

CE declaration

Download (611.34k)

User manual

Download (1.69M)
