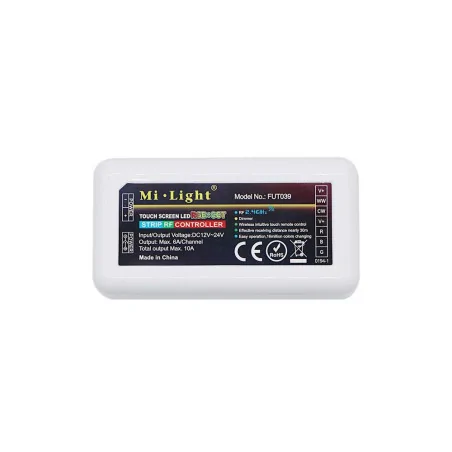

Mi-Light RGB+CCT strip controller FUT039
The FUT039 is a 12-24V RGB+CCT controller with a capacity of 10A. This Mi-Light receiver is a small-sized device used to control RGB+CCT strip lights (multicolour LED lighting with variable colour temperature) with use of remote control or smartphone app (for the smartphone app control the additional iBox1 or iBox2 is required). The controller can change the colours, modes and intensity of the brightness of the connected RGB+CCT LED tape. The device works by using radio waves at 2.4GHz. This LED controller is compatible with the Mi-light series which are listed in the table number 1 below and "must-have accessories" section. The device has 7 screw terminals for LED strip bare connection wires which are marked V+, WW, CW, V+, R, B, G so the controller allows you to connect one RGB+CCT LED strip or two/three LED strips (one RGB + one multi-white CCT strip or RGB + one single colour cold white + one single colour warm white), you can also connect one RGBW strip and one single colour strip to achieve the RGB+CCT effect. As you can see the possibilities are limitless. If you are unsure if the device is right for you, please get in touch.
The remote controller or wall panel needs to be purchased separately.
For compatible products please see Table 1
Application for installation
RGB+CCT multi-colour with variable colour temperature
Features of the Mi-Light 2.4GHz RGB+CCT strip controller FUT039
Application for RGB+CCT tapes (multicolour with variable colour temperature)
Wireless communication with the control unit
Possibility of obtaining any colour
Get control of colour temperature and brightness
Works with Wi-Fi (optional)
Input voltage range 12-24V DC
Use multiple receivers in one zone
Maximum current carrying capacity 10A
The Mi-Light series is characterised by wireless radio communication with a remote control unit or wall panel. The range of this connection is 30 meters in the open area, provided that it is not exposed to various types of interference. Products that are compatible with the FUT039 receiver can be found in Table 1 below.
Table 1. Table of product compatibility – Mi-Light FUT039
|Product code||Product name|
|| Mi-Light smart panel remote controller B0
|| Mi-Light 4 zone RGB+CCT smart panel remote controller B4
||Mi-Light 8-zone smart panel remote controller B8
||Mi-Light 4-zone RGB+CCT smart panel remote controller T4
||Mi-Light RGB+CCT full touch remote controller FUT088
|| Mi-Light 2.4GHz 4 zone RGB+CCT remote controller FUT092
||Mi-Light WiFi iBox smart light iBox1
||Mi-Light WiFi controller iBox2
Power supply - connectors for easy assembly
Receiver units are supplied with DC voltage of 12VDC or 24VDC, which must be connected to the input of the device. For ease of installation, the receiver design consists of screw terminals, both at the input and output terminals, which greatly simplifies the cable entry. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. Wiring is stable and quick to install.
Full control - cooperation with broadcasting equipment
The wireless radio through which the device communicates provides a full palette of control possibilities. Depending on the product, control can be carried out with the help of many available 2.4GHz radio transmitters. This basic form of communication provides stable LED lighting control within 30 meters of the open area. In addition, most of the products can be expanded to include an alternative form of control through the use of a Wi-Fi module that enables the integration of our mobile application with a compatible Mi-Light device. The transmitters that work with your device can be seen above in the table or product specifications.
Great comfort - 16 million colours to drive
The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. Obtaining a given shade of colour depends on the precision of the control, which is usually done with tactile transmitters. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.
Endless possibilities - great functionality
The rapidly evolving technology in the LED industry allows for incredible control and innovative solutions available at any time within the reach of our hands. Devices labelled RGBWW or RGB+CCT allow you to obtain each colour from the RGB palette with colour temperature CCT monochrome LEDs, both warm white and cold white. This solution allows the device to be adapted to the conditions of the room, making the product more practical. Getting these features is incredibly enjoyable, thanks to the well-designed LED drivers that allow you to wirelessly control your LED installation.
Mi-Light RGB+CCT strip controller FUT039 specification
||For multi-colour installations with variable colour temperature RGB+CCT
|Maximum output current
||12V DC or 24V DC
|Number of outputs
||5 outputs (R/G/B/CW/WW)– common anode
||up to 30 meters in open area
||WiFi box (please see Table 1)
||-20 – 60℃
||Mi-Light products (please see Table 1)
|Return to previous settings after power off
|Input connector (power supply)
||Screw terminals for bare wires and DC socket
|Output connector (signal)
||Screw terminals for bare wires
||L85 x W45 x H22.5
Mi-Light FUT039 strip controller package includes
1 x 4-Zone 2.4GHz RGB+CCT Controller FUT039
1 x User Manual (English)
1 x Double-sided adhesive pad
