Mi-Light 2.4GHz gateway WL-Box1

MiBoxer - Alexa

Product Name: 2.4GHz Gateway

Model No.: WL-Box1

Input: DC5V/500mA (Micro USB)

Work Temperature: -20~60℃

Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz

RF: 2.4GHz

Transmitting power: 6dBm

• Compatible with Mi-Light and MiBoxer 2.4GHz RF series product

• Smartphone app control

• Support Third Party Voice Control

works with Amazon Alexa and Google Assistant

Read moreShow less
£24.00 (VAT incl.)
Last items in stock 1 Item
Close
2 Reviews
Condition
New
Reference:
P1524
Brand:
Love2
Add to wishlist
Add to compare0
Description

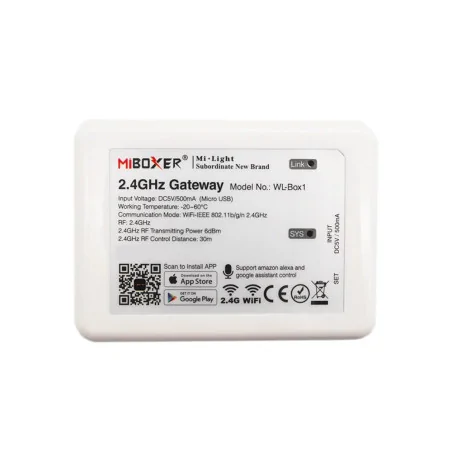

Mi-Light 2.4GHz gateway WL-Box1

Mi-Light 2.4GHz gateway WL-Box1 size of the device
Driver LED Wi-Fi controller - Alexa Google - MiBoxer - WL-Box1 is a module that allows you to obtain wireless control using the Wi-Fi network. Controlled takes place using a free mobile application for mobile devices (e.g. smartphone or tablet) using the Android/iOS operating system. The Wi-Fi module acts as a converter, combining two different types of communication of the MiBoxer series of products. With the help of this device, we can connect the current series of controllers working with the Amazon Alexa and Google Home voice systems, and the older series using the 2.4Ghz radiofrequency. This solution will allow you to control the entire LED installation using one Mi-Light Cloud application and saying appropriate voice commands. It is powered by a micro-USB output.

Mi-Light 2.4GHz gateway WL-Box1 Support third party voice control

First, connect to the internal Wi-Fi network assigned to the WL-BOX1 module and configure it with the installed application. The configured Wi-Fi module allows you to select the interface of the transmitting device from the older Mi-Light series and gain full access to the installation. The communication procedure is included in the user manual
 available in the "Download" tab.
 Mi-Light 2.4GHz gateway WL-Box1 supports third party voice control via amazon alexa or google assistant

Features of the WL-Box1 controller

Adapted to work with Mi-Light series controllers

Obtaining wireless communication via Wi-Fi network

Works with Amazon Alexa and Google Home voice systems

Integration with the Mi-Light series of radio controllers

Compatible with Android/iOS

Each interface available in one application

Free application available for mobile devices

Narrow device housing

Mi-Light 2.4GHz gateway WL-Box1 smartphone app control two-way data communication

The application itself allows you to adapt to the created LED installation by selecting the appropriate graphic interface that is compatible with our LED installation. This means that the functions responsible for the control will depend on the Mi-Light/MiBoxer controller used.

Mi-Light 2.4GHz gateway WL-Box1 full compatibility easy operation

This WiFi bridge is the newest 2.4GHz gateway from the Mi-Light/MiBoxer brand. The WL-Box1 allows controlling via mobile app all the 2.4GHz series from Mi-Light/MiBoxer. The product supports third-party Voice Control via Google Assistant and Amazon Alexa.

Mi-Light 2.4GHz gateway WL-Box1 compatible with 2.4GHz RF series

Mi-Light 2.4GHz gateway WL-Box1 small size beautiful and simple design

Mi-Light 2.4GHz gateway WL-Box1 iOS and Android app available

Mi-Light 2.4GHz gateway WL-Box1 smartphone 4G control at any time and any place

Mi-Light 2.4GHz gateway WL-Box1 timer function settings to switch the lights on and off

Mi-Light 2.4GHz gateway WL-Box1 high-quality material

Mi-Light 2.4GHz gateway WL-Box1 features description

Mi-Light 2.4GHz gateway WL-Box1 retail and wholesale packaging

Read moreShow less
Product Details
P1524

Data sheet

Type Of Socket
Micro USB
Rated Power
2W
Rated Voltage
5V
Features
Wireless
Ingress Protection
IP20
Model Number
WL-Box1
Warranty
2 years
Light Source
LED
Communication Range
30m
Communication Method
Radio
Pack Quantity
1
Packaging
Original retail colour packaging
Country/Region Of Manufacture
China
Type Of Material
Plastic
Colour
White
Design
Rectangle
Current Type
DC
Power Source
USB
Connected Home Protocol
Wi-Fi
Class
WiFi bridge
Unit Type
Unit
Wholesale Box Quantity
100

Specific References

EAN13
6970602180766
MPN
WL-Box1
Shipping Info
Wholesale shipping
