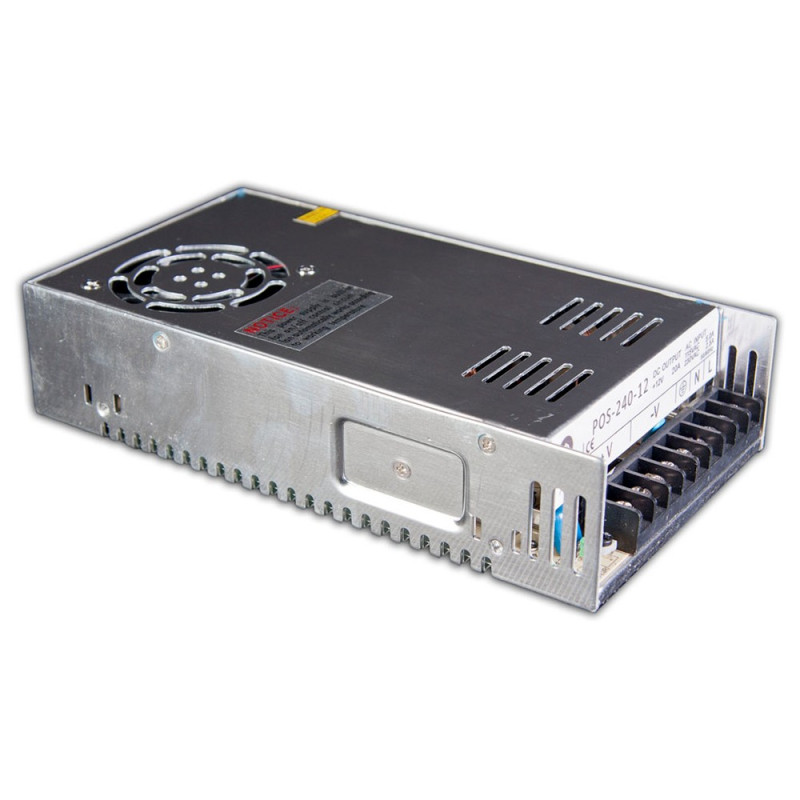

POS modular power supply POS-240-12 240W 20A

£23.64
Tax included

POS modular power supply POS-240-12 240W 20A

Quantity
In Stock

POS modular power supply POS-240-12 240W 20A

LED power supply 12V 240W 20A POS-240-12 is designed for use in industrial automation systems, machine control, it is also used in industrial electronics. It has a number of protections such as short-circuit and overload protection. Power supplies of this group are the best value for money. Please take a look at our vast range of power supplies.

Features of the POS modular power supply POS-240-12 240W 20A

Power supply with rated voltage of 12V

Output current: 20A

Rated power: 240W

Universal input voltage range (88 ÷ 132VAC or 180 ÷ 264VAC selectable via switch)

Adjustable output voltage

Protection: Short circuit/overload

Cooled by free air

Tested under full load

Efficiency of 81%

Reliability and long service life

Meets a number of safety standards and electromagnetic compatibility EMC

24 months warranty

POS modular power supply POS-240-12 240W 20A specification

Rated output voltage (V) 12V
Rated output power (W) 240W
Rated output current (A) 20A
Starting current (max.) 30A / 115VAC; 60A / 230VAC (cold start)
Power input from 5A / 115VAC; 2.5A / 230VAC
Efficiency 81%
Frequency range of input voltage 47 ÷ 63Hz
Input voltage range 88 ÷ 132VAC or 180 ÷ 264VAC selectable via switch
Voltage regulation range 10.8 ÷ 13.2V
Tolerance ± 6.0%
Ripple and noise 180mVP-P
Output current range 0 ÷ 20A
Short-circuit protection Type: Output voltage cut-off. Automatic return to normal operation after the cause disappears.
Overload protection Range: 110 ÷ 150% of rated power
Ambient humidity 20 ÷ 90% relative (non-condensing)
Operating temperature  -5 ° C ÷ + 45 ° C
I / O strength:  3kVAC, WE / HOUSING: 1.5kVAC, OUTPUT / OUTPUT: 0.5kVAC
Storage temperature and humidity -20 ° C ÷ + 80 ° C; 10 ÷ 95% relative (non-condensing)
Vibration resistance 10 ÷ 500Hz, 2G, 12min / periodically for 30min. along the X, Y, Z axis SAFETY STANDARDS
Safety standards EN60950-1
Conducted and radiated disturbances – EMI EN55022
Resistance – EMS EN61000-4-2, -4, -5, -11
Dimensions (L * W * H) 215mm * 115mm * 51mm
Weight 0.88kg
Warranty period: 24 months

Connection: L, N: AC power input GND: Ground/Line Earth input V-: DC power output “-” V+: DC power output “+” V / ADJ: Adjust the output voltage

 To avoid overheating and gain a long service life, we suggest users use 80% of the full load at most, for example, if the load is 200W, please use a 240W power supply.

LED strip support table

 SMD 3528SMD 3528SMD 5050SMD 5050
Power 60 LEDs/m 120 LEDs/m 30 LEDs/m 60 LEDs/m
12W 2.5 meters 1.2 meters 2.0 meters 1.0 meters
24W 5.0 meters 2.5 meters 4.0 meters 2.0 meters
36W 7.5 meters 3.7 meters 6.5 meters 3.0 meters
48W 10.0 meters 5.0 meters 8.5 meters 4.0 meters
60W 12.5 meters 6.2 meters 11.0 meters 5.5 meters
120W 25.0 meters 12.5 meters 22.0 meters 11.0 meters
180W 37.5 meters 18.7 meters 33.0 meters 16.5 meters
300W 62.5 meters 31.0 meters 55.0 meters 27.0 meters
400W 83.0 meters 41.0 meters 73.0 meters 36.0 meters
500W 104.0 meters 52.0 meters 91.0 meters 50.5 meters
Special Note
Professional installation of a qualified electrician is highly recommended.

POS modular power supply POS-240-12 240W 20A package includes
1 x 240W POS power supply

P0638
2017-12-04

Data sheet

Rated power
240W
Rated voltage
12V
Features
Non-dimmable
Ingress protection
IP20
Certification
CE, RoHS
Warranty
2 years
MPN
Does not apply
Pack quantity
1
Packaging
White cardboard box
Country/Region of manufacture
China
Application
Internal use in a dry place
Unit type
Unit
New product
