Mi-Light dual white panel light control system LS3
Dual White panel light controller is a newly developed high-end controller, controlled by a wireless remote controller, also with smartphone control and 4G long-distance control (need WiFi iBox). The controller has an auto-transmitting function and with CCT and Brightness output mode. This controller adopts the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference, etc. One compatible remote control many controllers at the same time. Widely used for the controlling of hotel lighting and home lighting.
The remote is not included and needs to be purchased separately. For compatible products please see Table 1.
Application for installation:
Multi white - dual white LED strips
Features of the Mi-Light LS3 receiver
Application for DUO installation
Radio signal extension (signal retransmission)
Shared synchronization of devices in the installation
Input voltage range DC 42V~45V
Output voltage range DC 30V~40V
Wireless communication with remote control
Additional potential-free input
Works with Wi-fi (optional)
Possibility of creating a very large LED installation
The type of communication that connects the transmitter to the receiver is via radio. 2.4GHz frequency-based signal, allowing for 30m wireless operation in open areas. With more devices (receivers), we can create LEDs based on unlimited coverage, thanks to signal retransmission technology. The condition of this work is to place another receiver within 30 meters. Products that work with the Mi-Light LS3 receiver are listed in the following Table 1.
Table 1. Compatible devices with Mi-Light dual white panel light control system LS3
|Product code||Product name|
||Mi-Light 2.4GHz 4 zone rotating wheel remote controller FUT006
||Mi-Light 2.4GHz 4 zone CCT remote controller FUT007
||Mi-Light 2.4GHz dual full touch 4-zone remote controller FUT091
||Mi-Light 4-zone CCT adjust smart panel B2
||Mi-Light 4-zone CCT adjust smart panel remote controller T2
||Mi-Light WiFi iBox smart light iBox1
||Mi-Light WiFi controller iBox2
Auto voltage correction - precision in operation
After connecting to the power supply, press "Auto adjust (LED VF)" button to correct the voltage automatically.
Transmission - transmitting radio signal

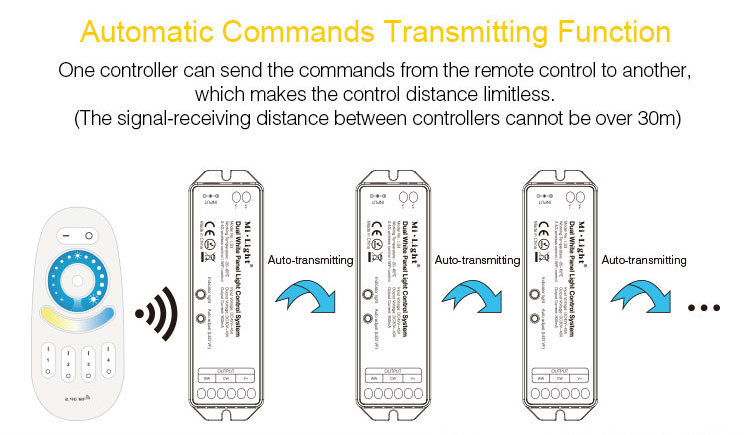

Increasing the radio signal in the installation is possible with the use of several receivers. These devices are characterised by the transmission of the received signal to the next device, thereby increasing the range of control of the LED installation (distance between receivers cannot be more than 30m).
Power supply - connectors for easy assembly
Receiver units are supplied with DC voltage of 42VDC or 45VDC, which must be connected to the input of the device. We suggest buying MEAN WELL LPC-60-1400 42V AC to DC power supply. For ease of installation, the receiver design consists of screw terminals, both at the input and the output, which makes it easy to wire the device. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. Wiring is stable and quick to install.
Mi-Light dual white panel light control system LS3 specification
||DUO - dual white LED strips
|Input voltage of the receiver
||42V DC or 45V DC
|Output voltage of the receiver
||30V DC or 40V DC
||up to 30 meters in an open area (possibility of signal extension by signal retransmission)
||-20 – 60℃
|Return to previous settings when power is off
||See ,,Product description table 1"
||L124 x W38 x H23
Mi-Light dual white panel light control system LS3 package includes
1 x Mi-Light radio receiver LS3
1 x User Manual (English)
