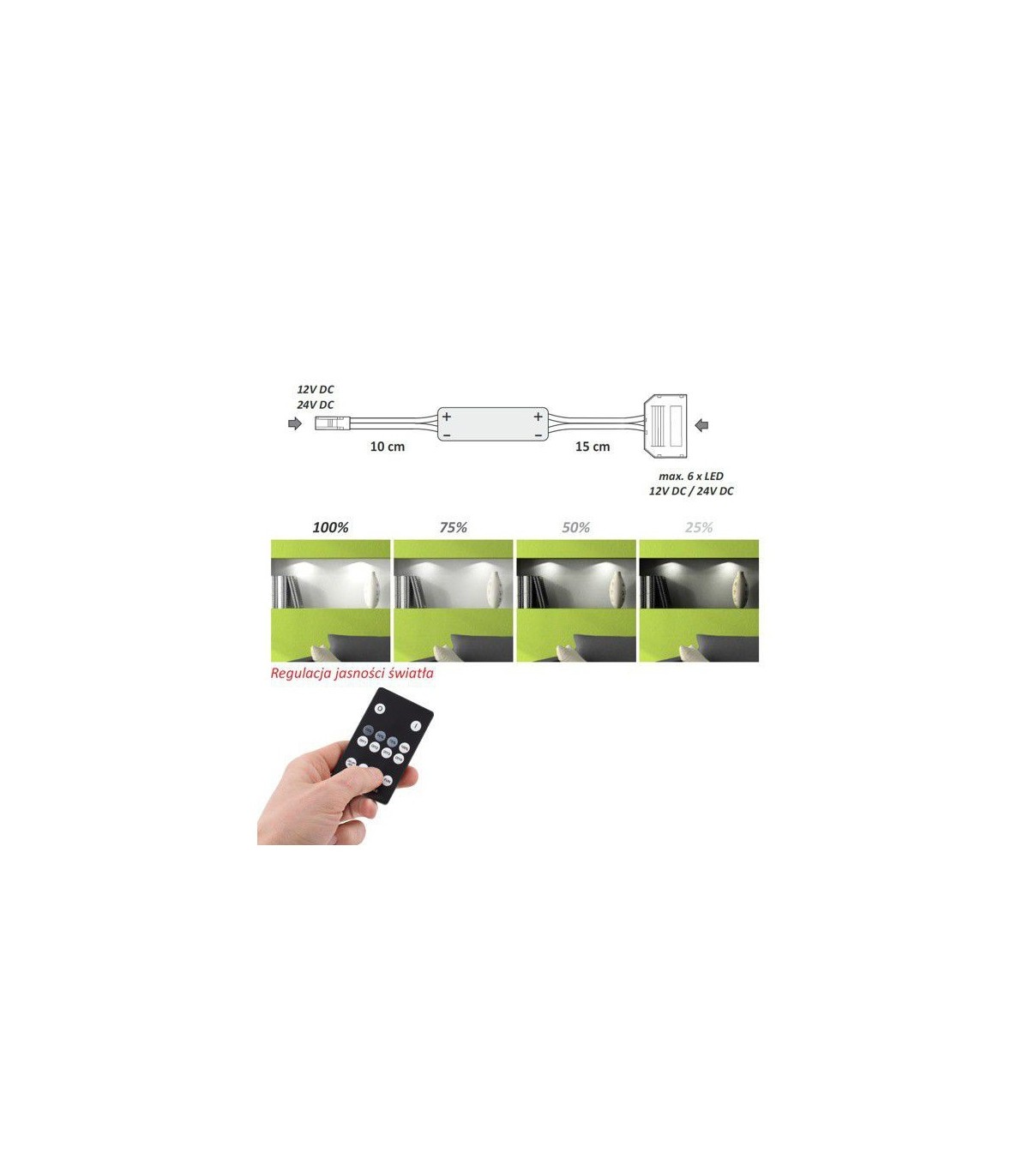

Design Light single colour RF controller 36W 12-24V

DESIGN LIGHT single colour RF controller 36W 12-24V 6-way splitter

Product Name: 2-Pin 12-Channel Junction Box

Model No.: DS2-12C

lnput Voltage: DC24V

Output Current: Max 7A

Working Temp: -10~40°C

Material: ABS

Cable Length: 1m

• 12-Channel Dupont connector

• Multi ports for using, signal transmitting quickly and smoothly

• Max current 7A, ABS plastic enclosure, portable wiring

Light colour: warm white, neutral white, cold white

Voltage: 24V DC

Colour temperature of the light: 3000K, 4000K, 6000K

Luminous flux: 660LM/m    2900LM/5m 760LM/m    3300LM/5m 805LM/m    3520LM/5m

Power (meter): 11W

LED type: COB

Amount of LEDs: 312 LEDs/m

Lighting angle: 120°

Cutting section: 38.5mm

The degree of protection: IP20

Sold per: pack (5m)

LRS-35-24 35W Single Output Switching Power Supply

LRS-50-24 50W Single Output Switching Power Supply

LRS-75-24 75W Single Output Switching Power Supply

LRS-100-24 100W Single Output Switching Power Supply

LRS-150F-24 150W Single Output Switching Power Supply

LRS-150-24 150W Single Output Switching Power Supply

LRS-200-24 200W Single Output Switching Power Supply

LRS-350-24 350W Single Output Switching Power Supply

Product Name: 6W RGB+CCT LED Downlight (2.4GHz)

Model No.: FUT068-B

Input Voltage: AC100~240V 50/60Hz

Power: 6W

PF: >0.5

CRI: >80

Colour Temperature: 2700K~6500K

Luminous Flux: 600LM

Luminous Efficiency: 85LM/W

Beam Angle: 120°

Communication Protocol: 2.4GHz RF

Control Distance: 30m

IP Rate: IP20

Working Temperature: -20~60°C

Hole Size: Φ90~95mm

Material: Aluminium + PC Cover

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• Saturation adjustable

• Remote Control Distance 30m

• Signal transmitting & Modes synchronization

Name: 2 Wires COB CCT Strip Light

Model No.: CSL2N2WH

Input Voltage: 24V⎓

Power: 8W/m, 31W/5m

Luminous Flux: WW:430LM/m, 1890LM/5m

CW: 530LM/1m, 2320LM/5m

LED Chip Specification: COB Chip

LED Chip QTY: 120 LED / m

Colour Temperature: 2700K~6500K

CRI: >90

Board Material Copper Thickness: 2.5 oz (Front 1 oz, Back 1.5 oz)

LED Strip Width: 5mm

Tailor Length: Min 20mm

IP Rate: Non-waterproof IP20

Beam Angle: 120°

Warranty: 2 Year

Packing: 5m per roll

Extendability: Max 10m

• Safe voltage 24V⎓

• High CRI

• Best ability for heat dissipation and low luminous decay

Product Name: 3 in 1 LED Strip Controller (Zigbee 3.0+ 2.4G)

Model No.: FUT037Z+

Working Voltage: DC12~24V

Output: 6A/Channel

Total Output: Max 12A

Work Temperature: -10~40℃

Wireless Technology: Zigbee 802.15.4

Zigbee Wireless Frequency: 2.400-2.480GHz

Zigbee Control Distance: 100m (open area)

2.4G RF Remote Control Distance: 30m

• Product follows Zigbee 3.0 standard protocol

• Zigbee Control distance: 100m (open area)

• Compatible with Mi-Light/MiBoxer 2.4GHz series remote

• 2.4G RF Remote Control Distance: 30m

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)
