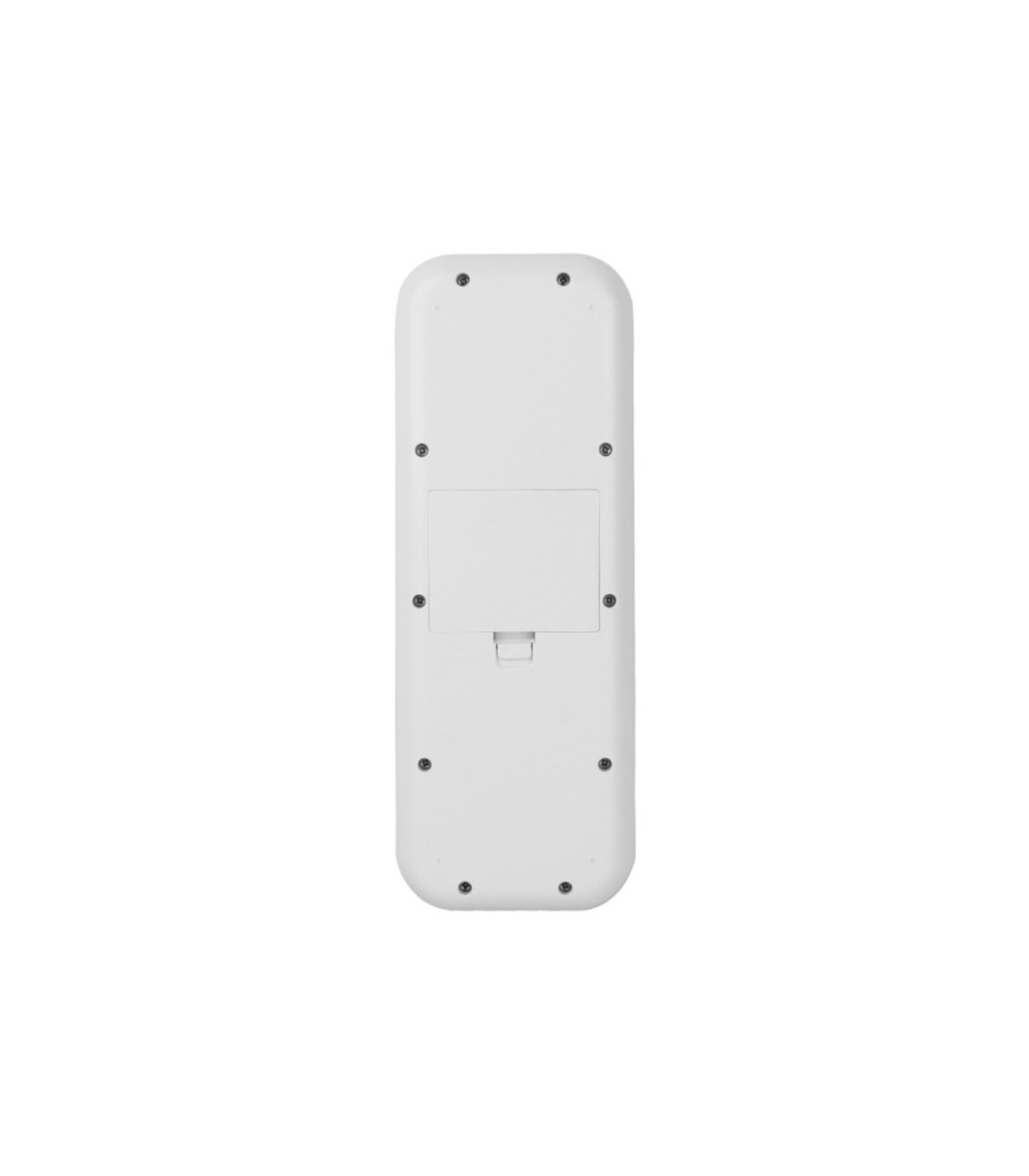

Mi-Light 2.4GHz remote control for LED track light FUT090
Mi-Light multifunctional radio remote controller is a device that allows wireless control of up to 99 zones using a compatible radio receiver. The Mi-Light LCD display provides easy access to the zone, allowing you to change the brightness CCT colour temperature, or any RGB colour or RGBW colour.
One of the most important features of this system is the ability to handle almost every installation (MONO/CCT/RGB/RGBW) with the help of one remote control. Up to now, for mixed installations in monochrome and RGB environments, separate sets have to be used for each. Using this remote control with LS1 receiver, you can control almost any installation by programming the LS1 receiver correctly.
Receiver (s) must be purchased separately. For compatible receivers please see the compatible MiBoxer products tab.
Application for installation:
MONO - one colour CCT - with variable colour temperature
RGB - multicolour
RGB+W - multicoloured with extra white
RGB+CCT - multicolour with variable colour temperature (in this case two separate receivers are required)
Remote features - FUT090:
Controls up to 99 zones
Dimming and lighting up
Change the colours available from the RGB colour palette (RGB installation)
Changing colour temperature CCT (CCT installation)
Saturation change (RGB or RGB+W installation)
Immediate reduction of brightness (night mode)
Writing / calling favorite sequences / colors
Enables or disables all zones simultaneously
Single zone control
Control of selected groups in zones
Get different dynamic programs available (change mode/speed)
Edit at any time assigned to the zone receiver
Automatically sleeps the remote control in the event of inactivity
Touchpads and buttons
Remote control features - FUT090:
One remote for most installations (MONO/CCT/RGB/RGB+W/RGB+CCT)
Works with Wi-Fi controller (see the compatible MiBoxer products tab)
Battery-powered 3 x 1.5V AAA (not included)
Radio communication with receivers
Free movement around the zones
Illuminated LCD display
Touch buttons
24 months warranty
The type of communication that connects the transmitter to the receiver is via radio. A signal based on 2400-2483.5 MHz frequencies allows for 30 meters of wireless operation in open terrain. With more devices, we can create LEDs based on unrestricted coverage, thanks to signal retransmission technology. The condition of this work is to place another receiver within 30 meters. Products that work with the FUT090 remote control are listed in the compatible MiBoxer products tab.
Table 2. Dynamic programs for the Mi-Light remote - FUT090
| Number | for MONO/CCT installation | for RGB/RGBW installation | Change speed | Change brightness |
|---|
| 1 | Smooth dimming/brightening of white colour | Smooth transition between all colours | Possible | Possible |
| 2 | Steps to dimming / brightening white colour | Smooth pulsation of white colour | Possible | Possible |
| 3 | Fast white flashes | Smooth transition between RGB colours | Possible | Possible |
| 4 | White colour pulses complete with triple flashing | Seven colour changes | Possible | Possible |
| 5 | None | Random pitch change | Possible | Possible |
| 6 | None | Red colour pulses finished with triple flash | Possible | Possible |
| 7 | None | Green colour pulses finished with triple flash | Possible | Possible |
| 8 | None | Blue fluorescence finished with triple flash | Possible | Possible |
| 9 | None | White colour pulses finished with triple flash | Possible | Possible |
Remote construction - remote control has not been so easy
Illuminated LCD screen - a preview of driver parameters
The information available from the display:
1. Nr. currently operating zone (1-99)
2. Nr. the currently operating device in the zone or zones (0-9999)
3. Information on the selected RGB colour
4. Information about the illumination in the currently operating zone
5. Colour temperature information
6. Saturation level information
7. Battery level information
8. No battery level information
9. Information no. dynamic program
10. Favourite sequence information
Automatic synchronisation - precision in operation
When more than one receiver is controlled by one transmitting device, the installation is synchronized during operation without causing delays during operation.
Transmission - transmitting radio signal
Increasing the radio signal in the installation is possible with the use of several receivers. These devices are characterised by the transmission of the received signal to the next device, thereby increasing the range of control of the LED installation (distance between receivers cannot be more than 30m).
Mi-Light 2.4GHz remote control for LED track light FUT090 specification
| Application | for MONO/CCT/RGB/RGB+W |
| Number of zones/channels supported | 99 |
| Control method | Touch buttons + colour change disc |
| Powered by | 3 x 1.5V AAA battery |
| Controlling method | Radio |
| Controlling range | up to 30 meters in an open area (possibility of signal extension by signal retransmission) |
| Model number | FUT090 |
| Control frequency | 2400-2483.5 MHz |
| Transmission type | Bi-directional |
| Power consumption | 6dBm |
| Colour | White |
| Product compatibility | See the compatible MiBoxer products tab |
| Ingress Protection | IP20 |
| Dimensions[mm] | L195 x W72.8 x H18.4 |
| Certification | RoHS, CE |
| Warranty | 2 years |
Mi-Light 2.4GHz remote control for LED track light FUT090 package includes
1 x RF Wireless Radio LED - 99 zones - Mi-Light - FUT090
1 x User's Guide
