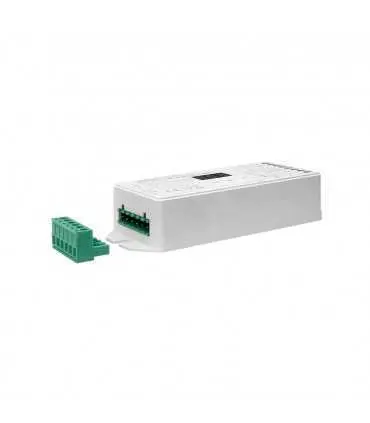

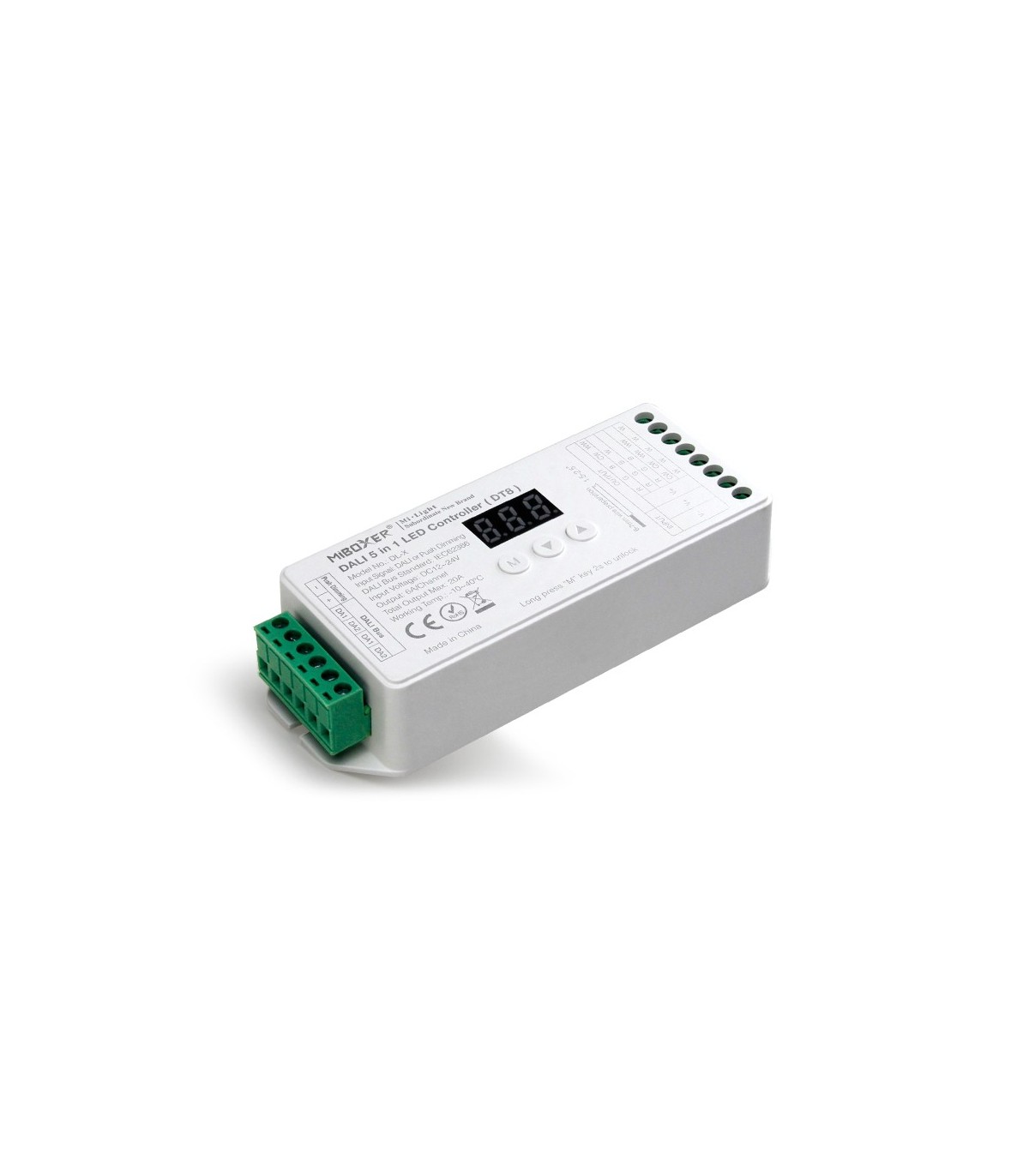

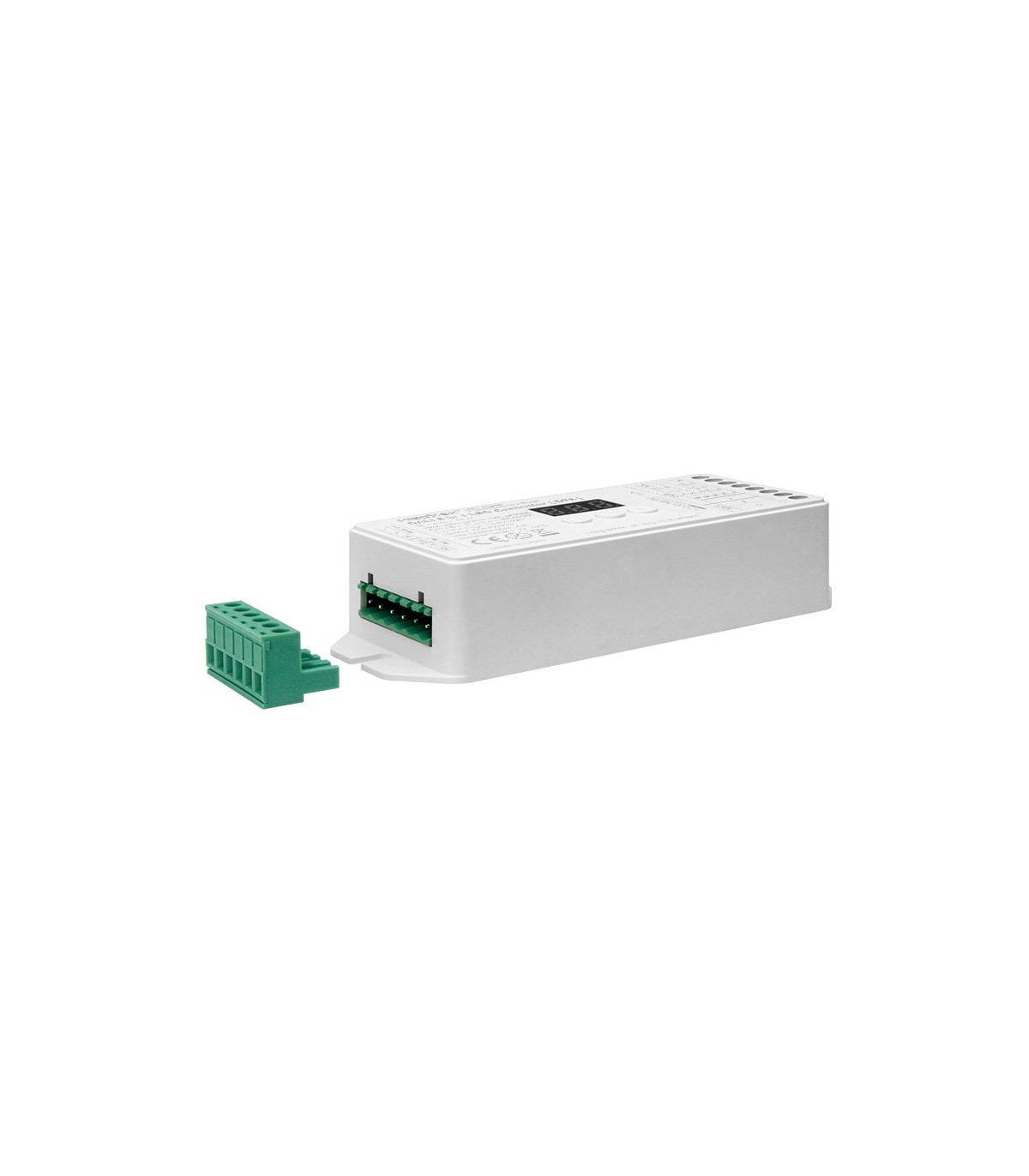

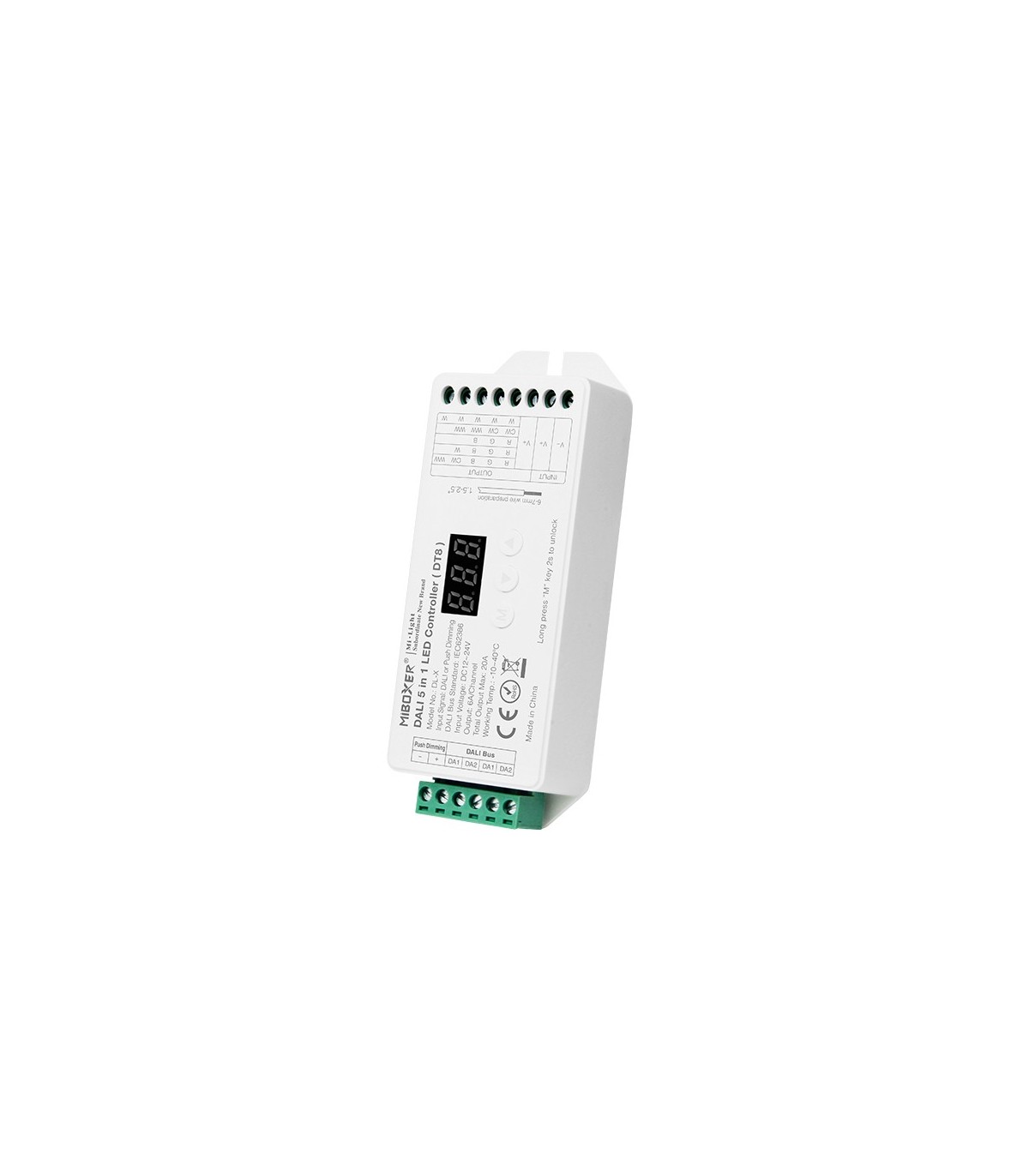

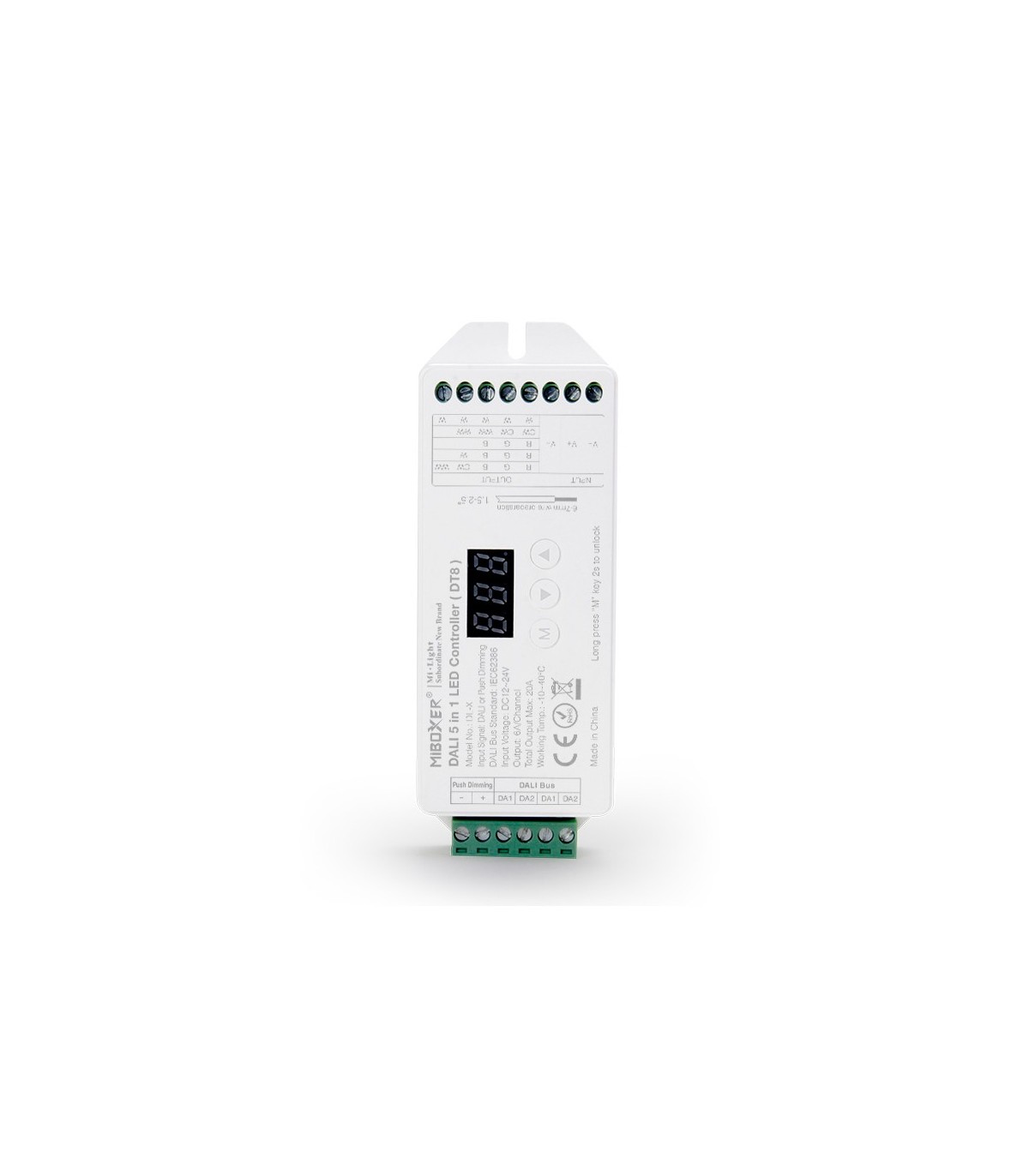

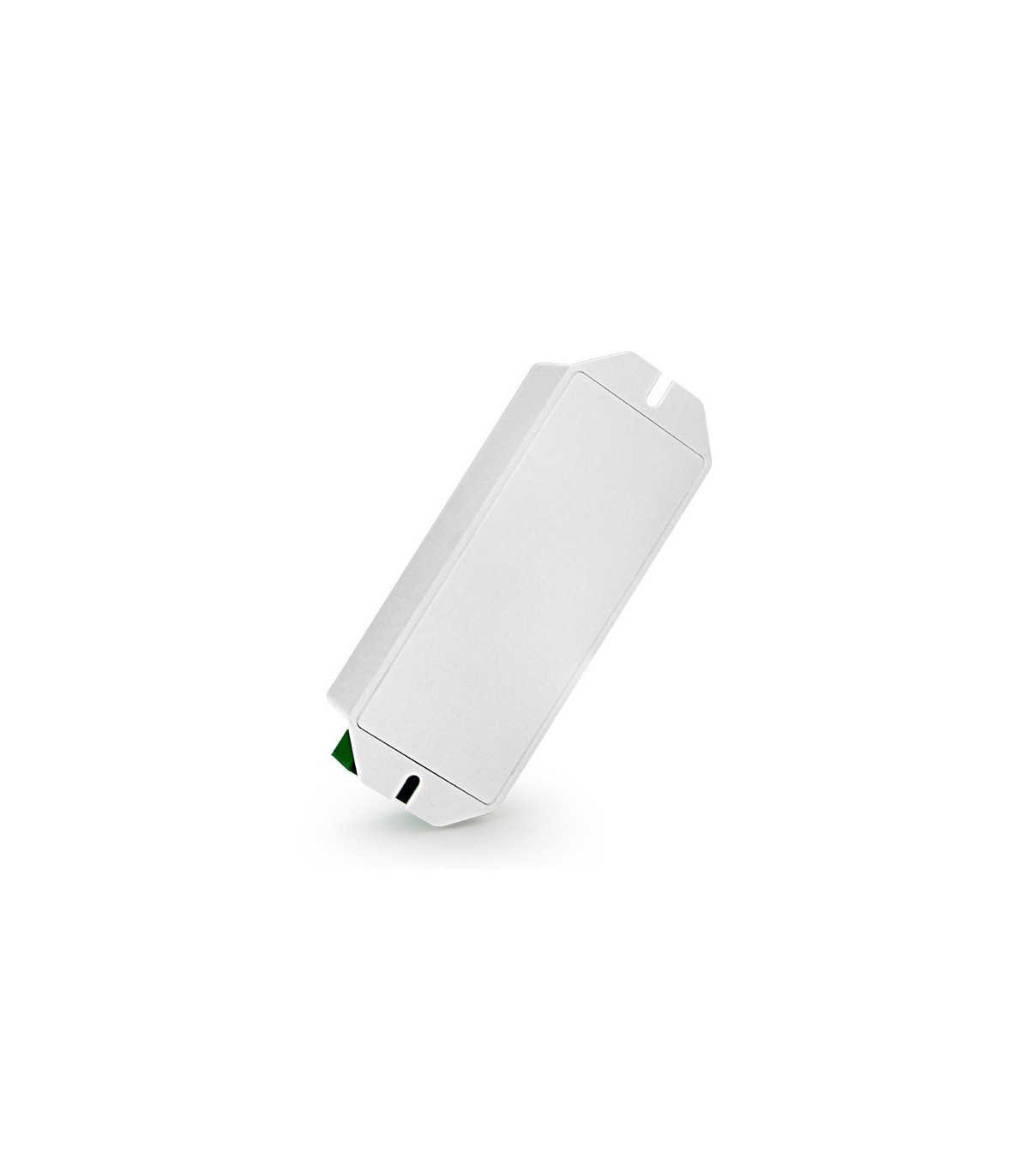

MiBoxer DALI 5 in 1 LED controller (DT8) DL-X

Product Name: DALI 5 in 1 LED Controller ( DT8 )

Model No.: DL-X

Input Signal: DALI Signal or Push Dimming

DALI Bus Standard: IEC62386-102,207,209

Input Voltage: DC12~24V

Output: 6A/Channel

Total Output Max: 20A

Working Temperature: -10~40°C

• Support DALI standard protocol IEC62386-102, 207, 209

• Support DT8 type TC, xy coordinates, RGBWAF

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• 5 output mode (Single colour/Dual white/RGB/RGBW/RGB+CCT)

Read moreShow less
£32.40 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Close
Condition
New
Reference:
P2158
Brand:
Love1
Add to wishlist
Add to compare0
Description

MiBoxer DALI 5 in 1 LED controller DL-X

LED 5in1 receiver - MONO/CCT/RGB/RGBW/RGB+CCT - 12-24V DC 15A - DALI - Type DT8 - DLX, is a product that allows wireless control of LED lighting. The device has been designed in such a way that it can be used with the DALI control system. Depending on the operating mode, the device can work with monochrome and multicolour lighting (RGB/RGB+W and RGB+CCT). Communication is via a wired network connected to the main DALI bus that is synchronized with each other with various transmitting devices such as wall panels. It is characterized by a built-in LED display on the back of the housing that allows for a smooth transition between 256 addresses.

One of the most important features of this receiver is the possibility of using it for any installation (MONO/CCT/RGB/RGBW/RGB+CCT). Until now, in the case of mixed installations in rooms, e.g. monochrome and RGB, separate sets for each of them had to be used. The use of the controller with the DLX receiver allows you to control each installation by programming the DLX receiver.

Application for installation:

MONO - single-colour

CCT - with variable colour temperature

RGB - multicoloured

RGB+W - multicoloured with an additional white colour

RGB+CCT - multicoloured with variable colour temperature

DALI - based on the DALI system

Features of the DLX receiver - MiBoxer

Application for MONO/CCT/RGB/RGB+W/RGB+CCT installations

Wired connection using the DALI signal

It uses the IEC62386-102, 207, 209 standards for communication

Built-in LED display

A range of built-in security features

Common synchronization of devices in the installation

Input / output voltage range 12-24V DC.

Maximum current carrying capacity 15A

Possibility to create a very large LED installation

MiBoxer DALI 5 in 1 LED controller (DT8) DL-X specification

Application MONO/CCT/RGB/RGB+W/RGB+CCT
Input/output voltage of the receiver 12V DC or 24V DC
Maximum output current 20A
Number of outputs of the receiver 5 outputs (R/G/B/CW/WW)
Controlling method wired (DALI)
Model number DL-X
Working temperature -20 – 60℃
Input connector (power supply) Screw terminals for bare wires
Output connector (terminal) Screw terminals for bare wires
Colour White
Product compatibility See the compatible MiBoxer products tab
Ingress Protection IP20
Dimensions[mm] L130 x W49 x H27
Certification RoHS, CE, UKCA
Warranty 2 years

MiBoxer DALI 5 in 1 LED controller (DT8) DL-X package includes

1 x 5 in 1 LED controller DL-X in a retail packaging

1 x User Manual (English)

Read moreShow less
Product Details
P2158

Data sheet

Rated Power
180W/360W
Light Colour
CCT
MONO
RGB
RGB+CCT
RGBW
Rated Voltage
12V
24V
Ingress Protection
IP20
Model Number
DL-X
Certification
CE
RoHS
Warranty
2 years
Light Source
LED
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Plastic
Colour
White
Current Type
DC
Class
LED/RGB Controller
Unit Type
Unit
Output Voltage
12V
24V
Installation Area
Indoor
Control Style
App Control
Remote Control
Item Length
130mm
Item Width
49mm
Item Weight
0.120kg
Item Height
27mm
Mounting
Free Standing
Wholesale Box Quantity
100

Specific References

EAN13
6970602181343
MPN
DL-X
