Type: Low voltage USB LED strip
Application: TV backlighting
Light colour: Neutral white, CCT (multi-white), RGB (multi-colour), RGBWW (multi-colour + warm white)
Voltage: 5V DC
Type of connection: USB plug
Luminous flux: 1m = 240lm, 2m = 480lm
Power (meter): 1m = 4,8W, 2m = 9,6W
LED type: SMD5050
Amount of LEDs: 1m = 20 LEDs, 2m = 40 LEDs
Lighting angle: 120°
Cutting section: every 5cm
Width of the strip: 10mm
Length of the cable: 80cm
Type of control: built-in mini controller (3-button)
The degree of protection: IP33 (non-waterproof)
Sold per: pack (1m/2m on a roll)

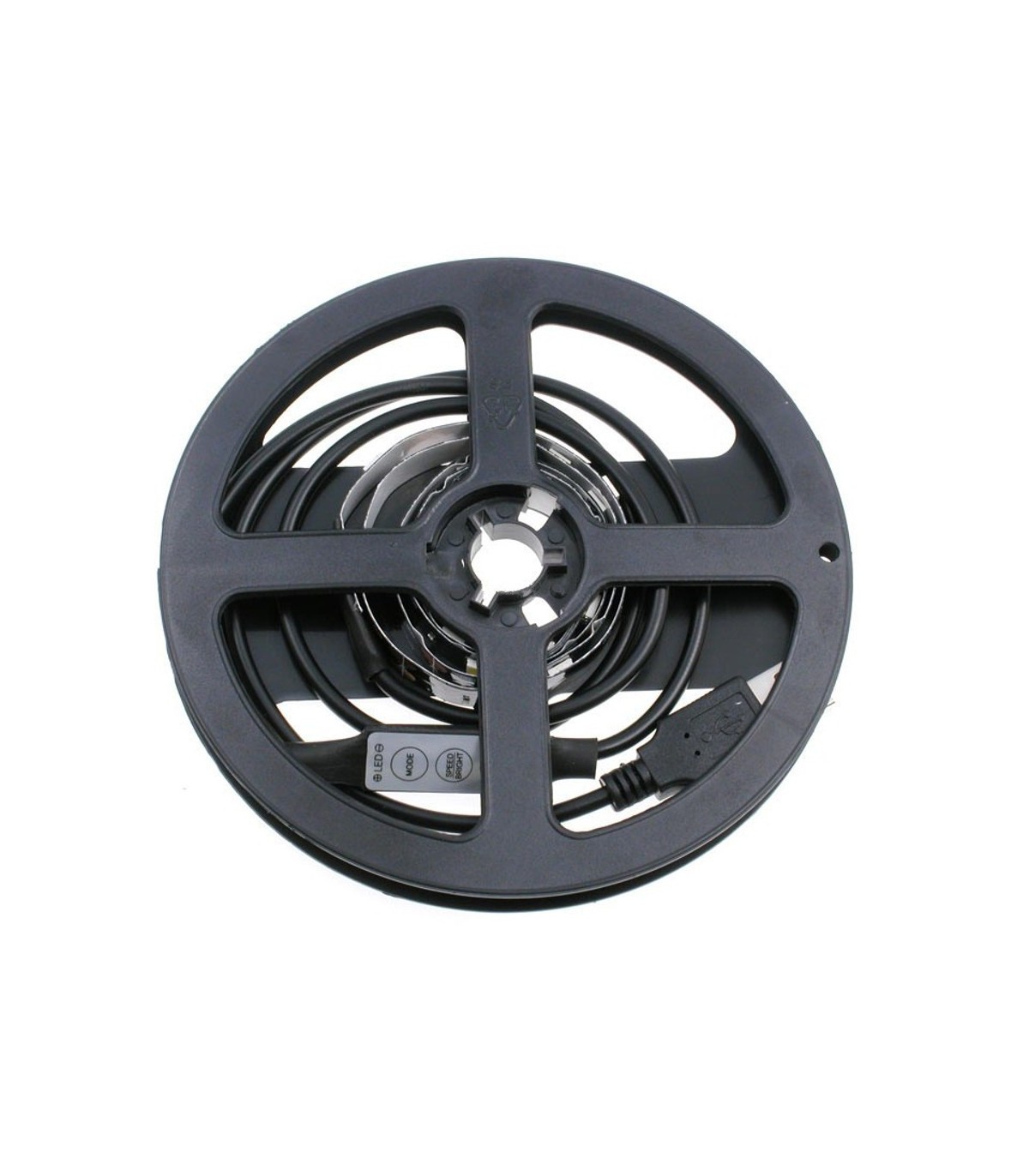

LED strip light 5050 USB mini controller IP33
LED-USB-5050 tape is a LED strip with a power of 4.8W and a length of 1m or 2m equipped with a ready-made USB power connector so that you can easily power the tape to do this, connect the tape to any device with a USB port, eg TV, computer, USB network adapter, car adapter. The product has a dimmer built in the mini cable. The LED strip is primarily characterized by high flexibility, so it can be used in places where the installation of other light sources is difficult, which is why it is one of the simplest ways to effectively illuminate various types of exhibitions, shelves, cabinets or multimedia entertainment equipment (TV backlighting). The bottom of the tape is covered with a black substrate with double-sided adhesive tape, which streamlines the assembly process. It is also possible to cut the tape to the required length. This operation is facilitated by specially printed scissors icons, thanks to which we will not accidentally damage the tape.
MAIN FEATURES OF THE PRODUCT
The strip is terminated with a USB male connector
The mini controller is mounted in the wire
Many colours to choose
Black substrate covered with double-sided adhesive tape
Powered directly by laptop, TV, etc.
LED strip light 5050 USB mini controller IP33 specification
Product type | USB LED strip |
Model | LED-5050-USB |
Power consumption | 4,8W |
Number of LEDs | 20 LEDs type 5050 |
Light colour | Neutral white, CCT (multi-white), RGB (multi-colour), RGBWW (multi-colour + warm white) |
Power supply | 5V (USB) |
The length of the strip | 1m, 2m |
The width of the strip | 10mm |
Degree of protection | IP33 (non-waterproof) |
The warranty period | 24 months |
Additional features | Mounted mini controller - dimmer in the cable |
The tape is made of high-quality materials, ensuring its long life and satisfaction with the purchase. When buying from us you get a new, originally packed product, covered by a 2-year manufacturer's warranty. Only the purchase of branded products guarantees high quality, energy efficiency, the safety of use and the certainty that the information on the packaging will be true.
Additional information
Voltage (power) [V] | 5V |
---|---|
Length of the strip (cm) | 100, 200 |
Power / 1 m [A] | 4.8 |
Luminous flux / 1 meter [lm] | 240 |
Light colour | Neutral white, CCT (multi-white), RGB (multi-colour), RGBWW (multi-colour + warm white) |
Number of LEDs / 1 m | 20 |
Type of LED | 5050 |
Width of the strip [mm] | 10mm |
Degree of protection | IP33 (non-waterproof) |
The method of attachment | Double-sided tape |
Colour temperature [K] | 4500 (for Neutral White) |
Cooperation with dimmer | Yes |
CRI colour rendering index [Ra] | RA> 80 |
Lifetime (hours) [h] | 50,000 |
Certifications | CE, RoHS |
Warranty | 2 years |
Data sheet
- Rated Power
- 4.8W
9.6W
- Light Colour
- CCT
Neutral white
RGB
RGBWW
- Rated Voltage
- 5V
- Features
- Dimmable
- Lifespan
- 50,000h
- Ingress Protection
- IP33
- Warranty
- 2 years
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Country/Region Of Manufacture
- China
- Colour Temperature
- 4500K
- LED Chip Code
- 5050
- LED Strip Width
- 10mm
Specific References
- ean13
- 0000000000227
- mpn
- P0802
