Product Name: 5-Channel Constant Voltage DMX512 & RDM Decoder
Model No.: D5-CX
Input Voltage: DC12~24V
Output Current: 4A/Channel
Total Output Current: Max 20A
Input Signal: DMX512, RDM
Occupy 5 DMX Address
Working Temp.: -20~60℃
Product Name: DMX512 Master (RGB+CCT)
Model No.: X5
Input Voltage: AC100~240V 50/60Hz
Output: DMX512 + 2.4GHz Wireless
RF Transmitting Power: 6dBm
RF Control Distance: 30m
Working Temp.: -20~45°C

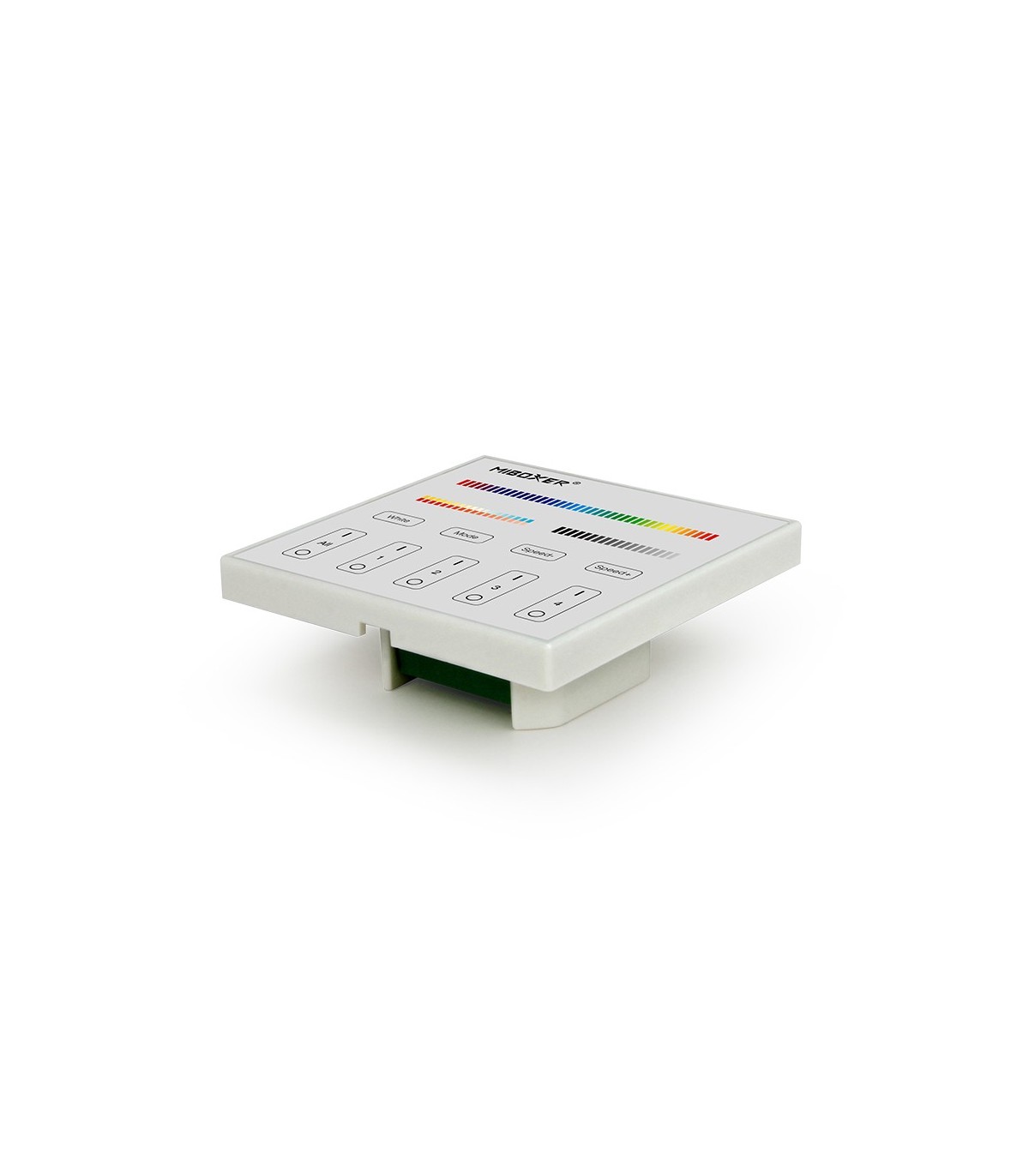

The LED wall panel - RGB+CCT - 4 zones - DMX512 - X5, is a wired wall panel that allows you to manage brightness and colour temperature with the possibility of controlling a given RGB colour for devices adapted to multi-colour installations with variable RGB+CCT colour temperature using a signal based on the system DMX512 communication control. The wall panel is powered directly from the 230VAC network. Each of the available zones has fixed communication addresses for individual R/G/B/CW/WW channels, which are included in the user's manual. It is mounted to a standard fi60 box.
Application for installation:
RGB - with variable colour temperature
DMX - based on the DMX512 system
Features of the Mi-Light wall panel - X5
Four zones to use
Power supply directly from the 230VAC network
Wired connection using DMX512 signal
Works with the standard DMX512, DMX512 (1990), DMX512-A, RDM v.1.0
Can be synchronized with the 2.4Ghz radio series
Glass wall panel
Expansion of the installation at any possible time
Delicate LED backlight showing the operation of the device
Mounting to the fi60 box
MiBoxer DMX512 master (RGB+CCT) X5 specification
Application | RGB+CCT |
Input/output voltage | 230V |
Device type | Wall panel |
Lighting control system | DMX512 |
Lighting control method | Wired and additionally by radio (DMX512/2.4Ghz) |
Number of zones/channels supported | 4 zones |
Communication type | One-way |
Glass panel | Yes |
The behaviour after the loss of 230V supply voltage returns | Return to saved settings |
Return to the previous settings when switching off the transmitter | Yes |
Model number | X5 |
Working temperature | -20 – 60℃ |

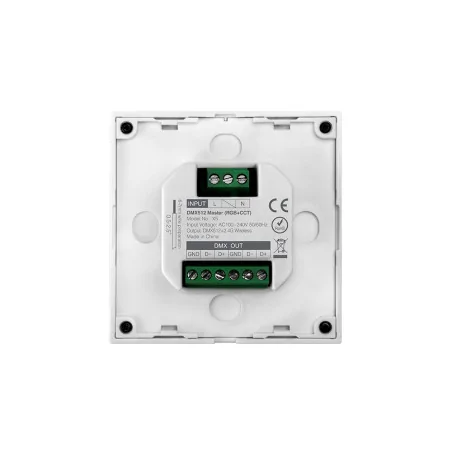

Input connector (power supply) | Screw terminals for bare wires |
Output connector (terminal) | Screw terminals for bare wires |
Colour | White |
Product compatibility | See the compatible MiBoxer products tab |
Ingress Protection | IP20 |
Dimensions[mm] | L86 x W86 x H17 |
Certification | RoHS, CE |
Warranty | 2 years |
MiBoxer DMX512 master (RGB+CCT) X5 package includes
1 x DMX512 master X5 in a retail packaging
1 x User Manual (English)
Data sheet
Specific References
Product Name: 5-Channel Constant Voltage DMX512 & RDM Decoder
Model No.: D5-CX
Input Voltage: DC12~24V
Output Current: 4A/Channel
Total Output Current: Max 20A
Input Signal: DMX512, RDM
Occupy 5 DMX Address
Working Temp.: -20~60℃
Product Name: 72W RGB+CCT LED Wall Washer Light (DMX512 & RDM)
Model No.: D5-W72
Input Voltage: AC100~240V 50/60Hz
Power: 72W
Working Temp.: -20~45°C
Colour Temp.: 2700~6500K
CRI: >80
PF: >0.9
Beam Angle: 15*60°
Occupy 5 DMX Address
Luminous Flux: R:280LM G:540LM B:150LM CW:1800LM WW:1650LM
• Accord with standard DMX512 protocol
• Support the RDM function
• Optional dimming curve
• IP66 Waterproof rate
• 16 Million colours to choose
Product Name: 50W RGB+CCT LED Garden Light (DMX512 & RDM)
Model No.: D5-G50
Power: 50W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20-45°C
Colour Temperature: 2700K~6500K
Luminous Flux: 4000LM
Luminous Efficiency: 80LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
IP Rate: IP65
Occupy 5 DMX Address
• Accord with standard DMX512 protocol
• Support the RDM function
• IP65 Waterproof rate
• 16 Million colours to choose
Product Name: 100W RGB+CCT LED Garden Light ( DMX512 & RDM )
Model No.: D5-G100
Power: 100W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20-45°C
Colour Temperature: 2700K~6500K
Luminous Flux: 7500LM
Luminous Efficiency: 75LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
IP Rate: IP65
Occupy 5 DMX Address
• Accord with standard DMX512 protocol
• Support the RDM function
• IP65 Waterproof rate
• 16 Million colours to choose
