Product Name: 20W RGB+CCT Panel Light
Model No.: FUTL03
Input: AC100~240V 50/60Hz
Power Rating: 20W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 1400LM
Light Efficiency: 70LM/W
CRI: >80
UGR: <19
Lifespan: 50000h
Beam Angle: 160°
Remote Control Distance: 30m
All new orders placed after 1 PM Friday 05.08.2022 will be shipped on Tuesday 9.08.2022. We are sorry for the inconvenience.
The Mi-Light FUTL03 20W RGB+CCT panel light is the newest 2019 product from the Mi-Light brand. This 30x30 LED panel is a multicolour ceiling light that can be controlled via Mi-Light remote control devices, smartphone app or voice-controlled via Amazon Alexa or Google Assistant. The Mi-Light panel frame is made of Aluminium Alloy and it is damp-proof, rust-proof and heat resistant. The high-quality components used to build this smart panel light allow us to enjoy this product for a very long time as its lifespan is rated at 50,000 hours. One panel can transmit the signal from the transmitter (remote control) to another light panel within 30m. With the flicker-free technology used in the panel, you will enjoy all the benefits of this product. The FUTL03 smart panel has a wide beam angle of 160° and the light is even and smooth without any flickering, flare or dark spots. The luminous flux achieves 1400lm which equals 70lm/W.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
The casing is made of high-quality aluminium alloy + LGP + diffuser plate
Obtaining any RGB colour
Obtaining any CCT colour temperature
Radio communication range of 30 meters

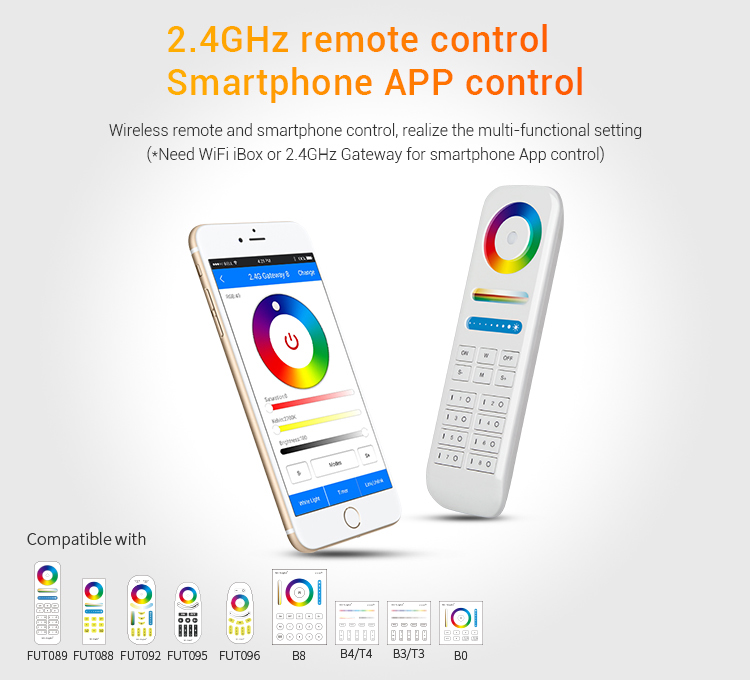

Alternative control via Wi-Fi or voice control
Once Mi-Light 20W RGB+CCT panel light FUTL03 is connected can be controlled via the remote controllers as per the compatible MiBoxer products tab.
The high-quality LED chips used in this panel provide bright and smooth lighting without any spots, flickering, etc. Undeniable advantages of this FUTL03 panel are the very low glare UGR <19, high colour rendering index over 80 (CRI>80), low power consumption, the high luminous flux of 1400lm and wireless control (remote or app control).
The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. Obtaining a given shade of colour depends on the precision of the control, which is usually done with tactile transmitters. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.
| Rated voltage | AC100~240V 50/60Hz |
| Rated power | 20W |
| The colour temperature of the light | warm white 2700K - cold white 6500K |
| Energy consumption | 40kWh/1000h |
| Rated luminous flux | 1400lm |
| UGR | <19 |
| Angle of illumination | 160° |
| Light efficiency | 70lm/W |
| Colour rendering index | >80 |
| Application | Offices, Clubs, Hotels, Shops, Showrooms, Restaurants, Exhibition Centers, etc. |
| Dimmable | yes |
| The possibility of obtaining a colour | yes |
| The way of control | radio, Wi-Fi, voice control (for Wi-Fi and Voice Control WL-Box1 needs to be added to the set) |
| Control frequency | 2,4GHz |
| The range of communication | up to 30 meters in the open area |
| Material | aluminium alloy + LGP + diffuser plate |
| Working temperature | -20 – 60℃ |
| Colour | White |
| The degree of hermeticity | IP20 |
| Model number | FUTL03 |
| Dimensions[mm] | L295 x W295 x H12 |
| Product compatibility | please see the compatible MiBoxer products tab |
| Declarations/Certificates: | RoHS, CE |
| Warranty period | 24 months |
1 x Mi-Light 30x30 smart LED RGB+CCT ceiling panel in a retail packaging
1 x User Manual (English)
Data sheet
