Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: 48W RGB+CCT LED Wall Washer Light (LoRa 433MHz)
Model No.: RL2-48L
Power: 48W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20~60℃
Colour Temperature: 2700K~6500K
Luminous Flux: 3200LM
CRI: >80
PF: >0.9
RF: 433MHz
Modulation Method: LoRa spread spectrum
Control Distance: 2000m
Lifespan: 50000h
Beam Angle: 15*60°
Illumination Distance: >20m
IP Rate: IP66
• 433MHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Use LoRa SPSP modem technology
• Maximum control distance of 2000m
• IP66 waterproof

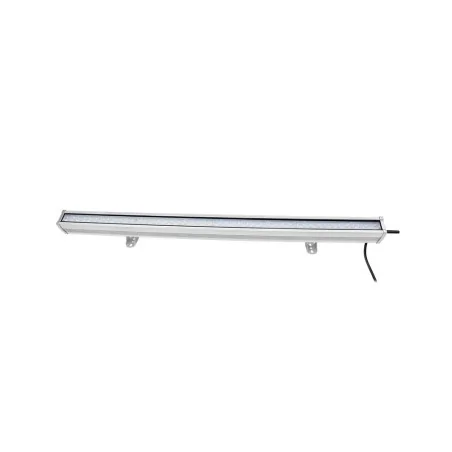

The LED wall washer lamp RGB+CCT 48W 230V - RL2-48L - MiBoxer - Lora 433MHz is an oblong linear LED luminaire having many common features with popular LED floodlights. Wall washer LED is characterized by very strong LEDs that are built into lenses that focus the light in a narrow but long-range of light, thus creating an effective light illumination at the level of 15-20 meters. The RL2-48L linear luminaire is controlled using a wireless radio path operating in the LoRa 433Mhz long-range technology, the range of which can be up to 2000 meters. Alternatively, access can be obtained using Wi-Fi and voice commands. Works with MiBoxer series controllers.
The linear LED floodlight has in its construction two adjustable handles allowing to direct the luminous flux in the range of 180 degrees. They are made of aluminium alloy. The entire wall washer lamp RL2-48L is made of high-quality components that protect against corrosion or the ingress of moisture due to the use of aluminium and obtaining IP66 protection. Due to their high versatility, they are intended for lighting various types of architectural and commercial buildings, monuments, monuments and a number of public places.
Housing and components made of aluminium alloy
Possibility to control any RGB colour and light colour in the range of 2700-6500K
Wireless access via radio
Alternative access via wifi and voice system
It uses LoRa 433MHz long-range communication technology
Radio communication range is up to 2000 meters
Increased resistance of the lampshade to weather conditions
Obtaining a long light illumination
Narrow beam angle 15x60 degrees
180-degree adjustable handles
High versatility due to several assembly methods
Very high luminous efficiency
Low energy consumption
Long life of the LEDs
Rated voltage | 100 ~ 240VAC/50 ~ 60Hz |
Rated power | 48W |
Rated luminous flux | 3200lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 15*60° |
Length of luminous flux | > 20m |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.9 |
Controlling | Radio (wirelessly - 433MHz) |
Control distance | 2000m |
Alternative control | Via Wi-Fi with WL-433 |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 1017mm x 64mm x 119mm |
Modulation method | LoRa spread spectrum |
Lifespan | 50,000 hours |
Declarations/Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
1 x wall washer light in a retail packaging
1 x Manuals
Data sheet
Specific References
Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: T Type 3-Pin Connector
Model No.: AM-GP-20NT3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rating: IP68
Application: Outdoor lights
Size: 102*66*25mm
Product Name: X Type 3 Pin Connector
Model No.: AM-GP-20NX3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: 102*102*25mm
Product Name: 50W RGB+CCT LED Garden Light (LoRa 433MHz)
Model No.: FUTC06L
Power: 50W
Voltage: AC100~240V 50/60Hz
Work Temperature: -20~60°C
RF: 433MHz (LoRa spread spectrum)
Control distance: 2000m
Colour Temperature: 2700K~6500K
Luminous Flux: 4000LM
Luminous Efficiency: 80LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
Illumination distance: >15m
IP Rate: IP65
• 433MHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Use LoRa SPSP modem technology
• Maximum control distance of 2000m
• IP65 waterproof
Product Name: 24W RGB+CCT LED Wall Washer Light ( LoRa 433MHz )
Model No.: RL1-24L
Power: 24W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20~60℃
Colour Temperature: 2700K~6500K
Luminous Flux: 1800LM
Light Efficiency: 75LM/W
CRI: >80
PF: >0.9
RF: 433MHz
Modulation Method: LoRa spread spectrum
Control Distance: 2000m
Lifespan: 50000h
Beam Angle: 15*60°
Illumination Distance: >15m
IP Rate: IP66
• 433MHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Use LoRa SPSP modem technology
• Maximum control distance of 2000m
• IP66 waterproof
Product Name: 15W RGB+CCT Wall-mounted Underwater Light (LoRa 433MHz)
Model No.: UW01
Power: 15W
Input Voltage: AC12V / DC12~24V
Working Temperature: -20~45℃
RF: 433MHz
Modulation Method: LoRa spread spectrum
Control distance: 50m (Lamps into 0.5m underwater)
Colour temperature: 2700K~6500K
Luminous Flux: 1100LM
Light Efficiency: 72LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 160°
IP Rate: IP68
Housing Material: 316 Stainless Steel+PC
• 433MHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Use LoRa SPSP modem technology
• Maximum control distance 50m (Lamps into 0.5m underwater)
• IP68 waterproof
Product Name: 8-Zone 433MHz Remote Controller
Model No.: FUT086
Working Voltage: 3V (AAA * 2PCS)
Transmitting Power: 10dBm
Standby Power Consumption: 16uA
RF: 433MHz
Modulation Method: LoRa Spread Spectrum
Control Distance: 50m (Lamps 0.5m underwater)
Size: 157*47*19mm
• LoRa Spread Spectrum
• Control distance: 50m(Lamps 0.5m underwater)
• It can control on/off, RGB colour, colour temperature saturation and brightness for MiBoxer LoRa 433 series lights
Product Name: 433MHz Gateway
Model No.: WL-433
Input: DC5V/500mA (5.5*2.1mm)
Working Temperature: -20~60℃
Communication Mode: WiFi-IEEE 802.11 b/g/n 2.4GHz
Input Signal: DMX512(1990)
RF: 433MHz (Transmitting Power: 15dBm)
Modulation Method: LoRa spread spectrum
Control Distance: 50m (Lamps into 0.5m under freshwater)
Control Distance: 1000m (Lamps on the open area)
• Compatible with Mi-Light and MiBoxer LoRa 433MHz series product
• Smartphone app control
• Support Third Party Voice Control
• Support DMX512 to 2.4G wireless control
