Design Light under cabinet LED light ORBIT XL MASTER 3W
Type: under cabinet lighting (main light with a switch and 6-way splitter for ORBIT luminaires)
Voltage: 12V DC
Power: 3W
Power source: not included
Colour: white, aluminium, black
Material: plastic

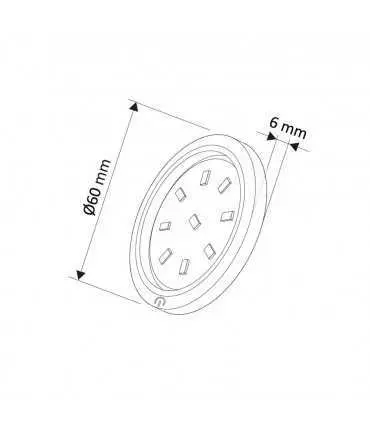

Size: 60x60x6mm
Type of mounting: surface
Light colour: warm white, neutral white, cold white
Light colour temperature: 3000K, 4500K, 6000K
Luminous flux: 280lm
Ingress Protection: IP20
Beam angle: 120°
Cable length: 2m
Connector: mini AMP (male), mini AMP 6-way splitter (female)
Shape: round
We are away from 23rd June to 30th June. All new orders will be shipped after the 30th of June. We are sorry for the inconvenience.
Design Light under cabinet LED light ORBIT XL MASTER 3W
The LED fixture ORBIT XL in the MASTER version with a touch switch is an innovative way to illuminate usable surfaces with the help of built-in LED diodes. Its modern design makes it suits any type of interior.
The luminaire has a built-in switch, which is responsible for all lighting. All it takes is one touch to enable/disable the entire LED system. Its modern design makes it suits any type of interior.
LED ORBIT XL contains 9 built-in strong LEDs 5630 with a total power of 3W, which guarantee long life and low operating costs, and has a 2m cable with a MINI-CONNECTOR facilitating the connection of lighting.
Product advantages:
product manufactured in Poland;
simple and quick assembly of screws;
strong and modern type 5630 diodes;
a lot of light - luminous flux at 280 lumens;
energy efficiency and low power consumption;
the luminaire in aluminium colour;
binding in the MINI-CONNECTOR system, supplying and connecting fittings without soldering.
The fitting requires the use of a 12V DC power supply. LED power supplies are available in our store.
Design Light under cabinet LED light ORBIT XL MASTER 3W specification
| The colour of the binding | aluminium, white, black |
| Voltage | 12V DC |
| Power | 3W |
| LED type | 5730 |
| Colour of light | warm white, neutral white, cold white |
| Beam angle | 120° (the product is not intended for accent lighting) |
| Degree of protection | IP20 |
| Energy class | A ++ |
| Energy consumption kWh/1000h | 3kWh/1000h |
| Luminous flux | 280lm |
| Nominal shelf life | 30.000h |
| Number of on/off cycles | ≥15000 |
| Lighting time up to 60% of the full luminous flux | ≤1s |
| Cooperation with dimmers | No |
| CRI - colour rendering index | ≥80 |
| Place of application of the product | Internal use in a dry room. |
| The length of the wire | 2m cable terminated with MINI-CONNECTOR plug |
| The minimum distance from the light source | 30 cm |
Data sheet
- Rated Power
- 3W
- Light Colour
- Cold white
Neutral white
Warm white
- Rated Voltage
- 12V
- Luminous Flux
- 280lm
- Design
- Round
- Class
- LED
- Colour Temperature
- 3000K
4500K
6000K
Specific References
- ean13
- 5900653141838
- mpn
- P0750
