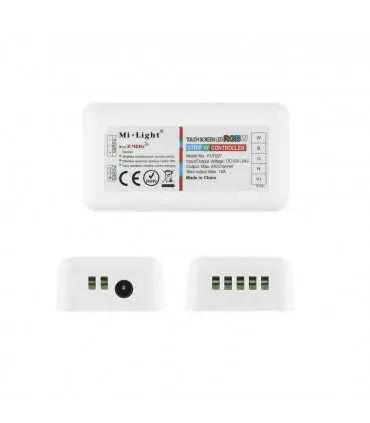

Product Name: 2.4GHz Touch RGBW LED Strip Controller
Model No.: FUT027
Voltage: DC12V-24V
Output: Max. 6A/Channel
Total output Max.10A
Control Distance: 30m
Controller Size: 85*45*22.5mm
Remote Size: 110*53*20.5mm
• 2.4G RF Remote controllable
• 16 Million colours to choose
• Brightness and saturation controllable
• Control distance: 30m
The RGB+W 12-24V 10A Single Zone Controller is a ready-to-use product that allows you to wirelessly control RGB+W multicolour (eg RGB+W). With this kit, you can get any colour from the RGB colour palette and turn on the colour of a single colour for the connected LED strip at any time. Connectivity is achieved through radio using a 2.4 GHz signal.
The set includes a radio remote control and one receiver.
ON/OFF switch
Dimming and brightening of the connected LED lighting
Active colour change from RGB colour palette
One colour (monochrome)
Active dynamic programs to use (change mode/speed)
Set for one zone (room)
Battery-operated remote (2x1.5V AAA)
Touch buttons
Radio communication with the receiver (2.4GHz)
Remote operation
Works with Wi-Fi controller (optional)
Built-in dynamic programs to diversify multi-colour installations
Maximal current carrying capacity for receiver 10A
Decent price
24 months warranty
Basic communication with the receiver is via radio. Optional Wi-Fi control, which lets you control your lighting with your mobile device (such as a smartphone or tablet), is available only through the appropriate Wi-Fi module.
To access the control over the Wi-Fi network you need to purchase the appropriate module, which you will find in the "Related Products" tab.
Table 1. A detailed description of the programs:
Number | Function | Change of speed | Changing the brightness |
---|---|---|---|
1 | Static white colour | impossible | Possible |
2 | Static colour with white with the option of choosing an additional RGB colour | impossible | Possible |
3 | Smooth change of RGB colours | Possible | Possible |
4 | Smooth change of four colours (R+B+G+W) | Possible | Possible |
5 | The step-change of four colours (R+B+G+W) | Possible | Possible |
6 | Jumping seven colours together with white | Possible | Possible |
7 | A shifting change of red and white | Possible | Possible |
8 | A jumping change of blue and white colour | Possible | Possible |
9 | A jumping change of green and white | Possible | Possible |
10 | Jumping red | Possible | Possible |
11 | Jumping green | Possible | Possible |
12 | Jumping blue | Possible | Possible |
13 | Jumping white | Possible | Possible |
14 | All programs connected together | impossible | Possible |
Great comfort - 16 million colours to drive
The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. The colour tone in question depends on the precision of the control, which is usually achieved with the touch transmitter. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.
Each of the Mi-light LED driver series is characterized by the ability to assign not only one device to it. Built-in invisible underneath the electronics, it works on the principle of the receiver, thus connecting with our LED driver. One zone in the remote control is also not an obstacle because we can assign to it many devices such as LED bulbs, downlight luminaires and receivers working with the model. Many devices do not interfere with each other and make this connection easy to use and easy to control. Below you will find a full table listing all the devices that work with your model
Depending on the model of the transmitting device, which mainly occurs as a radio link to the receiver, various control functions can be obtained. The centrepiece of the dial or the rotating wheel for the dimmers is the main function of the particular change of colour or brightness. At the very top of the remote control, there are buttons that correspond to the operating mode of the unit, so be sure to turn on the remote control before the startup. The construction of the multi-zone remote control is simple, the buttons for the zone on / off are located at the bottom of the device stacked side by side so that access to them is convenient.
Receiver units are supplied with DC voltage of 12VDC or 24VDC, which must be connected to the input of the device. For ease of installation, the receiver design consists of screw terminals, both at the input and the output, which makes it easy to wire the device. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. The wiring is stable and quick to install.
Application | For RGB+W installations |
Number of supported zones/channels | 1 |
The way of control | radio |
The way of control | Touch buttons + dial to change colours |
The range of radio communication | up to 30 meters in the open area |
Powering the remote control | 2 x 1.5V AAA battery |
Signal modulation | GFSK |
Transmission type | Two-way |
The frequency of transmission | 2.4GHz |
Power consumption in operating mode | 6dBm |
Power consumption in standby mode | 20uA |
Touch buttons | So |
Colour | White |
The degree of tightness | IP20 |
Pilot dimensions | 53mm x 22mm x 110.5mm |
The input/output voltage of the receiver | 12VDC or 24V DC |
The maximum output current of the receiver | 10A |
Number of receiver outputs | 4 outputs (R/G/B/W) - common anode |
The frequency of the radio signal | 2.4GHz |
Output signal | PWM |
Additional controls | Wi-Fi module (see the compatible MiBoxer products tab) |
Return to previous settings after turning off the power | Yes |
Working temperature | -20-60°C |
Input connector (power supply) | Screw clamps for wires and DC socket |
Output (signal) connector | Screw clamps for wires |
Dimensions of the receiver | 85mm * 45mm * 22.5mm |
Declarations | RoHS, CE, UKCA |
Warranty | 24 months |
1 x Remote
1 x Receiver
1 x Double-sided adhesive pad
1 x Manuals
Data sheet
Specific References
● Unique skin-like design, delicate touch, as smooth as baby skin.
● Standard 86*86mm dimension design.
● Rated voltage of 250V~.
● Capable of withstanding a maximum current of 10A.
Product Name: 5 in 1 LED Controller (WiFi+2.4G)
Model No.: PW5
Input Voltage: DC12~48V
Output: 10A/Channel
Total Output: Max 20A
Communication Protocol: WiFi + 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Millions of colours to choose, colour temperature adjustable, brightness and saturation controllable
• Support PUSH dimming
• Switching 5 output mode via one button (Single colour/Dual white/RGB/RGBW/RGB+CCT)
Product Name: 2 in 1 LED Controller (WiFi+2.4G)
Model No.: PW2
Input Voltage: DC12~48V
Output: 20A/Channel
Total Output: Max 20A
Communication Protocol: WiFi+ 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• Brightness and color temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
Product Name: AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)
Model No.: TRI-PZ
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W @110V; 500W @220V
Dim method: Zigbee 3.0 + 2.4G + Push
Zigbee Control Distance: 100m (open area)
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 100m (open area)
• Support Amazon Alexa and Google Home control
• Support 2.4G remote control, control distance 30m
Product Name: AC Triac Dimmer (WiFi+2.4G+Push)
Model No.: TRI-PW
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W@110V; 500W@220V
Dim Method: WiFi + 2.4G + Push
2.4G RF Control Distance: 30m
Wireless Technology: Wi-Fi IEEE 802.11b/g/n 2.4GHz
Working Temperature: -10~40°C
The TRI-PW supports the control of traditional incandescent lamps, halogen lamps, and dimmable LED lamps. It is compatible with the “Tuya Smart” app. Additionally, our product is compatible with Amazon Alexa and Google Home for voice control, and it comes with a 2.4G remote control that offers a control distance of up to 30 meters. Experience the convenience and comfort of smart home lighting with ease.
Product Name: AC Triac Dimmer (2.4G+Push)
Model No.: TRI-PR
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W @110V
500W @220V
Dim Method: RF wireless dimming
Push dimming
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Support 2.4G remote control, control distance 30m
Product Name: 2 in 1 LED Controller (WiFi+2.4G)
Model No.: HW2
Input Voltage: DC12~48V
Output: 30A/Channel
Total Output: Max 30A
Communication Protocol: WiFi+ 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF remote controllable
• Brightness and colour temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
Product Name: 2 in 1 LED Controller (2.4GHz)
Model No.: HR2
Input Voltage: DC12~48V
Output: 30A/Channel
Total Output: Max 30A
RF: 2.4GHz
Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Output connection: Common anode
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• Control Distance: 30m
• Brightness and colour temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
