Product Name: 100W RGB+CCT LED Garden Light ( DMX512 & RDM )
Model No.: D5-G100
Power: 100W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20-45°C
Colour Temperature: 2700K~6500K
Luminous Flux: 7500LM
Luminous Efficiency: 75LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
IP Rate: IP65
Occupy 5 DMX Address
• Accord with standard DMX512 protocol
• Support the RDM function
• IP65 Waterproof rate
• 16 Million colours to choose

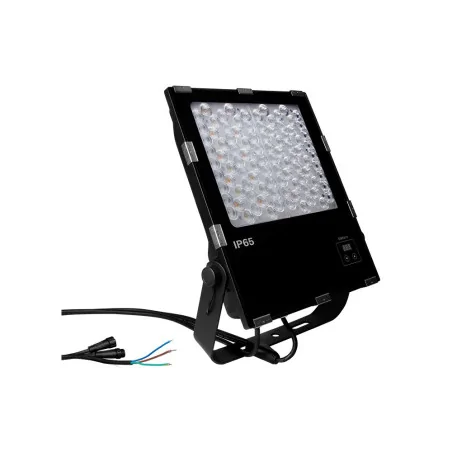

MiBoxer 100W RGB+CCT LED garden light D5-G100
Garden luminaire RGB+CCT 100W - 230VAC - D5-G100 - DMX512 is a garden lamp, used to illuminate various types of external arrangements, i.e. lighting of gardens, parks or facades of buildings. It was designed for installation in soft but stable ground, i.e. ground. Alternatively, using an external in-ground grip, it can be applied to a less durable substrate such as gravel or sand. The garden luminaire has high-quality LEDs, allowing for a full-colour palette with any colour temperature using the RGB+CCT wireless controller. The narrow beam angle ensures the precise directing of light to a given object while maintaining a luminous flux of 7500lm. The D5-G100 garden luminaire is wired to a system based on DMX512 communication. The built-in digital display allows you to set an individual address accessed via DMX512 drivers.
Features of the LED RGB+CCT - MiBoxer garden luminaire:
Housing made of high-quality aluminium
High luminous flux of 7500lm
Obtaining any RGB colour
Obtaining any CCT colour temperature
Wired connection using DMX512 signal
Works with the standard DMX512, DMX512 (1990), DMX512-A, RDM v.1.0
Built-in digital display
Mounting bracket allowing for stable installation
Tight hermetic housing IP65
Narrow angle of illumination and a long beam of light
Diffuser with no glare effect
MiBoxer 100W RGB+CCT LED garden light (DMX512 & RDM) D5-G100 specification
Application | RGB+CCT |
Input/output voltage of the receiver | AC100~240V 50/60Hz |
Power | 100W |
Beam angle | 25° |
Colour temperature | 2700~6500K |
CRI | >80 |
PF | >0.9 |
Luminous Flux | 7500lm |
Controlling method | wired (DMX512) |
Model number | D5-G100 |
Working temperature | -20 – 60℃ |
Input connector (power supply) | Bare wires and 3-pin connector (D+, D-, GND) |
Output connector (terminal) | 3-pin connector (D+, D-, GND) |
Colour | Black |
Product compatibility | See the compatible MiBoxer products tab |
Ingress Protection | IP65 |
Dimensions[mm] | L415 x W330 x H60 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer 100W RGB+CCT LED garden light (DMX512 & RDM) D5-G100 package includes
1 x MiBoxer 100W RGB+CCT LED garden light in a retail packaging
1 x User Manual (English)
Data sheet
- Rated Power
- 100W
- Light Colour
- RGB+CCT
- Luminous Flux
- 7500lm
- Beam Angle
- 25°
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Operating Temperature
- -20°C~+40°C
- Colour
- Black
- Current Type
- AC
- Colour Changing
- Yes
- Item Length
- 345mm
- Item Width
- 330mm
- Item Weight
- 6.38kg
- Item Height
- 60mm
- Wholesale Box Quantity
- 1
