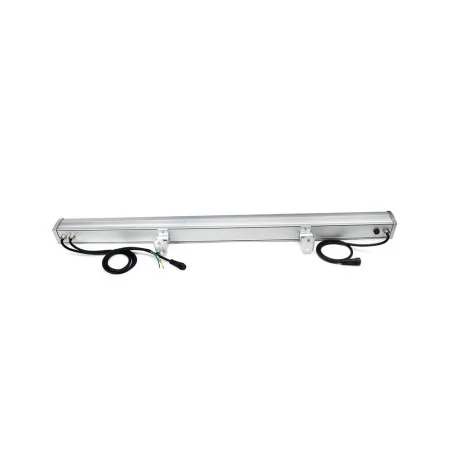

Back view of MiBoxer 72W RGB+CCT LED wall washer light with two cables for power and DMX connection.
Back view of MiBoxer 72W RGB+CCT LED wall washer light with two cables for power and DMX connection.
Side view of MiBoxer 72W RGB+CCT LED wall washer light, showing both the cables and mounting brackets.
Energy efficiency label for MiBoxer 72W RGB+CCT LED wall washer light.
MiBoxer 72W RGB+CCT LED wall washer light (DMX512 & RDM) D5-W72 | Future House Store
Detail of MiBoxer 72W RGB+CCT LED wall washer light's mounting bracket and connections.
Rear close-up of MiBoxer 72W RGB+CCT LED wall washer light, showcasing the power input and DMX control port.
Back view of MiBoxer 72W RGB+CCT LED wall washer light with two cables for power and DMX connection.
Back view of MiBoxer 72W RGB+CCT LED wall washer light with two cables for power and DMX connection.
Side view of MiBoxer 72W RGB+CCT LED wall washer light, showing both the cables and mounting brackets.
Energy efficiency label for MiBoxer 72W RGB+CCT LED wall washer light.

MiBoxer 72W RGB+CCT LED wall washer light (DMX512 & RDM) D5-W72

MiBoxer 72W RGBW LED wall washer light (DMX512 & RDM) D4-W72
MiBoxer DMX512 master (single colour) X1

Product Name: 72W RGB+CCT LED Wall Washer Light (DMX512 & RDM)

Model No.: D5-W72

Input Voltage: AC100~240V 50/60Hz

Power: 72W

Working Temp.: -20~45°C

Colour Temp.: 2700~6500K

CRI: >80

PF: >0.9

Beam Angle: 15*60°

Occupy 5 DMX Address

Luminous Flux: R:280LM   G:540LM   B:150LM   CW:1800LM   WW:1650LM

• Accord with standard DMX512 protocol

• Support the RDM function

• Optional dimming curve

• IP66 Waterproof rate

• 16 Million colours to choose

Read moreShow less
£244.80 (VAT incl.)
Delivery within 1-3 weeks
Available for backorder
Share
Close
Condition
New
Reference:
P2160
Brand:
Mi-Light
Love1
Add to wishlist
Add to compare0
Share
Description

MiBoxer 72W RGB+CCT LED wall washer light (DMX512 & RDM) D5-W72

Front view of MiBoxer 72W RGB+CCT LED wall washer light

The LED wall washer lamp RGB+CCT 72W 230V - D5-W72 - MiBoxer - DMX512 is an oblong linear LED luminaire that shares many features with popular LED floodlights. The Wall washer LED is characterized by very strong LEDs built into lenses that focus the light in a narrow but long range, creating effective light illumination over 15-20 meters. The D5-W72 linear fitting is wired to a system based on DMX512 communication. The built-in digital display allows setting an individual address, which can be accessed via DMX512 drivers.

MiBoxer 72W RGB+CCT LED wall washer light with adjustable handles

The linear LED floodlight has in its construction two adjustable handles allowing to direct the luminous flux in the range of 180 degrees. They are made of aluminium alloy. The entire wall washer lamp D5-72W is made of high-quality components that protect against corrosion or the ingress of moisture due to the use of aluminium and obtaining IP66 protection. Due to their high versatility, they are intended for lighting various types of architectural and commercial buildings, monuments, monuments and a number of public places.

Close-up of MiBoxer D5-W72 wall washer light with aluminium construction

Features of the wall washer LED RGB+CCT lamp - MiBoxer

Housing and components made of aluminium alloy

Possibility to control any RGB colour and light colour in the range of 2700-6500K

Wired connection using DMX512 signal

Works with the standard DMX512, DMX512 (1990), DMX512-A, RDM v.1.0

Increased resistance of the lampshade to weather conditions

Obtaining a long light illumination

Narrow beam angle 15x60 degrees

Digital display

180-degree adjustable handles

High versatility due to several assembly methods

Very high luminous efficiency

Low energy consumption

Long life of the LEDs

MiBoxer wall washer light D5-W72 with IP66 protection

Digital display of MiBoxer D5-W72 wall washer light

MiBoxer 72W wall washer light with narrow beam angle

MiBoxer D5-W72 wall washer light showing aluminium alloy construction

MiBoxer 72W wall washer light wired connection

MiBoxer 72W RGB+CCT LED wall washer light (DMX512 & RDM) D5-W72 specification

Application RGB+CCT
Input/output voltage of the receiver AC100~240V 50/60Hz
Power 72W
Beam angle 15*60°
Colour temperature 2700~6500K
CRI >80
PF >0.9
Luminous Flux R:280lm, G:540lm, B:150lm, CW:1800lm, WW:1650lm
Controlling method wired (DMX512)
Model number D5-W72
Working temperature -20 – 60℃
Input connector (power supply) Bare wires and 3-pin connector (D+, D-, GND)
Output connector (terminal) 3-pin connector (D+, D-, GND)
Colour Silver
Product compatibility See the compatible MiBoxer products tab
Ingress Protection IP66
Dimensions[mm] L1020 x W64 x H119
Certification RoHS, CE, UKCA
Warranty 2 years

MiBoxer 72W RGB+CCT LED wall washer light with high luminous efficiency

MiBoxer 72W RGB+CCT LED wall washer light (DMX512 & RDM) D5-W72 package includes

1 x MiBoxer 72W RGB+CCT LED wall washer light in a retail packaging

1 x User Manual (English)

Read moreShow less
Product Details
P2160

Data sheet

Light Colour
RGB+CCT
Rated Voltage
230V
Luminous Flux
R:280LM, G:540LM, B:150LM, CW:1800LM, WW:1650LM
CRI
Ra≥80
Beam Angle
15*60°
Ingress Protection
IP66
Model Number
D5-W72
Certification
CE
RoHS
UKCA
Warranty
2 years
Operating Temperature
-20~45°C
Pack Quantity
1
Packaging
Original retail colour packaging
Country/Region Of Manufacture
China
Colour
Silver
Current Type
AC
Colour Temperature
2700~6500K
Unit Type
Unit
Item Length
1020mm
Item Width
64mm
Item Weight
3.2kg
Item Height
62mm+57mm
Wholesale Box Quantity
6
Attachments
D4-W72 to D5-W72 - user manual
Download (325.12KB)
