Product Name: 72W RGBW LED Wall Washer Light (DMX512 & RDM)
Model No.: D4-W72
Input Voltage: AC100~240V 50/60Hz
Power: 72W
Working Temp.: -20~45°C
Color Temp.: 2700~3000K
CRI: >80
PF: >0.9
Beam Angle: 15*60°
Occupy 4 DMX Address
Luminous Flux: R:560LM G:1080LM B:300LM W:2600LM
• Accord with standard DMX512 protocol
• Support the RDM function
• Optional dimming curve
• IP66 Waterproof rate
• 16 Million colours to choose

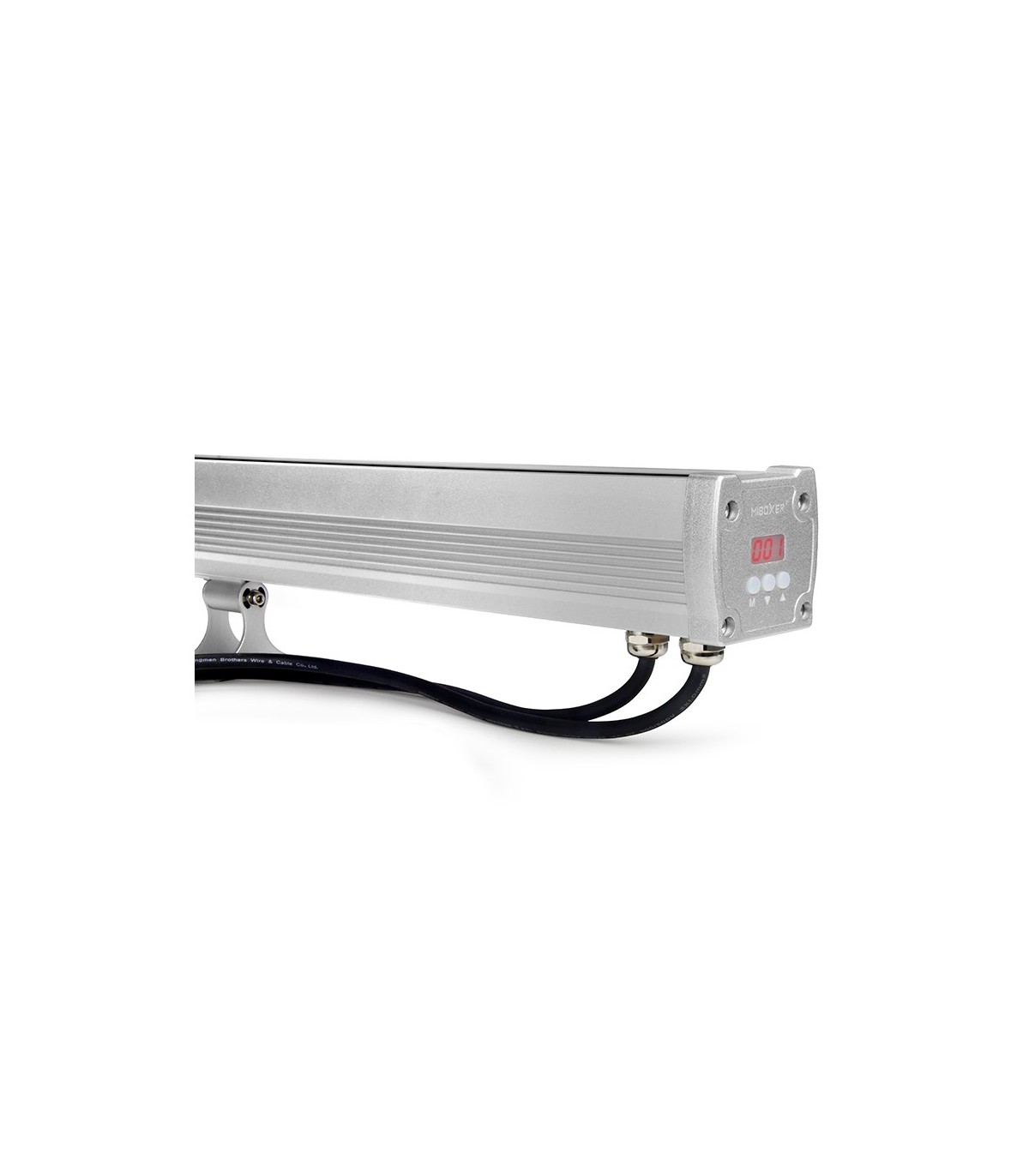

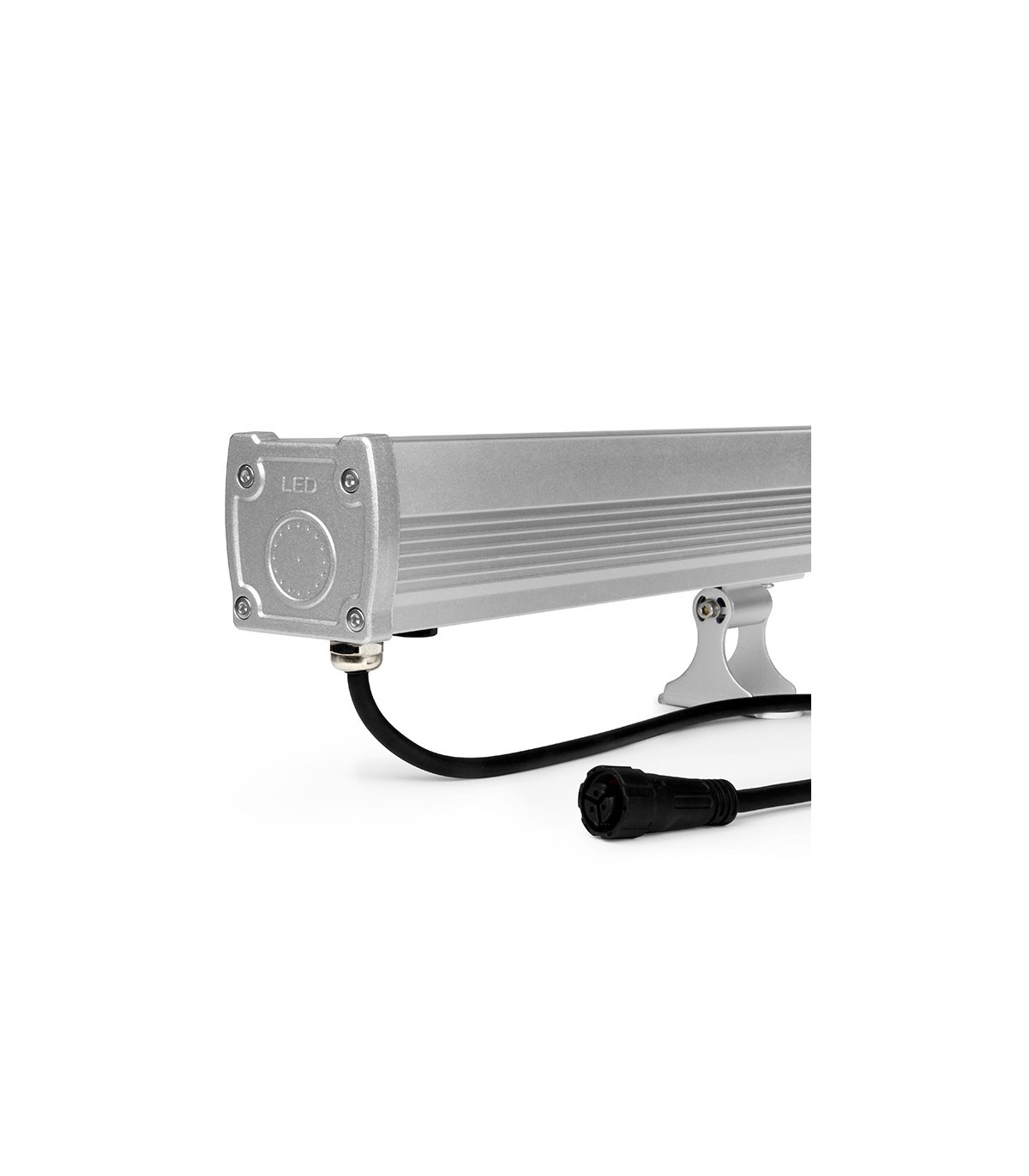

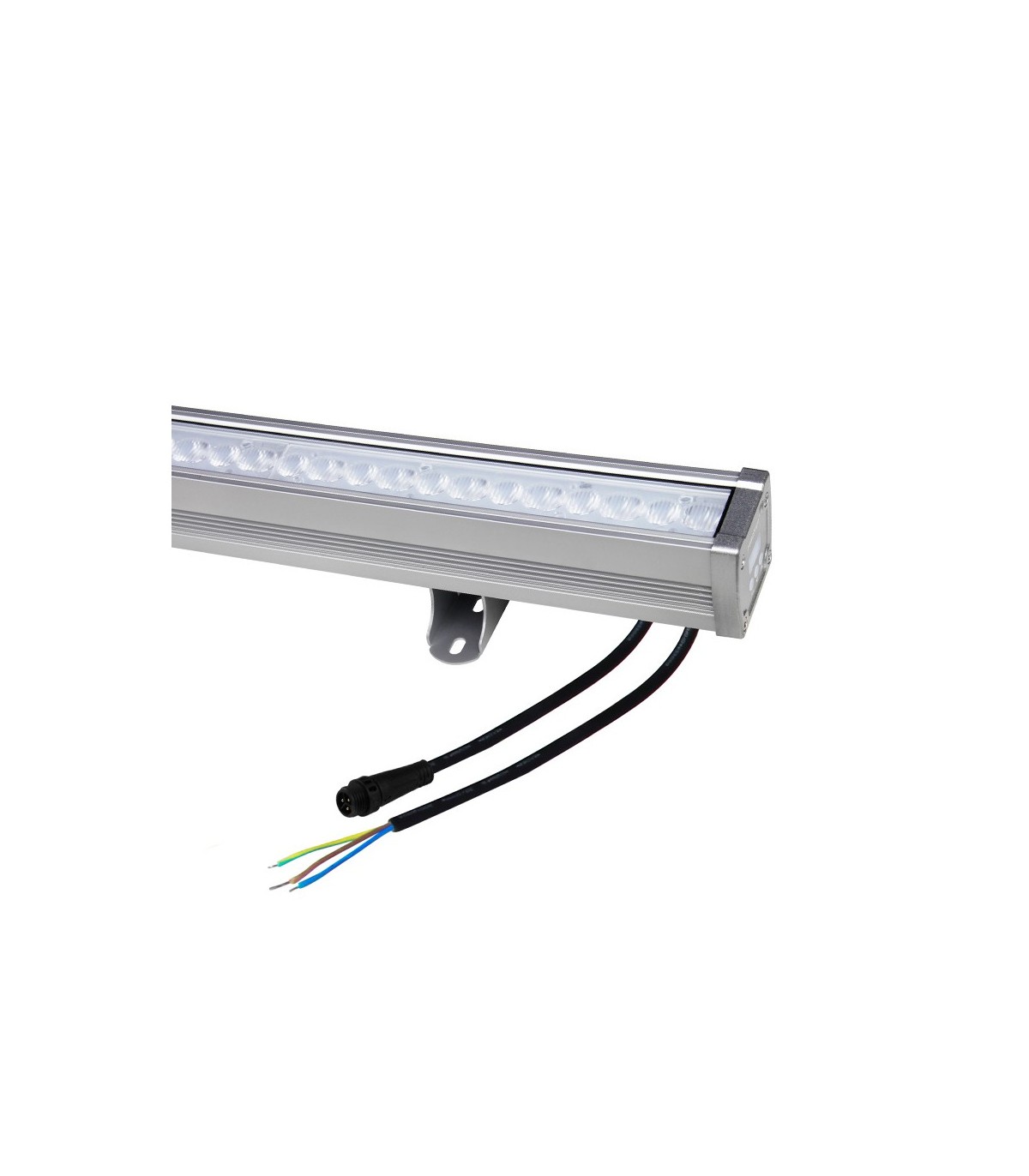

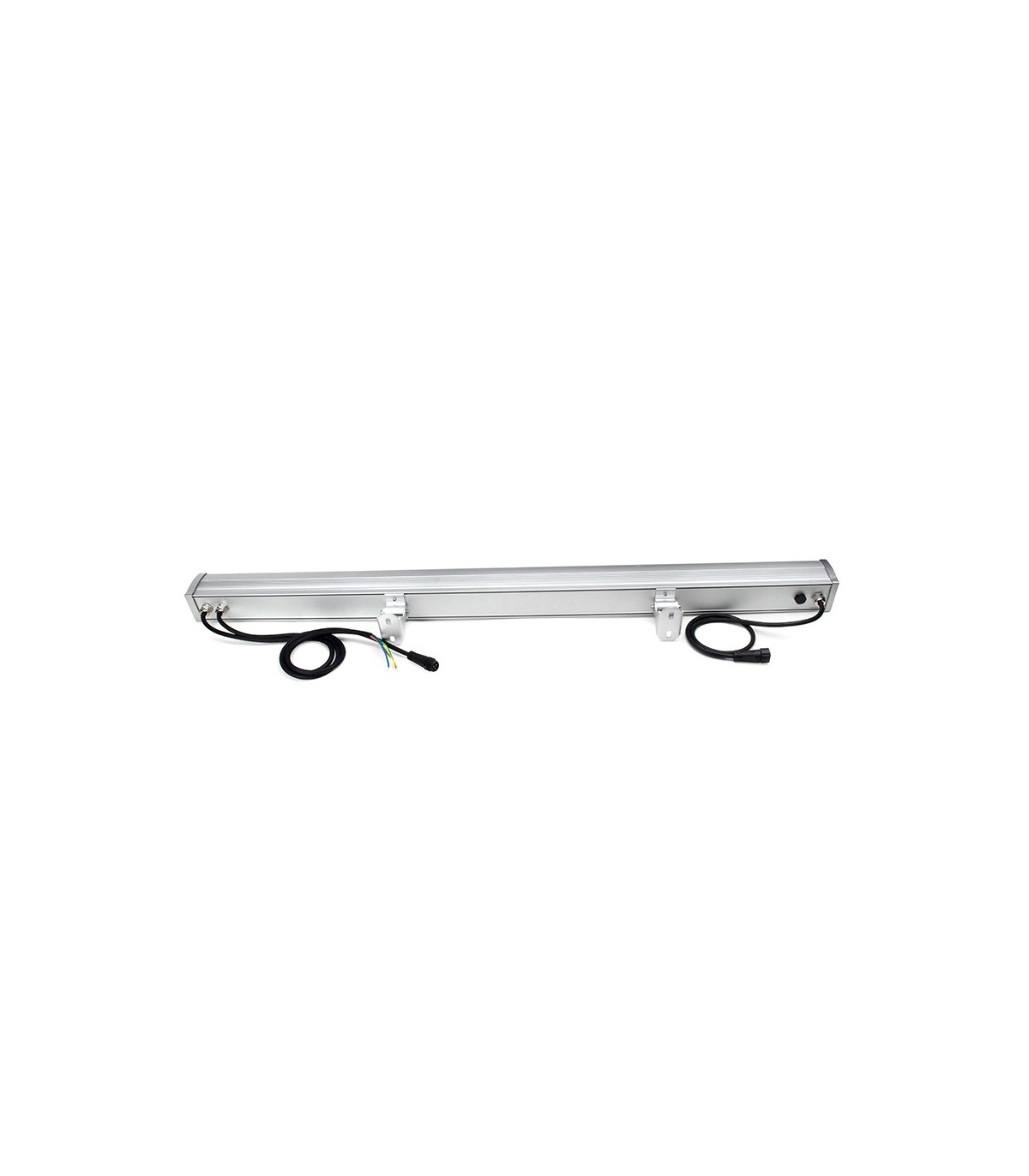

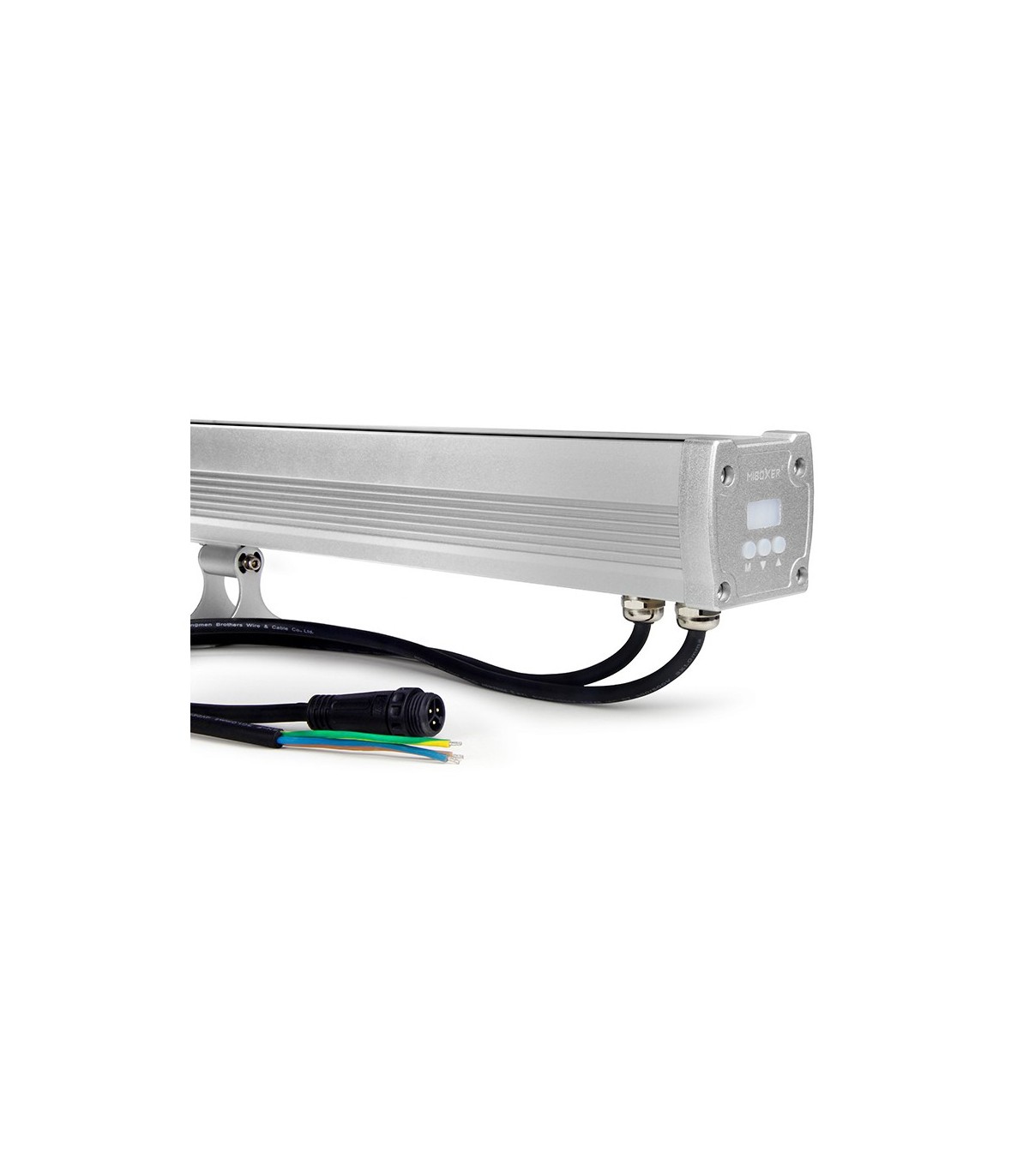

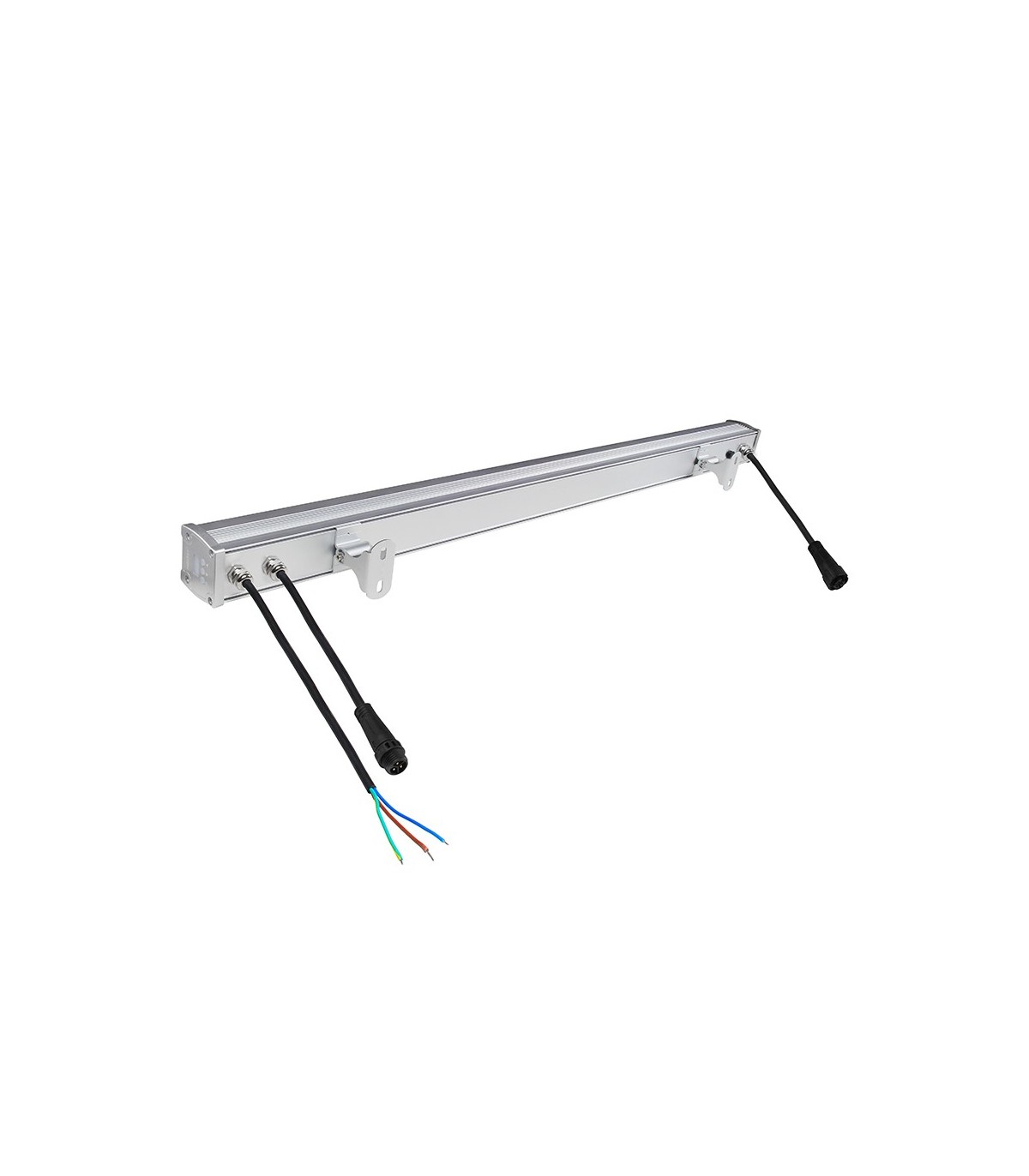

LED wall washer lamp RGB+W 72W 230V - D4-W72 - MiBoxer - RGB + Warm White 3000K - DMX512 is an oblong linear LED luminaire having many common features with popular LED floodlights. Wall washer LED is characterized by very strong LEDs that are built into lenses that focus the light in a narrow but long-range of light, thus creating an effective light illumination at the level of 15-20 meters. The D4-W72 linear fitting is wired to a system based on DMX512 communication. The built-in digital display allows you to set an individual address, which is accessed via DMX512 drivers.
The linear LED floodlight has in its construction two adjustable handles allowing to direct the luminous flux in the range of 180 degrees. They are made of aluminium alloy. The entire wall washer lamp D4-72W is made of high-quality components that protect against corrosion or the ingress of moisture due to the use of aluminium and obtaining IP66 protection. Due to their high versatility, they are intended for lighting various types of architectural and commercial buildings, monuments, monuments and a number of public places.
Housing and components made of aluminium alloy
Possibility to control any RGB colour and warm white 3000K
Wired connection using DMX512 signal
Works with the standard DMX512, DMX512 (1990), DMX512-A, RDM v.1.0
Increased resistance of the lampshade to weather conditions
Obtaining a long light illumination
Narrow beam angle 15x60 degrees
Digital display
180-degree adjustable handles
High versatility due to several assembly methods
Very high luminous efficiency
Low energy consumption
Long life of the LEDs
| Application | RGB+W |
| Input/output voltage of the receiver | AC100~240V 50/60Hz |
| Power | 72W |
| Beam angle | 15*60° |
| Colour temperature | 2700~3000K |
| CRI | >80 |
| PF | >0.9 |
| Luminous Flux | R:560lm, G:1080lm, B:300lm, W:2600lm |
| Controlling method | wired (DMX512) |
| Model number | D4-W72 |
| Working temperature | -20 – 60℃ |
| Input connector (power supply) | Bare wires and 3-pin connector (D+, D-, GND) |
| Output connector (terminal) | 3-pin connector (D+, D-, GND) |
| Colour | Silver |
| Product compatibility | See the compatible MiBoxer products tab |
| Ingress Protection | IP66 |
| Dimensions[mm] | L1020 x W64 x H119 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
1 x MiBoxer 72W RGB+W LED wall washer light in a retail packaging
1 x User Manual (English)
Data sheet
Specific References
Product Name: DMX512 Master (RGB+CCT)
Model No.: X5
Input Voltage: AC100~240V 50/60Hz
Output: DMX512 + 2.4GHz Wireless
RF Transmitting Power: 6dBm
RF Control Distance: 30m
Working Temp.: -20~45°C
Product Name: DMX512 Master (RGBW)
Model No.: X4
Input Voltage: AC100~240V 50/60Hz
Output: DMX512 + 2.4GHz Wireless
RF Transmitting Power: 6dBm
RF Control Distance: 30m
Working Temp.: -20~45°C
• Accord with standard DMX512 protocol
• 4 zones controlled separately
• Controlled by 2.4G RF remote controller
• Used as a 2.4G RF remote control
• Smartphone controllable (need 2.4G gateway)
Product Name: 50W RGB+CCT LED Garden Light (DMX512 & RDM)
Model No.: D5-G50
Power: 50W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20-45°C
Colour Temperature: 2700K~6500K
Luminous Flux: 4000LM
Luminous Efficiency: 80LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
IP Rate: IP65
Occupy 5 DMX Address
• Accord with standard DMX512 protocol
• Support the RDM function
• IP65 Waterproof rate
• 16 Million colours to choose
Product Name: 100W RGB+CCT LED Garden Light ( DMX512 & RDM )
Model No.: D5-G100
Power: 100W
Input Voltage: AC100~240V 50/60Hz
Working Temperature: -20-45°C
Colour Temperature: 2700K~6500K
Luminous Flux: 7500LM
Luminous Efficiency: 75LM/W
CRI: >80
PF: >0.9
Lifespan: 50000 hours
Beam Angle: 25°
IP Rate: IP65
Occupy 5 DMX Address
• Accord with standard DMX512 protocol
• Support the RDM function
• IP65 Waterproof rate
• 16 Million colours to choose
