MiBoxer 2.4G sunrise remote (colour temperature) S1

Product Name: 2.4G Sunrise Remote (Color Temperature)

Model No.: S1-B/S1-W/S1-G

Working Voltage: 3V (AAA battery*2PCS)

Transmitting Power: 6dBm

Standby Power: 20μA

RF: 2.4GHz

Control Distance: 30m

Working Temperature: -10~40℃

Read moreShow less
£13.80 (VAT incl.)
Colour
  • White
  • Black
  • Gray
Last items in stock 2 Items
Close
1 Review
Condition
New
Reference:
P2224_BLACK
Brand:
Love1
Add to wishlist
Add to compare0
Description

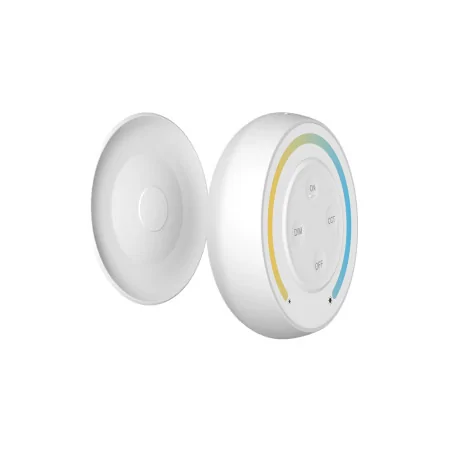

MiBoxer 2.4G sunrise remote (colour temperature) S1

MiBoxer S1 2.4GHz sunrise remote

The newest MiBoxer Sunrise remote is an LED wall-mounted radio remote panel that can control a single zone of CCT lighting. The Mi-Light S1 is a wireless round wall panel that allows dimming and brightening as well as control of the light temperature for CCT installations. The device is intended for surface mounting. The wall panel is powered by two 1.5V AAA batteries.

MiBoxer 2.4G sunrise remote (colour temperature) S1 newest 2021 remote

Application for installation:

CCT - dual white

wireless LED lighting control at home

Characteristic features of the Mi-Light wall panel - S1

Switching ON and switching OFF connected LED lighting

Dimming and brightening of connected LED lighting

Light colour temperature control

Immediate reduction in brightness (night mode)

great wall panel remote with magnetic holder

Features of the Mi-Light wall panel - S1

One zone to use

Power through two AAA batteries

Radio range up to 30 meters

A gentle backlight of the diodes showing the work of the device

Construction adapted for surface mounting

Small dimensions and aesthetic workmanship

24 months warranty

battery-powered remote for CCT lighting in white black and grey

The radio connectivity of the wall panel allows for wireless control at a level of 30 meters in the open area. Communication-based on 2.4GHz frequency ensures stable and synchronized operation of the LED lighting used. The products cooperating with the S1 wall-mounted panel can be found in the compatible MiBoxer products tab.

 compatible LED lighting with MiBoxer S1 remote

Wireless communication - radio route

Wireless radio route which characterizes these wall panels provides comfortable control of LED lighting within 30 meters in an area not exposed to interference. Increasing the radio signal in the installation is possible by using several receiving devices assigned to one zone. These devices are characterized by the transmission of the received signal to the next device, thus increasing the control range of the LED installation (Distance between the receivers cannot be greater than 30m).

S1 Mi-Light remote controller in white black and grey

Night mode - an immediate reduction of light intensity

The night mode function allows you to instantly reduce the LED lighting intensity with a one-touch field. This model is ideally suited to rooms with total dusk, preventing us from blinding the connected lighting. In addition, the controller blocks the change in the brightness intensity level in night mode, making it permanent and not exposed to sudden changes.

perfect fit for any apartment LED lighting remote for CCT lighting

MiBoxer 2.4G sunrise remote (colour temperature) S1 specification

Application For CCT installations (dual white)
Maximum output current Depends on the receiver used
Powering the transmitter 2x 1.5V AAA battery
Number of supported zones/channels 1 zone
Communication method radio
Frequency of radio transmission 2400-2483.5MHz
The range of radio communication Up to 30 meters in the open area
Signal modulation GFSK
Transmission type one-way
Return to previous settings when power is off No
Cooperation with receivers please see the compatible MiBoxer products tab
Power consumption in operating mode 6dBm
Power consumption in standby mode 10uA
Touch buttons Yes
The working temperature of the wall panel -20℃ -:- 60℃
The degree of tightness IP20
The dimensions of the device ⌀80mm*17mm
Installation of a wall panel surface mounting
Colour White, Black, Grey
Declarations RoHS, CE, UKCA
Warranty 24 months

buy online Mi-Light newest products in the UK Coventry MiBoxer 2.4G sunrise remote (colour temperature) S1

MiBoxer 2.4G sunrise remote (colour temperature) S1 package includes

1 x round CCT remote control

1 x user manual

Read moreShow less
Product Details
P2224_BLACK

Data sheet

Supported Zones
1-zone
Light Colour
CCT
Rated Voltage
3V
Features
Dimmable
Ingress Protection
IP20
Model Number
S1-B/S1-W/S1-G
Certification
CE
RoHS
UKCA
Warranty
2 years
Light Source
LED
Communication Range
30m
Communication Method
Radio
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Plastic
Battery Powered
Yes
Battery Type
2 x AAA
Batteries Included?
No
Control Frequency
2.4GHz
Current Type
DC
Power Source
Battery
Colour Changing
No
Class
LED Dimmer
Unit Type
Unit
Installation Area
Indoor
Control Style
Remote Control
Item Length
70mm
Item Width
70mm
Item Weight
0.076kg
Item Height
24mm
Mounting
Free Standing
Wall Mounted
Wholesale Box Quantity
200

Specific References

EAN13
6970602182913
MPN
S1
Shipping Info
Wholesale shipping
S1 - compatible MiBoxer products
