MiBoxer 75W RGB dimming LED driver (WiFi+2.4G) WL3-P75V24

MiBoxer - Alexa

Product Name: 75W RGB Dimming LED Driver (WiFi+2.4G)

Model No.: WL3-P75V24

Working Voltage: AC100V~240V  50/60Hz

Output Voltage: DC24V

Output Current: Max 3A

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

Bluetooth Protocol: Bluetooth 4.2 (low power consumption)

RF: 2.4GHz

Remote Control Distance: 30m

Ta:40℃     Tc:85℃

• Built-in power adapter

• Support “Tuya Smart” app control

• Support music rhythm

• Support third-party voice control (Alexa, Google Assistant)

• 2.4G RF Remote controllable

• 16 Million colours to choose

• Brightness adjustable

Read moreShow less
£45.60 (VAT incl.)
Last items in stock 1 Item
Close
Condition
New
Reference:
P2213
Brand:
Love1
Add to wishlist
Add to compare0
Description

MiBoxer 75W RGB dimming LED driver (WiFi+2.4G) WL3-P75V24

WL3-P75V24 size of a smart controller

The WL3-P75V24 LED controller is dedicated to RGB light sources. It is equipped with a signalling diode that facilitates assigning and setting parameters. The controller has the ability to change the PWM frequency modulation. The built-in WiFi module allows you to control the lighting directly from the application, without using the WL-BOX1 bridge. The repeater function allows you to achieve an infinite range and keep a distance of 30m between successive MiBoxer devices. The product has a built-in power supply.

Compatible remotes

MiBoxer 75W RGB dimming LED driver (WiFi+2.4G) WL3-P75V24 specification

Application For RGB (multicolour) installation
Maximum output current 3A
Input Voltage 230V DC
Output Voltage 24V DC
Number of outputs 3 channels (V+)
Controlling method Radio, Wi-Fi, Bluetooth
Controlling range up to 30 meters in an open area
Model number WL3-P75V24
Control frequency 2.4GHz
Bluetooth Protocol Bluetooth 4.2 (low power consumption)
WiFi Standard IEEE 802.11b/g/n 2.4GHz
Working temperature -20 – 60℃
Compatible devices please see the compatible MiBoxer products tab
Return to previous settings after power off Yes

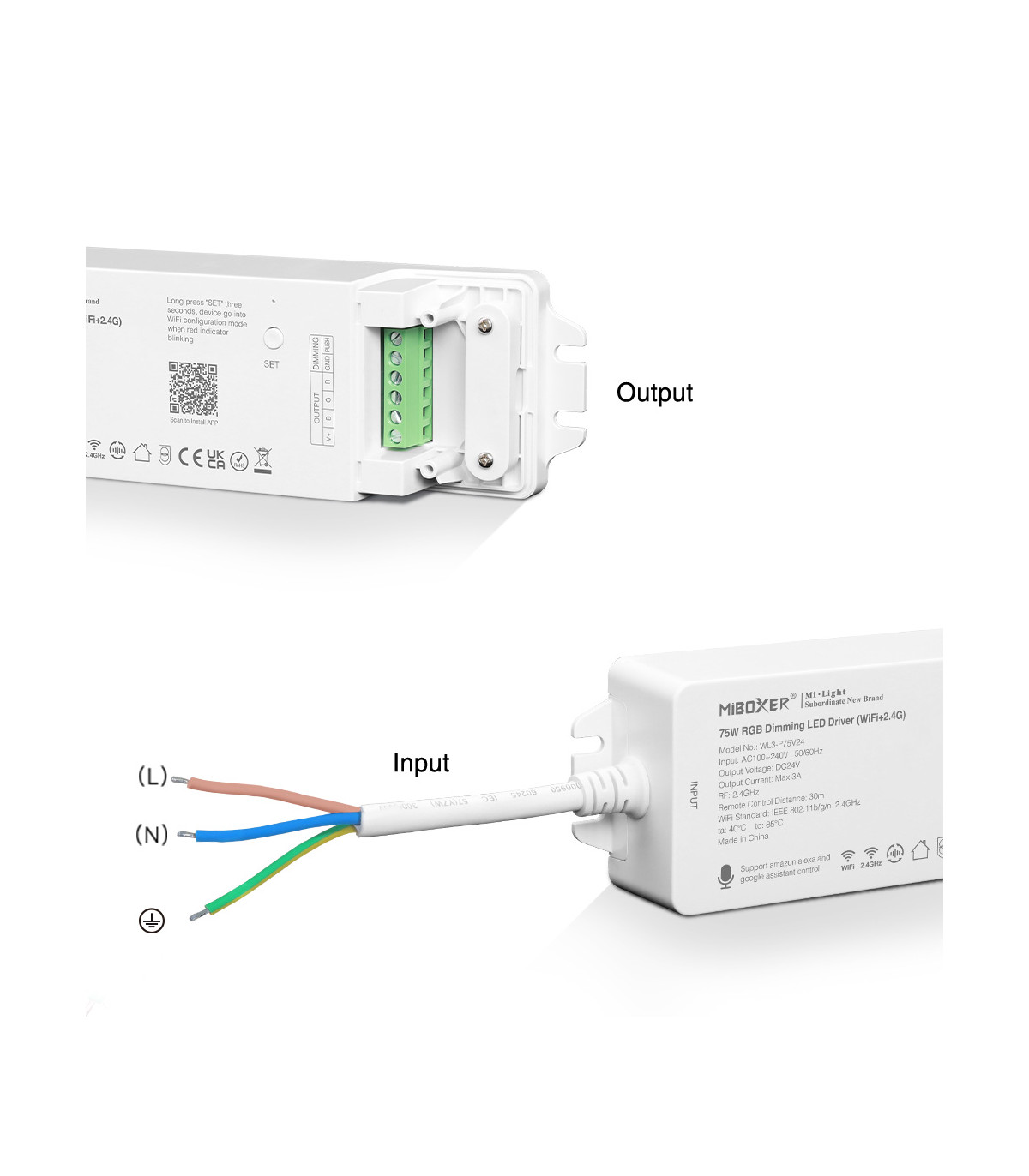

Input connector (power supply) 3-core (Live, Neutral, Ground) bare wire cable
Output connector (signal) Screw terminals for bare wires
Dimensions[mm] L190 x W53 x H32
Certification RoHS, CE, UKCA
Warranty 2 years

MiBoxer 75W RGB dimming LED driver (WiFi+2.4G) WL3-P75V24 package includes

1 x RGB (multicolour) LED strip controller with built-in power supply

1 x User manual (English)

Read moreShow less
Product Details
P2213

Data sheet

Rated Power
75W
Light Colour
RGB
Rated Voltage
230V
Model Number
WL3-P75V24
Certification
CE
RoHS
UKCA
Warranty
2 years
Pack Quantity
1
Current Type
AC in / DC out
Class
LED Dimmer
Output Voltage
24V

Specific References

EAN13
6970602182012
MPN
WL3-P75V24
