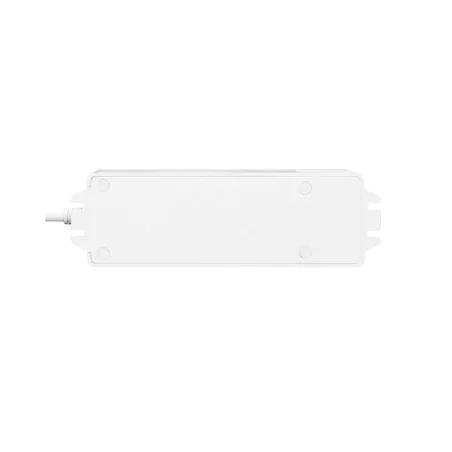

MiBoxer 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24

MiBoxer - Alexa

Product Name: 75W RGB+CCT Dimming LED Driver (WiFi+2.4G)

Model No.: WL5-P75V24

Working Voltage: AC100V~240V  50/60Hz

Output Voltage: DC24V

Output Current: Max 3A

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

Bluetooth Protocol: Bluetooth 4.2 (low power consumption)

RF: 2.4GHz

Remote Control Distance: 30m

Ta:40℃     Tc:85℃

• Built-in power adapter

• Support “Tuya Smart” app control

• Support music rhythm

• Support third-party voice control (Alexa, Google Assistant)

• 2.4G RF Remote controllable

• 16 Million colours to choose

• Brightness and colour temperature adjustable

Read moreShow less
£45.60 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Close
1 Review
Condition
New
Reference:
P2215
Brand:
Love1
Add to wishlist
Add to compare0
Description

MiBoxer 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24

MiBoxer 75W RGB+CCT Dimming LED Driver (WiFi+2.4G) product size technical image

SMART RECEIVER MI-LIGHT RGB+CCT WI-FI BLUETOOTH 75W WITH 24V POWER SUPPLY

The intelligent controller is a product for wireless control of coloured LED lighting with white colour with adjustable colour. The Radio remote control allows you to get any colour. Communication with the receiving device takes place via radio, which provides a 30-meter wireless control in the area not exposed to interference.

The controller is built to meet the requirements of consumers - it communicates with virtually any smartphone, and thus the controller can be run with its own voice thanks to Alexa and Google Assistant applications.

The offered controller is an additional receiver to the set with the possibility of expansion.

Mi-Light 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24

Benefits:

Supports RGB+CCT tapes

Radio communication with remote control/mobile phone control

Built-in Wi-Fi and Bluetooth modules to control applications such as Google Assistant or Amazon Alexa

Can be combined with other controllers

Maximum output current 3A,

CE, RoHS, UKCA certificates,

2-year manufacturer's warranty,

multicolour + white LED strip controller suitable for office, home, hotel, restaurant smart lighting

WiFi controler with bluetooth advance technology low power consumption LED strips

get any colour you want on your LED tape compatible with RGBCCT ribbons

easy control of brightness saturation and colour for LED tapes

control your RGBCCT LED light strips via mobile app Tuya Smart MiBoxer Smart and Smart Life application

smart LED strip controller compatible with iOS and Android devices

be smart and voice control your lights at home office restaurant or hotel

voice control app control and remote control for LED strips make your lighting smart

set scenes and automations in the app control LED strips without hassle

music control for LED lighting strips enable disco mode flashing strobe change colours

advanced wireless technology 3G 4G 5G 6G control LED strips

the easiest control and installation of LED lighting strips

set a timer convenient ON/OFF of LED lights

do not disturb mode smart LED lights advanced technology newest product Tuya Smart

create unlimited LED lighting project without any problem

MiBoxer product made of highest quality materials in white colour

connect your LED light strips straight to the mains UK stock

Compatible remotes

MiBoxer 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24 specification

Application For RGB+CCT (multicolour + dual white) installation
Maximum output current 3A
Input Voltage 230V DC
Output Voltage 24V DC
Number of outputs 5 channels (V+)
Controlling method Radio, Wi-Fi, Bluetooth
Controlling range up to 30 meters in an open area
Model number WL5-P75V24
Control frequency 2.4GHz
Bluetooth Protocol Bluetooth 4.2 (low power consumption)
WiFi Standard IEEE 802.11b/g/n 2.4GHz
Working temperature -20 – 60℃
Compatible devices please see the compatible MiBoxer products tab
Return to previous settings after powering off Yes
Input connector (power supply) 3-core (Live, Neutral, Ground) bare wire cable
Output connector (signal) Screw terminals for bare wires
Dimensions[mm] L190 x W53 x H32
Certification RoHS, CE, UKCA
Warranty 2 years

MiBoxer 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24 UK stock wholesale packaging quick shipping

MiBoxer 75W RGB+CCT dimming LED driver (WiFi+2.4G) WL5-P75V24 package includes

1 x RGB+CCT (multicolour + multi-white) LED strip controller with built-in power supply

1 x User manual (English)

Read moreShow less
Product Details
P2215

Data sheet

Rated Power
75W
Light Colour
RGB+CCT
Rated Voltage
230V
Model Number
WL5-P75V24
Certification
CE
RoHS
UKCA
Warranty
2 years
Pack Quantity
1
Current Type
AC in / DC out
Class
LED Driver
Output Voltage
24V

Specific References

EAN13
6970602181985
MPN
WL5-P75V24
Shipping Info
Wholesale shipping
