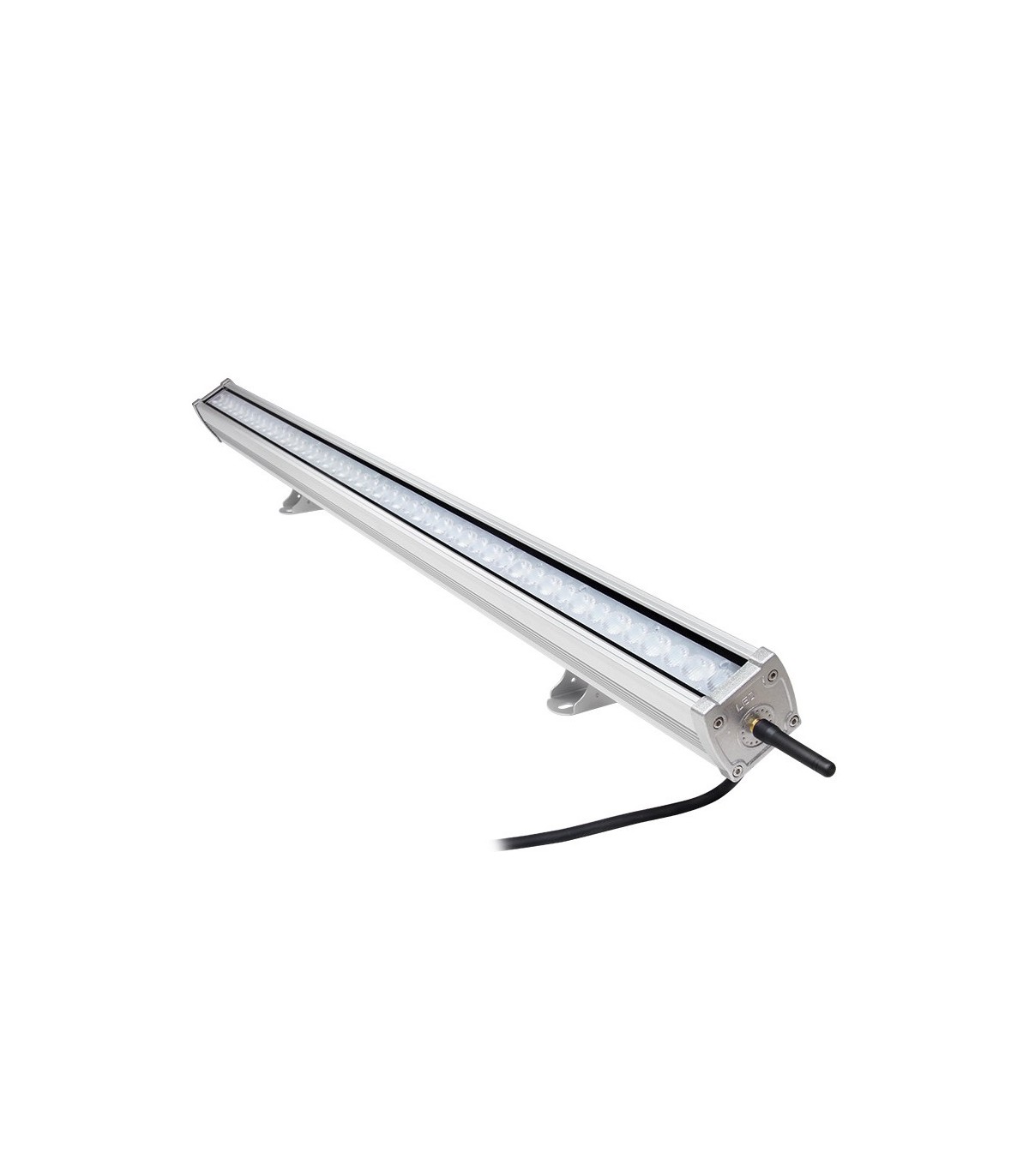

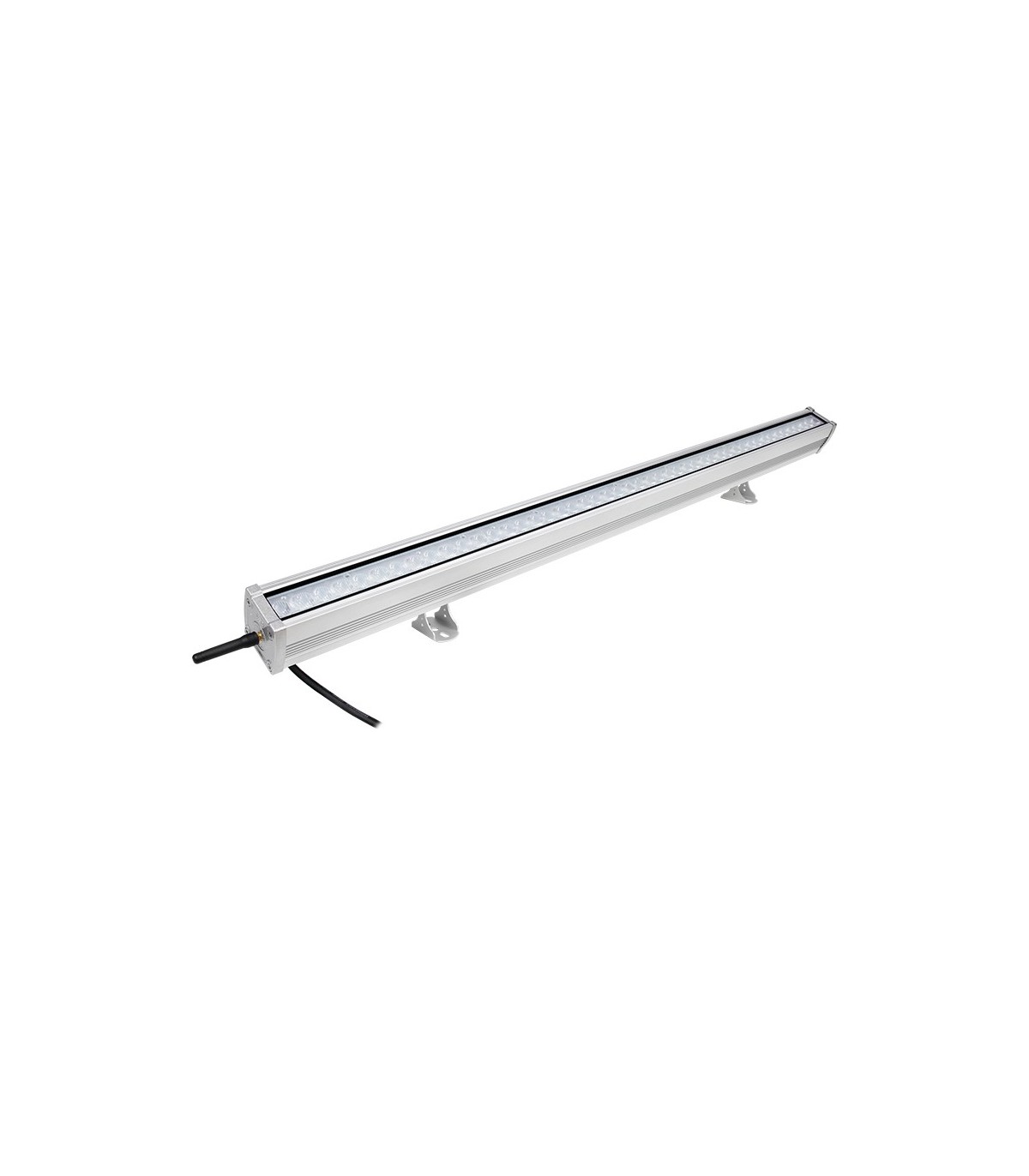

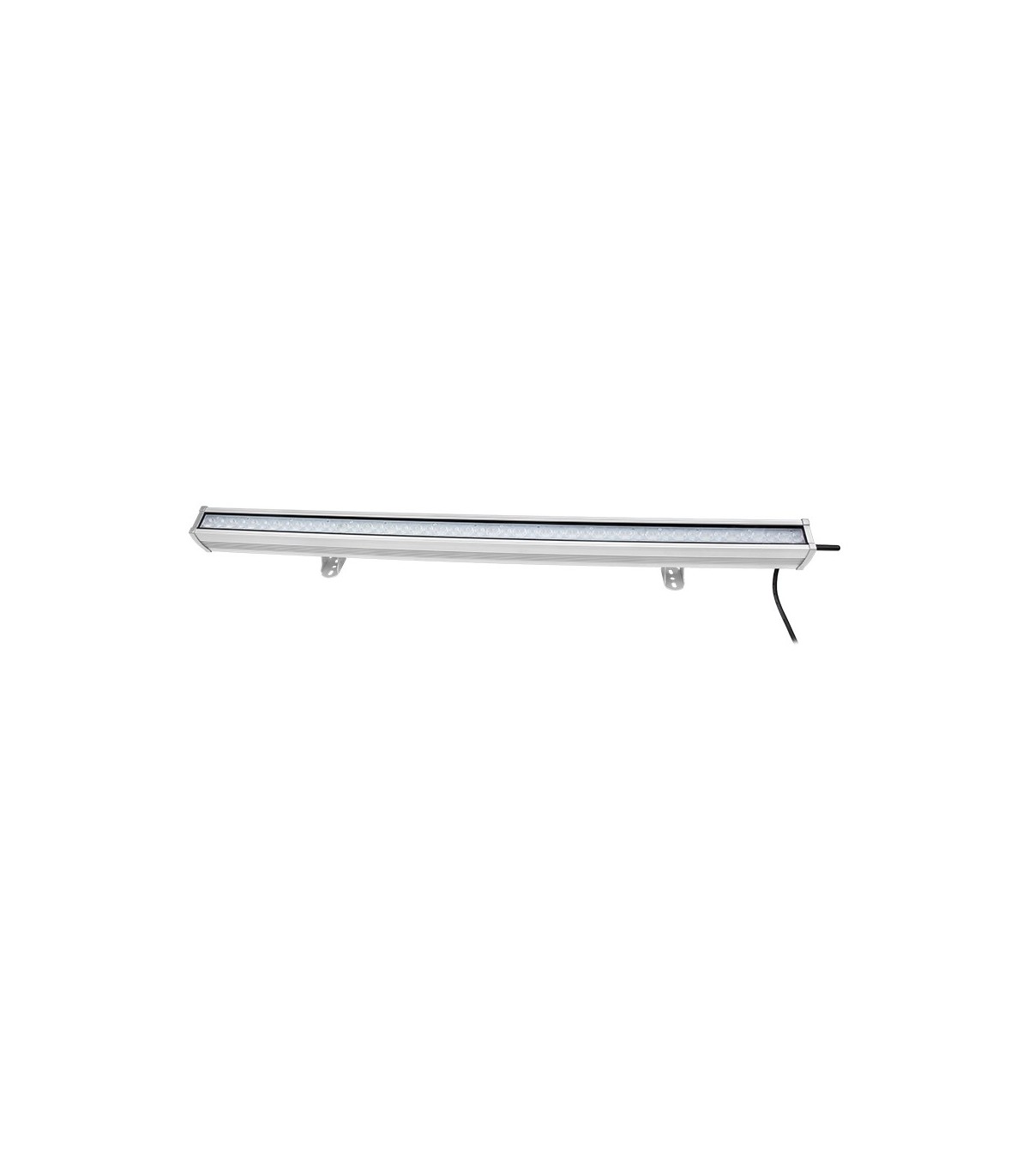

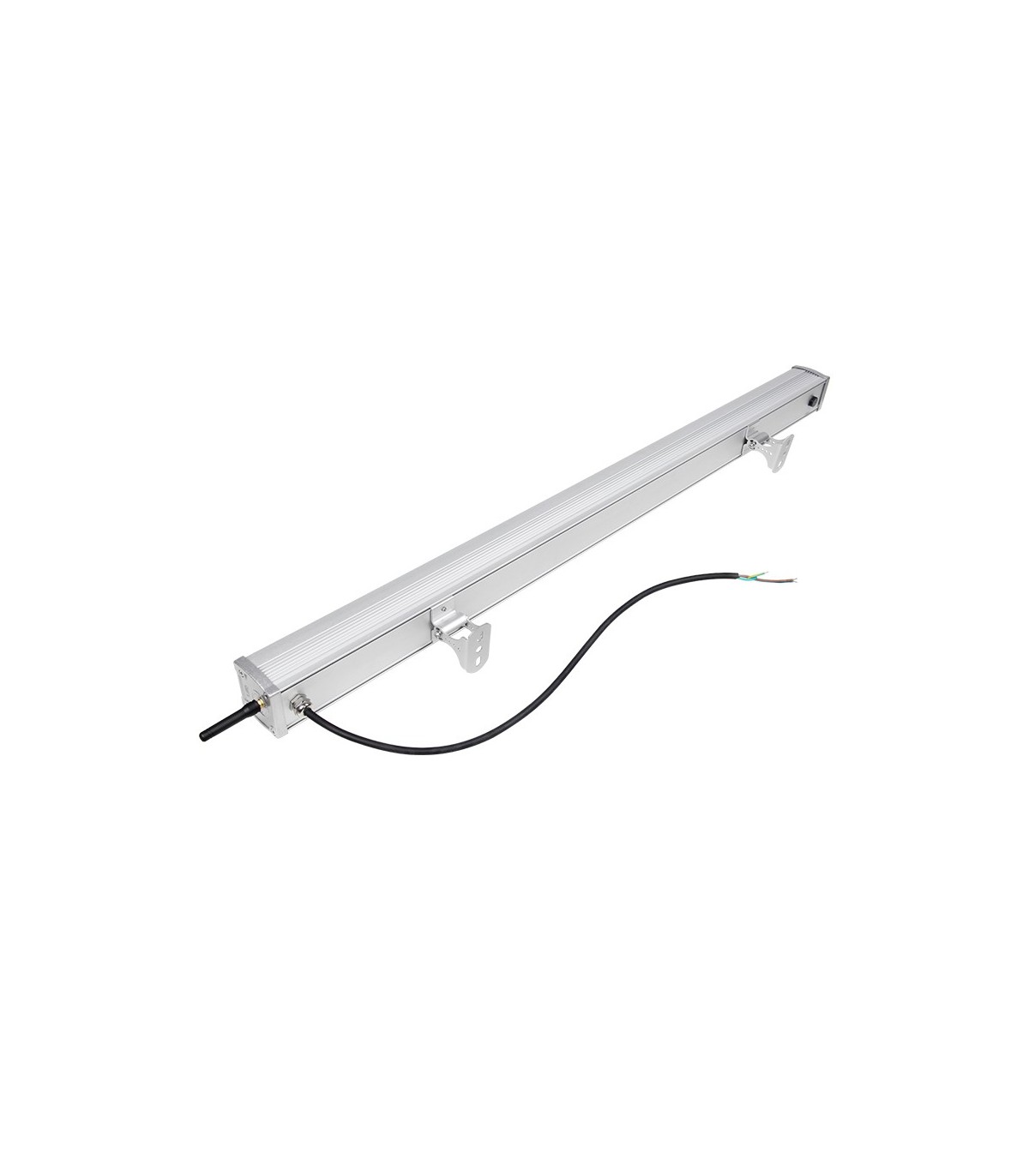

MiBoxer 24W RGB+CCT LED wall washer light LoRa 433MHz RL1-24L

Product Name: 24W RGB+CCT LED Wall Washer Light ( LoRa 433MHz )

Model No.: RL1-24L

Power: 24W

Input Voltage: AC100~240V 50/60Hz

Working Temperature: -20~60℃

Colour Temperature: 2700K~6500K

Luminous Flux: 1800LM

Light Efficiency: 75LM/W

CRI: >80

PF: >0.9

RF: 433MHz

Modulation Method: LoRa spread spectrum

Control Distance: 2000m

Lifespan: 50000h

Beam Angle: 15*60°

Illumination Distance: >15m

IP Rate: IP66

• 433MHz remote controllable

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• Use LoRa SPSP modem technology

• Maximum control distance of 2000m

• IP66 waterproof

Read moreShow less
£169.20 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Add to wishlist
Add to compare0

MiBoxer 24W RGB+CCT LED wall washer light LoRa 433MHz RL1-24L

 RL1-24L wall washer size

The RL1-24L linear floodlight is an intelligent 24W RGB+CCT LED light source powered from the mains with 100-240V AC voltage. It is characterized by a brightness of 1800LM, the colour rendering index is CRI>80, which guarantees high-quality colour rendering, additionally, the water resistance has been raised to the IP66 level which allows the use of lighting outside the building. Linear floodlight (Washer Light) uses a long-range wireless communication system (LoRa 433MHz). The floodlight allows for smooth adjustment of brightness, light colour, saturation and the colour temperature of white light in the range of 2700-6500K (from warm to cool white). The linear LED floodlight can be controlled with a FUT086 remote control or a smartphone application (Wi-Fi bridge WL-433 required). The LED RGB+CCT MiBoxer floodlight can be controlled from up to 4 different devices simultaneously.

LoRa MiBoxer wall washer 433MHz

The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.

MiBoxer wall washer 433MHz LoRa

Features of MiBoxer 24W RGB+CCT LED wall washer light LoRa 433MHz RL1-24L

The casing is made of high-quality aluminium

Obtaining any RGB colour

Obtaining any CCT colour temperature

Radio communication range of 2000 meters

Alternative control via Wi-Fi

Retransmission of the received radio signal

Automatic synchronization between devices

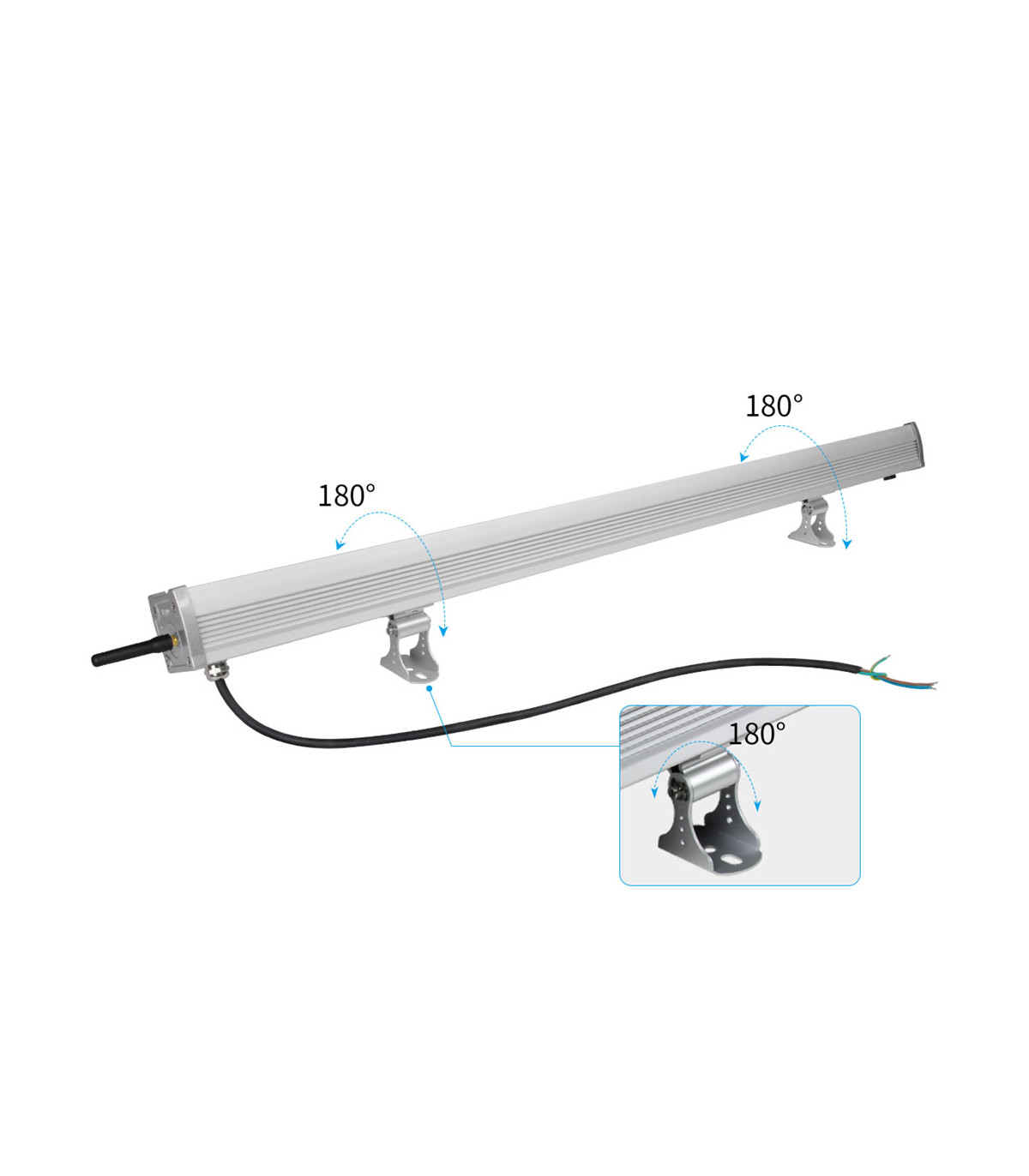

The mounting brackets allow surface installation

Airtight housing IP66

LoRa SPSP modern lighting technology

Connectivity of wall washer from the MiBoxer is characterized by wireless communication realized via radio with a remote control device or a wall panel. The range of such a connection is 2000 meters in an open area, provided that it is not exposed to various types of interference. When using more devices (wall washers), we can create LED installations based on unlimited range, thanks to the technology of signal retransmission. This signal will be automatically synchronized. The condition of such work is to place another receiving device within 2000 meters.

CCT control wall washer
Multicolour wall washer

Full control - cooperation with voice control

voice controlled wall washer outdoor lighting

The RL1-24L wall washer allows voice control via third-party devices such as Amazon Alexa and Google Assistant. This basic form of communication provides stable control of LED lighting within 2000 meters in an open area with the use of FUT086. In addition, most products can be expanded with an alternative form of control, through the use of the WL-433 module, which allows you to control the RL1-24L via mobile application and Voice Control. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.

High hermeticity - ideal for external applications

RL1-24L water resistant wall washer

The external decorative arrangement of objects using a MiBoxer wall washer is possible by using a hermetic enclosure of the device. The structure of the device constructed in this way allows working in difficult weather conditions, which do not expose the device to permanent damage. The degree of hermeticity in the MiBoxer wall washer is achieved at the IP66 level.

RL1-24L wall washer application

MiBoxer 24W RGB+CCT LED wall washer light LoRa 433MHz RL1-24L specification

Rated voltage 100 ~ 240VAC / 50 ~ 60Hz
Rated power 24W
Rated luminous flux 1800lm
The colour temperature of the light 2700-6500K
Colour Rendering Index CRI>80
The nominal glow angle 15*60°
Length of luminous flux >15m
Dimmable Yes
The possibility of obtaining a colour Yes
Lamp power factor >0.9
Controlling RF 433MHz
Alternative control Via Wi-Fi
Cooperating devices See the compatible MiBoxer products tab
Source of light SMD diodes
Housing Aluminium
Dimensions 1017mm x 64mm x 62mm
Working temperature -20~60℃
Lifespan 50000 hours
Declarations/Certificates CE, RoHS, UKCA
Warranty 24 months

 MiBoxer RL1-24L packaging size

MiBoxer 24W RGB+CCT LED wall washer light LoRa 433MHz RL1-24L package includes

1 x LoRa Wall washer in a retail packaging

1 x Manuals
