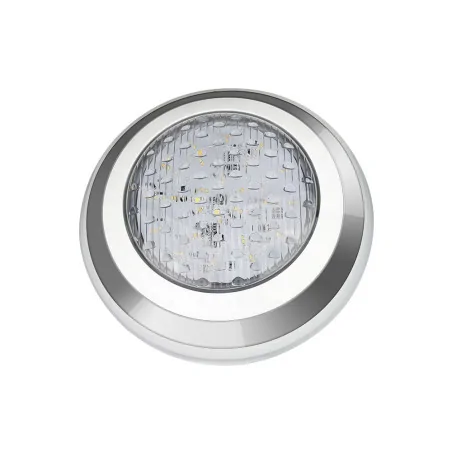

Product Name: 27W RGB+CCT Wall-mounted Underwater Light (LoRa 433MHz)
Model No.: UW02
Power: 27W
Input Voltage: AC12V/DC12~24V
Working Temperature: -20~45℃
RF: 433MHz
Modulation Method: LoRa spread spectrum
Control distance: 50m (Lamps into 0.5m underwater)
Colour temperature: 2700K~6500K
Luminous Flux: 2000LM
Light Efficiency: 75LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 160°
IP Rate: IP68
Housing Material: 316 Stainless Steel+PC
• 433MHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Use LoRa SPSP modem technology
• Maximum control distance 50m (Lamps into 0.5m underwater)
• IP68 waterproof
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
LED pool lamp RGB+CCT 27W 12-24V - UW02 - MiBoxer is an underwater LED lamp, characterised by high quality and maximum safety. It has a sealed housing with an increased degree of hermetic protection IP68, made of 316 stainless steel, which is highly resistant to corrosion and tarnish. It is powered by low voltage 12-24VDC, making it completely safe for use. The use of multi-coloured SMD LEDs provides an adequate luminous flux of 2000lm with low power consumption and a long lifespan of the LEDs. The UW02 LED swimming pool lamp is controlled using a wireless radio system, utilising the LoRa technology. Alternatively, access can be obtained using Wi-Fi and voice commands. Works with MiBoxer series controllers.
The UW02 underwater lamp has a handle made of 316 stainless steel with an admixture of molybdenum, which protects it against harsh conditions like water. The UW02 pool luminaire can be mounted in two different ways – wall-mounted to the surface or installed directly next to the ground. It is characterised by a wide lighting angle, and when combined with water, it creates an amazing light effect. The UW02 pool lamp is ideal for city water bodies, swimming pools, ponds, or fountains.
• Suitable for underwater installations
• Safely powered by low voltage 12-24VDC
• Possibility to control any RGB colour and light temperature from 2700-6500K
• Utilises LoRa 433MHz long-range communication technology
• Wireless control up to 50 metres (max 0.5m underwater)
• Alternative control via Wi-Fi and voice system
• Housing and components made of 316 stainless steel
• High IP68 waterproof rating
• 160-degree wide beam angle
• Low energy consumption
• Long lifespan of the LEDs
• Two mounting options (wall and ground)
The innovative solution of the pool lamp includes integration with Amazon Echo and Google Home voice systems. The intelligent system connects to our app, providing additional control via Alexa or Google Assistant using voice commands. With the additional purchase of a WL-433 module, wireless control through the Wi-Fi network becomes available.
The LoRa series products are designed for outdoor applications, offering a very large data transmission range by using 433MHz radio communication. The range is significantly larger compared to standard MiBoxer products, reaching up to 2000 metres in open areas, and up to 50 metres underwater. These products are highly energy-efficient and provide long-range control without frequent battery replacements, ensuring practicality for installations. This series includes pool luminaires, garden luminaires, and linear floodlights suitable for gardens, swimming pools, public buildings, and municipal water reservoirs.
Rated voltage | AC12V / DC12~24V |
Rated power | 27W |
Rated luminous flux | 2000lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 160° |
Housing Material | 316 Stainless Steel+PC |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | Radio (wirelessly - 433MHz) |
Control distance | 2000m |
Alternative control | Via Wi-Fi with WL-433 |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Ingress Protection | IP68 |
Lifespan | 50,000 hours |
Declarations / Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
1 x Underwater light in retail packaging
1 x Manuals
Data sheet
