Product Name: 12W RGB+CCT Magnetic Grille Light (Zigbee 3.0 + 2.4GHz)
Model No.: MG5-12N-ZL
Working Voltage: 48V
Power: 12W
Working Temperature: -10~40°C
Colour Temperature: 2700K~6500K
Control Distance: 50m (open area)
Beam Angle: 24°
Communication Protocol: Zigbee 3.0 + 2.4GHz
• Product follows Zigbee 3.0 standard protocol
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Control distance: 50m (open area)
• Powered by rail, strong magnetism

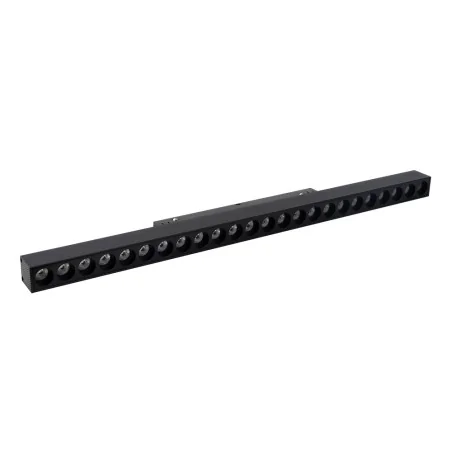

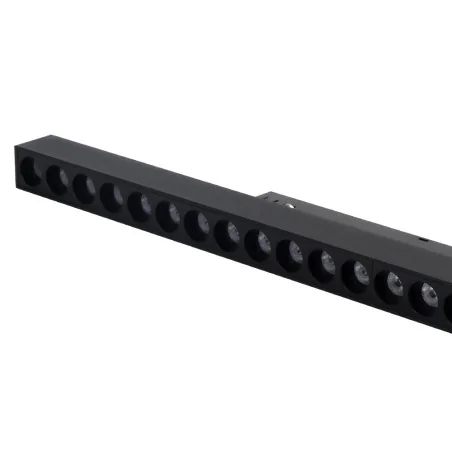

MiBoxer 12W RGB+CCT magnetic grille light (Zigbee 3.0) MG5-12N-ZL
The MiBoxer LED rail lamp is made of high-quality aluminium equipped with a built-in light source in the form of SMD LEDs, designed for mounting on magnetic rail systems. The fundamental advantage that distinguishes the track reflector is the ability to set the luminaire in any position on the track. All light sources can be freely moved and plugged in depending on the needs. This solution gives infinite possibilities for lighting configuration according to your preferences and unlimited creativity.
The LED track light is attached to the track by means of an adapter with magnets that connects to the steel flat bars in the tracks. Thanks to this, no additional devices or tools are needed to assemble the lamps. The assembly itself is extremely intuitive - magnetic LED luminaires are enough to be placed in the rail, which will immediately connect to the magnet in the luminaire.
The simple form and product construction as well as the universal colour make the track lamps perfect for modern and modernist arrangements, both in the case of home installations as well as in commercial facilities such as restaurants or offices. Track light can be mounted on the track in a straight line, but also in other different preferred shapes, thanks to which it will be a perfect complement to many interiors.
With RGB colour and temperature tuning (CCT) options, you can customise the lighting to suit your mood and preferences. The Radio Frequency allows controlling the lamp via many remotes which are listed below and with Zigbee compatibility, you can control the light remotely via your smartphone or voice commands. The light is also energy-efficient and long-lasting, making it an eco-friendly choice for your home. Experience the convenience and flexibility of the MiBoxer Magnetic Grille Light - Zigbee today!
Features of magnetic track lamp
Any position configuration
Modern design
Solid aluminium body
Ease of assembly
A multitude of applications
Careful and aesthetic finish
Multi-colour and multi-white in one lamp
Wireless control via mobile app or Voice Control
Energy-efficient
Long-lasting
Compatible RF remotes
Compatible Zigbee remotes
MiBoxer 12W RGB+CCT magnetic grille light (Zigbee 3.0 + 2.4GHz) MG5-12N-ZL specification
Product Name | 12W RGB+CCT Magnetic Grille Light (Zigbee 3.0 + 2.4GHz) |
Rated power | 12W |
Light temperature range | 2700-6500K |
Rated voltage | DC48V |
Nominal light output | 900lm |
Colour rendering index | >80 |
Beam angle | 24° |
Lamp power factor | >0.5 |
Remote control with | Mi-Light remote control (see the compatible MiBoxer products tab) |
Communication method | Zigbee 3.0 + 2.4GHz |
Communication range | Zigbee: 50m (open area), 2.4G RF Remote: 30m |
Product Compatibility | See the compatible MiBoxer products tab |
Dimmable | Yes |
Dimming range | +/- 10% – 100% |
Cooling | Aluminium casing |
Protective cover | Yes (plastic) |
Wireless Technology | Zigbee 802.15.4 |
Lifespan | 50,000 hours |
Ingress Protection | IP20 |
Model number | MG5-12N-ZL |
Dimensions[mm] | L436 x W22 x H42.5 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer 12W RGB+CCT magnetic grille light (Zigbee 3.0 + 2.4GHz) MG5-12N-ZL package includes
1 x 12W smart LED Zigbee+RF track light in a retail box
Data sheet
- Rated Power
- 12W
- Light Colour
- RGB+CCT
- Rated Voltage
- 48V
- Luminous Flux
- 900lm
- CRI
- Ra≥80
- Beam Angle
- 24°
- Ingress Protection
- IP20
- Model Number
- MG5-12N-ZL
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Light Source
- LED
- Communication Range
- 50m
- Communication Method
- Zigbee 3.0 + 2.4GHz
- Operating Temperature
- -10~40℃
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Control Frequency
- 2.4GHz
- Energy Efficiency Rating (A-G)
- F
- Item Length
- 436mm
- Item Width
- 22mm
- Item Weight
- 0.31kg
- Item Height
- 42.5mm
