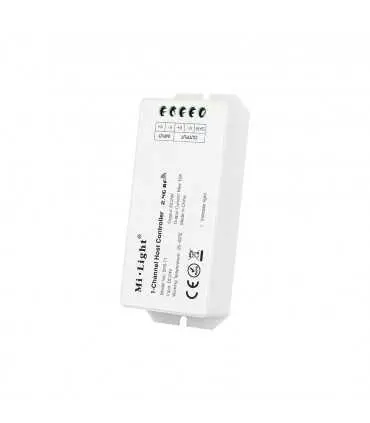

Product Name: 1-Channel Host Controller
Model No.: SYS-T1
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Controlling Distance: 30m
The bus for the SYS - 15A 24V - SYS-T1 - MiBoxer system is a device that performs the functions of the main control panel that manages the actuators using the DATA wired signal. The executive device is dedicated MiBoxer (MiLight) luminaires that are used outdoors, such as swimming pool, garden, inrun luminaires or linear floodlights. On the other hand, the signal itself is received using standard MiBoxer (MiLight) wireless controllers using a radio route at the level of 2.4Ghz within a communication range of up to 30 meters. This signal is transmitted by wire up to a maximum of 300 meters, ensuring a stable and long signal. The bus has a low voltage of 24VDC at the input and output, so the devices connected to it are completely safe. It is mounted on the surface. The bus allows us to long and synchronized the work of many MiBoxer devices, using our internal radio remote controls or wall panels.
The installation can also include an SYS system amplifier, which provides a significant expansion of the installation. It allows you to extend the maximum load by another 15A and transmit the signal by another 300 meters. Up to 50 actuators can be connected to one bus or repeater of the SYS system.
Features of the SYS bus:
Acts as the main switchboard
Dedicated to external lighting fixtures MiLight (MiBoxer)
Communication with the bus takes place via the 2.4 GHz radio route
Alternative access to the bus via WiFi and voice commands
It enables signal transmission by wire up to 300 meters
A fast and stable signal transmitted to external luminaires
Powered by low voltage 24VDC
It has a safe low voltage of 24VDC at the output
The maximum load on the bus is 360W
The possibility of expanding the installation by using additional amplifiers
A hermetically sealed casing protected against weather conditions
Surface mounted
