Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm

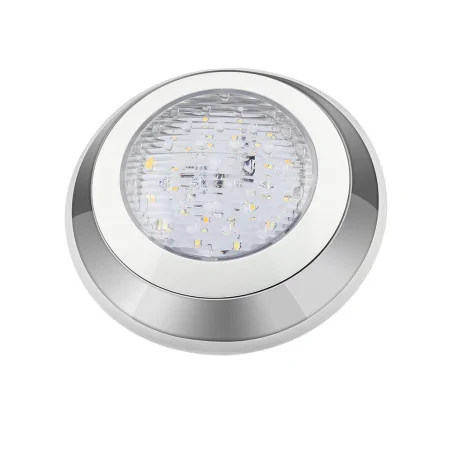

Product Name: 12W RGB+CCT LED Underwater Light (Subordinate Lamp)
Model No.: SYS-RW1
Input Voltage: DC24V
Power: 12W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 1000LM
Light Efficiency: 85LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 160°
IP Rate: IP68
Housing Material: Stainless Steel+PC
• Wireless Remote Controlling by connecting the “Host Controller”
• 16 million colours change
• Colour temperature, brightness and saturation are adjustable randomly
• IP68 waterproof
The SYS-RW1 submersible lamp is made of high-quality stainless steel. In order to ensure the highest tightness, silicone rubber was used for sealing, and the electronics were additionally placed in a resin mass to ensure its greatest water resistance. The underwater lamp has an IP68 tightness class. After connecting to the SYS-T1 bus, we can wirelessly control the device's operating parameters, such as changing colours, colour temperature, brightness and saturation. The product can be used in swimming pools, ponds, spray fountains, etc.
Note: The SYS-T1 bus is not included and must be purchased separately to ensure proper system operation.
Specification
Input voltage: DC24V
Power: 12W
Working temperature: -20 ~ 60 ℃
CCT: 2700 ~ 6500K
Brightness: 1000lm
Lm/W: 85lm/W
CRI:> 80
Lifetime: 50000h
Beam angle: 160°
Communication: SYS-T1 / SYS-PT1 bus
IP68 waterproof grade
Housing: stainless steel + PC
Data sheet
Specific References
Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: T Type 3-Pin Connector
Model No.: AM-GP-20NT3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rating: IP68
Application: Outdoor lights
Size: 102*66*25mm
Product Name: X Type 3 Pin Connector
Model No.: AM-GP-20NX3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: 102*102*25mm
Product Name: 1-Channel signal power amplifier
Model No.: SYS-T2
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Amplify the power and signal of the “1-channel Host Controller” to synchronously control more lamps
Product Name: 1-Channel Host Controller
Model No.: SYS-T1
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Controlling Distance: 30m
