Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm

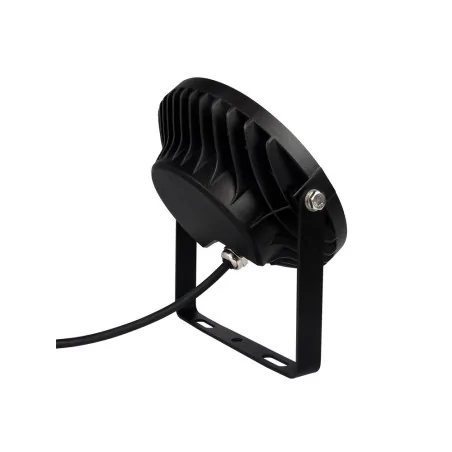

Product Name: 15W RGB+CCT LED Garden Light (Subordinate Lamp)
Model No.: SYS-RC2
Input Voltage: DC24V
Power: 15W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 1500LM
Light Efficiency: 80LM/W
CRI: >80
Lifespan: 50000h
Illumination distance: >10m
Beam Angle: 15°
IP Rate: IP66
Housing Material: Stainless Steel+PC
• Wireless Remote Controlling by connecting the “Host Controller”
• 16 million colours change
• Colour temperature, brightness and saturation are adjustable randomly
• IP66 waterproof
Garden luminaire RGB+CCT 15W - 24VDC - in-ground - SYS-RC2 - Sys-series is a garden lamp, used to illuminate various types of arrangements, i.e. lighting of gardens, parks or facades of buildings. It was designed for installation in soft ground, i.e. earth, sand or gravel. The garden luminaire has high-quality LEDs, allowing for a full range of RGB colours and any CCT colour temperature. The narrow beam angle ensures the precise directing of light to a given object while maintaining a long beam of light with a value of 1500lm. The garden luminaire SYS-RC2 is wired to the SYS series system bus, which is controlled using standard MiBoxer (MiLight) transmitting devices. Alternatively, access can be obtained using Wi-Fi and voice commands. Works with MiBoxer series controllers.
Housing made of high-quality aluminium
Obtaining any RGB colour
Obtaining any CCT colour temperature
Radio communication with the bus in the range of 30 meters
Alternative Wi-Fi control
It uses a wired system to form one common network
The luminaire is wired and synchronised with the bus within 300 meters
The mounting bracket that allows mounting to the ground
Tight hermetic housing IP66
Narrow-angle of illumination and a long beam of light
Diffuser with no glare effect
Rated voltage | DC24V |
Rated power | 15W |
Rated luminous flux | 1500lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 15° |
Length of luminous flux | > 10m |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | SYS Host Control |
Alternative control | Voice control (Amazon Alexa/Google Assistant) |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 180mm (112,5mm) x 51mm x 170mm (total height, handle height, length, width) |
Dimensions of the mounting bracket | Ø35mm, 161.5mm (diameter, height) |
Lifespan | 50000 hours |
Declarations / Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
1 x SYS garden light in a retail packaging
1 x Mounting bracket
1 x Screw
1 x Manuals
Data sheet
Specific References
Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: T Type 3-Pin Connector
Model No.: AM-GP-20NT3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rating: IP68
Application: Outdoor lights
Size: 102*66*25mm
Product Name: X Type 3 Pin Connector
Model No.: AM-GP-20NX3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: 102*102*25mm
Product Name: 1-Channel signal power amplifier
Model No.: SYS-T2
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Amplify the power and signal of the “1-channel Host Controller” to synchronously control more lamps
Product Name: 1-Channel Host Controller
Model No.: SYS-T1
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Controlling Distance: 30m
