Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: 5W RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD1
Input Voltage: DC24V
Power: 5W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 350LM
Light Efficiency: 70LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 30°
IP Rate: IP68
• Wireless Remote Controlling by connecting the “Host Controller”
• 16 million colours change
• Colour temperature, brightness and saturation are adjustable randomly
• IP68 waterproof

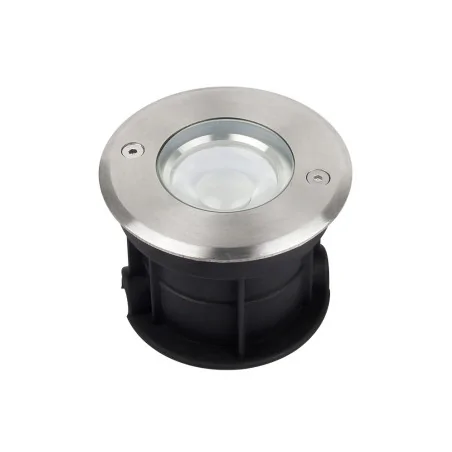

LED RGB+CCT 5W 24V lamp - SYS-RD1 - SYS-Series, is an LED driveway lamp made of high-quality components designed to be built into a stable surface. The housing is tightly protected against moisture and reinforced against mechanical damage. In its structure, it has multi-colour LEDs in which we can obtain any RGB colour and a colour temperature of 2700K-6500K. The RD1 LED overrun lamp is wired to the SYS series system bus, which is controlled using standard MiBoxer (MiLight) transmitting devices. Alternatively, access can be obtained using Wi-Fi and voice commands. Works with MiBoxer series controllers. The LED SYS-RD1 overrun lamp will find its application in lighting the driveway, garage, various types of communication alleys, or as a paving stone enclosure
Application for placement in a stable surface
Safely powered by low voltage 24VDC
Possibility to control any RGB colour and light colour in the range of 2700-6500K
Radio communication with the bus in the range of 30 meters
It uses a wired system to form one common network
The luminaire is wired and synchronized with the bus within 300 meters
Alternative access via wifi and voice system
Housing made of aluminium
Increased resistance of the lampshade to weather conditions
Increased resistance to mechanical damage
Very high hermeticity of IP68
Low energy consumption
Long life of the LEDs
Rated voltage | DC24V |
Rated power | 5W |
Rated luminous flux | 350lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 30° |
Working Temperature | -20~60℃ |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | SYS Host Control |
Luminous Efficiency | 70lm/W |
Alternative control | Via Wi-Fi |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 100mm x 100mm x 74mm |
Ingress Protection | IP68 |
Lifespan | 50,000 hours |
Declarations / Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
1 x Underground light in a retail packaging
1 x Manuals
Data sheet
Specific References
Product Name: I Type 3 Pin Connector
Model No.: AM-GP-20NI3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: Φ24.2*79mm
Product Name: T Type 3-Pin Connector
Model No.: AM-GP-20NT3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rating: IP68
Application: Outdoor lights
Size: 102*66*25mm
Product Name: X Type 3 Pin Connector
Model No.: AM-GP-20NX3N
Wire Diameter: 3mm-12mm
Material: Nylon
IP Rate: IP68
Application: Outdoor lights
Size: 102*102*25mm
Product Name: 1-Channel signal power amplifier
Model No.: SYS-T2
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Amplify the power and signal of the “1-channel Host Controller” to synchronously control more lamps
Product Name: 1-Channel Host Controller
Model No.: SYS-T1
Input Voltage: DC24V
Working Temperature: -20~60°C
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Controlling Distance: 30m
Product Name: 9W RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD2
Input Voltage: DC24V
Power: 9W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 700LM
Light Efficiency: 80LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 15°
IP Rate: IP68
• Wireless Remote Controlling by connecting the “Host Controller”
• 16 million colours change
• Colour temperature, brightness and saturation are adjustable randomly
• IP68 waterproof
