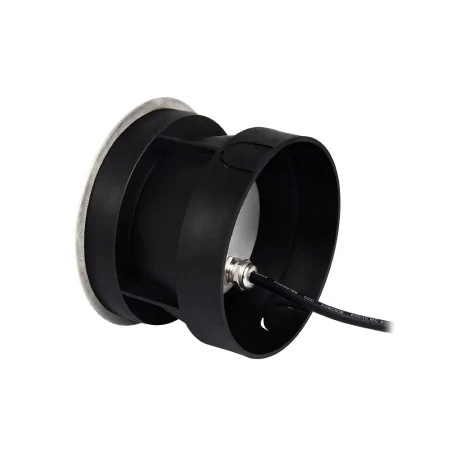

Product Name: 9W RGB+CCT LED Underground Light (Subordinate Lamp)
Model No.: SYS-RD2
Input Voltage: DC24V
Power: 9W
Working Temperature: -20~60℃
Colour temperature: 2700~6500K
Luminous Flux: 700LM
Light Efficiency: 80LM/W
CRI: >80
Lifespan: 50000h
Beam Angle: 15°
IP Rate: IP68
• Wireless Remote Controlling by connecting the “Host Controller”
• 16 million colours change
• Colour temperature, brightness and saturation are adjustable randomly
• IP68 waterproof
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
LED RGB+CCT 9W 24V lamp - SYS-RD2 - SYS-Series, is an LED driveway lamp made of high-quality components designed to be built into a stable surface. The housing is tightly protected against moisture and reinforced against mechanical damage. In its structure, it has multi-colour LEDs in which we can obtain any RGB colour and a colour temperature of 2700K-6500K. The RD2 LED overrun lamp is wired to the SYS series system bus, which is controlled using standard MiBoxer (MiLight) transmitting devices. Alternatively, access can be obtained using Wi-Fi and voice commands. Works with MiBoxer series controllers. The LED SYS-RD2 overrun lamp will find its application in the lighting of the driveway, garage, various types of communication paths, or as paving stones.
Features of the LED RGB+CCT overrun lamp - MiBoxer:
Rated voltage | DC24V |
Rated power | 9W |
Rated luminous flux | 700lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 15° |
Working Temperature | -20~60℃ |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | SYS Host Control |
Luminous Efficiency | 80lm/W |
Alternative control | Via Wi-Fi |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 150mm x 150mm x 104mm |
Ingress Protection | IP68 |
Lifespan | 50,000 hours |
Declarations / Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
1 x Underground light in a retail packaging
1 x Manuals
Data sheet
