Light colour: RGB (multicolour)
Voltage: 12V DC
Colour temperature of the light: N/A
Luminous flux: red 620 nm, green 520 nm, blue 460 nm
Power (meter): 7,2W
LED type: SMD5060
Amount of LEDs: 30 LEDs/m
Lighting angle: 120°
Cutting section: 10cm
The degree of protection: IP20
Sold per: pack (5m)
LED line® strip 5060 SMD 150 LED 12V RGB IP20
LED line® strips are a perfect choice for various lighting purposes e.g. furniture, shop expositions, advertisements and interior decoration. They combine high light efficiency with low energy consumption. Thanks to the compact size and excellent flexibility LED line® strips can be used wherever needed, even where traditional solutions can't be applied because of constricted space. The only limit is your imagination.
LED line® products are made with high attention to quality, therefore, they are the first choice when the durability and reliability are concerned. Only selected components from accomplished manufacturers are used to ensure that each product is of the highest quality. When deciding on a LED line® product you can be confident that you are getting a quality product that will perform as expected for many years.
LED line® strips comprise only of selected LEDs that offer highest currently available light efficiency. Estimated lifespan of each LED is around 50 000 hours! However, due to the fact that we have to take into consideration other components used to manufacture the LED strip we estimate the lifespan of the LED line® strip to be 35 000 hours which stands for 4 full years of non-stop use!
Each LED line® tape is going through a strict process of rigorous tests before leaving the factory to ensure that product delivered to you will meet our high standards and Your expectations.
We guarantee issue-free use of LED line® strips for many years, therefore, each LED line® tape has a 36-month warranty.
The LED line® product range offers several dozen products that differ in light efficiency, colour temperature and intended place of use. A wide range of choice ensures that you will be able to find a product that perfectly matches your needs.
Common attributes for LED line® strips:
3M® double-sided adhesive tape guarantees easy, yet durable installation of LED line® tape to the surface
the optimal thickness of flexible PCB laminate enables to freely form almost any shape while minimizing voltage drops throughout all sections of the strip
compact size enables use even when the traditional lighting solutions are not applicable
each tape can be divided into needed pieces
wide lighting angle 120°
12V DC voltage
LED line® strip 5060 SMD 150 LED 12V RGB IP20 specification
Voltage: |
12V DC
|
Colour of the light: |
RGB (multicolor)
|
LED quantity (meter): |
30
|
LED quantity (roll of 5 meters): |
150
|
Power consumption: |
7,2 W (+/- 5%)
|
Power consumption (roll of 5 meters strip): |
36 W (+/- 5%)
|
Wavelength: |
red 620 nm; green 520 nm; blue 460 nm (+/-2%)
|
Power consumption - amperage (meter): |
0,5~0,6A
|
Power consumption - amperage (roll of 5 meters): |
2,5~3A
|
LED type: |
SMD5060 (3xCHIP)
|
Beam angle: |
120°
|
Cut sections: |
10cm
|
Material type: |
flexible copper PCB laminate
|
Material colour: |
white
|

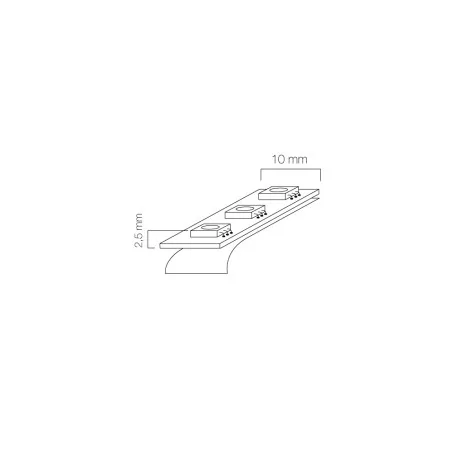

Dimensions (W. x H.): |
10 x 2,5 (mm)
|
Life span: |
30 000 hours
|
Lamp warm-up time to 60%: |
1 s
|
Number of on/off cycles: |
50000
|
Luminous flux after 30 000 h: |
30 %
|
Reaction time: |
>0,5 s
|
Power factor: |
≥ 0,5
|
Weight: |
26 g
|
Dimmer compatibility: |
PWM dimmers only
|
IP protection class: |
not protected
|
Operational temperature: |
-25 ~ +60°C
|
Data sheet
- Cutting Section
- 100mm
- Rated Power
- 7.2W/m
- Light Colour
- RGB
- Rated Voltage
- 12V
- CRI
- Ra≥80
- Beam Angle
- 120°
- Power Factor
- ≥0.5
- Features
- Dimmable
- Lifespan
- 100,000h
- Ingress Protection
- IP20
- Model Number
- 240140
- Warranty
- 5 years
- Light Source
- LED
- ON/OFF Cycles
- ≥50000
- Pack Quantity
- 5m
- Packaging
- Original retail colour packaging
- Country/Region Of Manufacture
- China
- Type Of Material
- PCB
- Colour
- White
- Design
- Tape
- Current Type
- DC
- Power Source
- 12V DC
- Colour Changing
- Yes
- Class
- LED
- Energy Efficiency Rating (A-G)
- E
- Unit Type
- Meter
- LED Chip Code
- 5060
- LED Strip Width
- 10mm
- Installation Area
- Indoor
- Control Style
- Remote Control
- Item Length
- 5000mm
- Item Width
- 10mm
- Item Weight
- 0.111kg
- Item Height
- 2.5mm
- Wholesale Box Quantity
- 75
