Design Light under cabinet SQUARE LED light 2.5W
Type: under cabinet lighting
Voltage: 12V DC
Power: 2,5W
Power source: not included
Colour: white, aluminium, black
Material: plastic

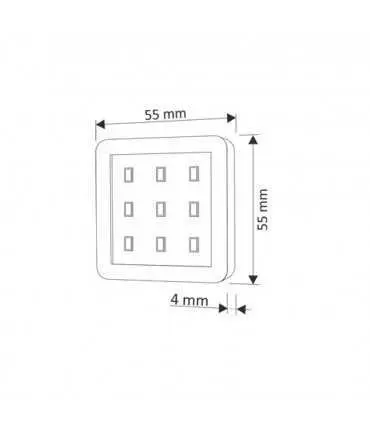

Size: 55x55x4mm
Type of mounting: surface
Light colour: warm white, neutral white, cold white
Light colour temperature: 3000K, 4500K, 6000K
Luminous flux: 300lm
Ingress Protection: IP20
Beam angle: 120°
Cable length: 2m
Connector: mini AMP (male)
Shape: square
£5.04
(VAT incl.)
Delivery within 2-4 weeks
Condition
New product
Reference:
P1404_SILVER_WW
Brand:
We are away from 23rd June to 30th June. All new orders will be shipped after the 30th of June. We are sorry for the inconvenience.
Design Light under cabinet SQUARE LED light 2.5W
LED SQUARE2 luminaire is a modern way to illuminate usable surfaces with built-in LED diodes. Its modern design makes it suits any type of interior. The luminaire is used as decorative lighting for furniture, sites, etc. to illuminate selected places.
Includes built-in 9 LED diodes with a total power of 2.5W, ensuring long life and low operating costs, and a 2m cable with a mini connector for easy lighting connection.
Product advantages:
- Modern LED SMD 5730!
- Higher luminous flux / less power consumption!
- Simple assembly
- Three colours of light: warm white, cold white and neutral white
- Polish product
The fitting requires the use of a 12V DC power supply. LED power supplies are available in our store.
Design Light under cabinet SQUARE LED light 2.5W specification
| The colour of the binding | aluminium, white, black |
| Voltage | 12V DC |
| Power | 2,5W |
| LED type | 5730 |
| Colour of light | warm white, neutral white, cold white |
| Beam angle | 120° (the product is not intended for accent lighting) |
| Degree of protection | IP20 |
| Energy class | A ++ |
| Energy consumption kWh/1000h | 2,5kWh/1000h |
| Luminous flux | 300lm |
| Nominal shelf life | 30.000h |
| Number of on/off cycles | ≥20000 |
| Lighting time up to 60% of the full luminous flux | ≤1s |
| Cooperation with dimmers | YES |
| CRI - colour rendering index | ≥80 |
| Place of application of the product | Internal use in a dry room. |
| The length of the wire | 2m cable terminated with MINI-CONNECTOR plug |
| The minimum distance from the light source | 30 cm |
P1404_SILVER_WW
Data sheet
- Rated Power
- 2.5W
- Light Colour
- Cold white
Neutral white
Warm white
- Rated Voltage
- 12V
- Luminous Flux
- 300lm
- CRI
- Ra≥80
- Beam Angle
- 120°
- Lifespan
- 50,000h
- Ingress Protection
- IP20
- Type Of Material
- Plastic
- Design
- Square
- Colour Temperature
- 3000K
4500K
6000K
Specific References
- ean13
- 5900652144600
- mpn
- P1404_SILVER_WW
