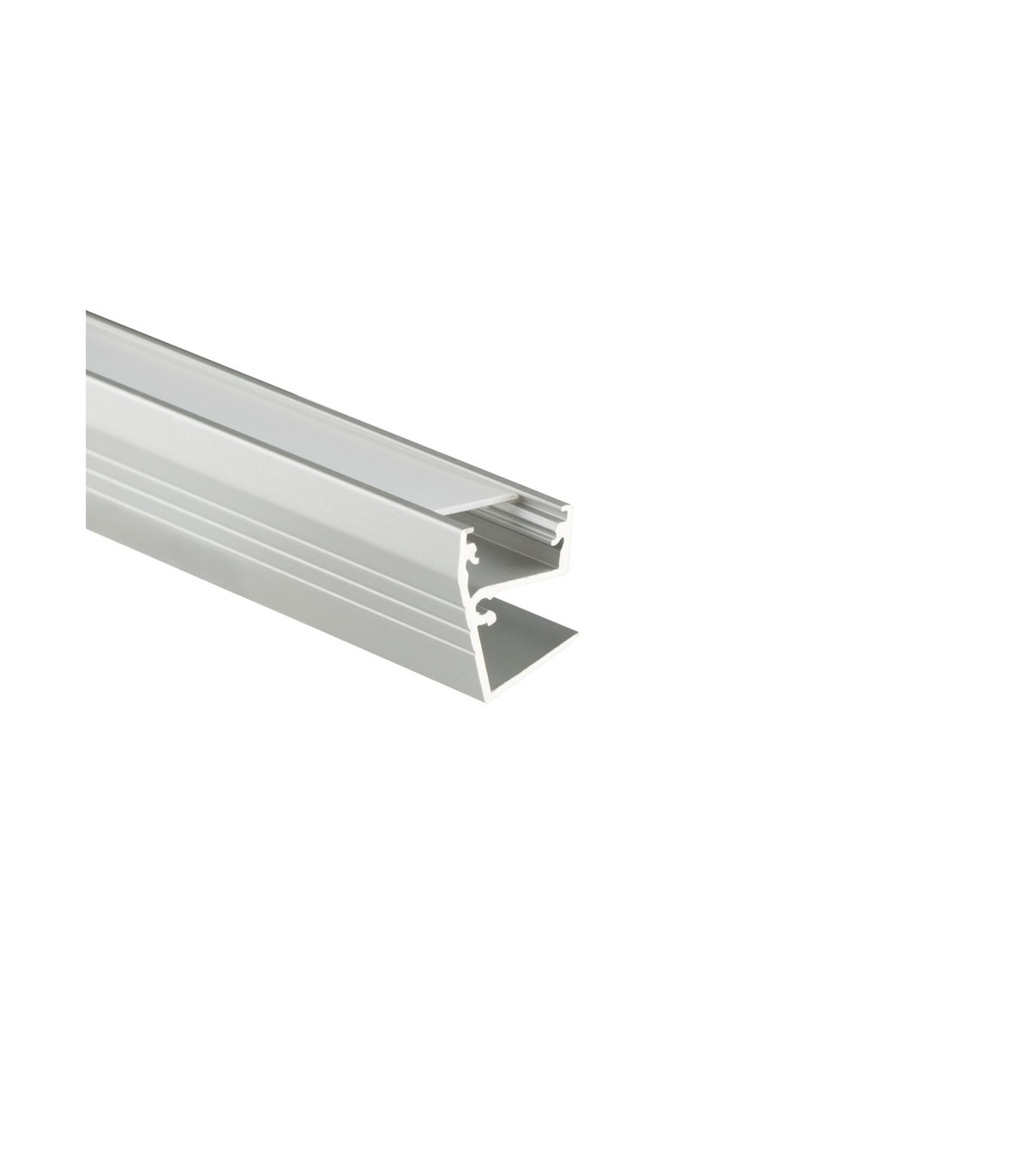

TOPMET anodised aluminium LED profile EDGE10 BC silver

The profiles are sold without mounting brackets, end caps or any other accessories. Please refer to the product description or check the "RELATED PRODUCTS" section below to see the compatible accessories.

Type/name of profile: Edge10

Available colours: Silver

Length available in retail: 1000 mm

Length available in wholesale: 1000 mm, 2000 mm

LED strip width: up to 10 mm

Installation area: Indoor

Read moreShow less
£7.44 (VAT incl.)
Diffuser
Last items in stock 4 Items
Condition
New product
Reference:
P1039_MILKY
Brand:
Tags:
12V, 24V
Love0
Add to wishlist
Description
TOPMET anodised aluminium LED profile EDGE10 BC silver
Aluminium LED profile EDGE10 for glass is manufactured by a Polish company Topmet made of raw aluminium. The aluminium LED profile is an excellent alternative to lighting the exposure and hence giving it an innovative and subtle character. This product allows you to build a frame that surrounds the window and its light is oriented at an angle and does not cause glare. The EDGE10 has the advantage of being mounted in two positions so that the exposure can be illuminated from above or below. Aluminium profile for 8 mm thick glass, when applied to a thinner glass, additional wedge or tape should be provided.

LED aluminium profile is also an excellent heat sink, thanks to which the heat extracted from the LED source is excellent. Such a solution creates, above all, better conditions for diodes, extending their longevity. The aluminium LED strip is an excellent protection for LED strips against mechanical damage and also makes the assembly much more durable compared to direct glueing of the tape to the substrate. The use of the LED profile greatly enhances its aesthetics and makes it easy to maintain the cleanliness of the entire installation.

LED aluminium profile in its name includes the markings of matching accessories. The digit after the profile name - indicates the maximum width of the matching LED strip, the first letter/letter is the model of the compatible lens/lens (eg "A", "C"), while the last letter/letter indicates the fasteners/holders matching the selected LED profile.

Compatible lenses:
B - slipped
C - latch
C - lens

For most LED strip profiles, compatible lenses have been matched to provide even better protection of the LED light source, improving its aesthetics and helping to plan a conscious choice of lighting effect. LED trays can vary in degree of absorption, to a greater or lesser extent, the amount of light emitted. Milk shades (in some profiles) combined with a suitable tape allow for a continuous line of light. Each of the shields, thanks to their transparency, also differs in degree of visibility of LED points.

TOPMET anodised aluminium LED profile EDGE10 BC silver specification
Material
Anodised aluminium
Colour
Silver
Application for
glass/plexiglass / furniture
Length
1m
Maximum width of LED strip
10mm
Compatible lenses
B and C
Thickness of the compatible glass
8mm
Size (mm)
1000 x 15.6 x 22.5
Warranty
2 years
Certification
CE
Read moreShow less
Product Details
P1039_MILKY

Data sheet

Ingress Protection
IP20
Country/Region Of Manufacture
Poland
Type Of Material
Aluminium
Length
1m
LED Strip Width
10mm

Specific References

ean13
5097878477451
MPN
P1039
