Type: 9-way RGB mini connector
Designed for: RGB LED lighting with mini AMP connectors
Voltage: 5-24V
Type of connection: 4-pin
Wire length: 2m
Country of manufacture: China
IP rating: IP20
Warranty: 2 years
Type Of Connection: mini RGB connector
Rated Power: 0.75W
Light Colour: RGB
Rated Voltage: 12V
Luminous Flux: 12lm
Colour Rendering Index: Ra≥80
Lifespan: 30.000h
Ingress Protection: IP20
Pack Quantity: 1
Country/Region Of Manufacture: China
Energy Efficiency Rating: A+
We are on holiday from 26.04.2024 to 05.05.2024. All new orders placed after 11 AM Friday 26.04.2024 will be shipped on Monday 6.05.2024. We are sorry for the inconvenience.

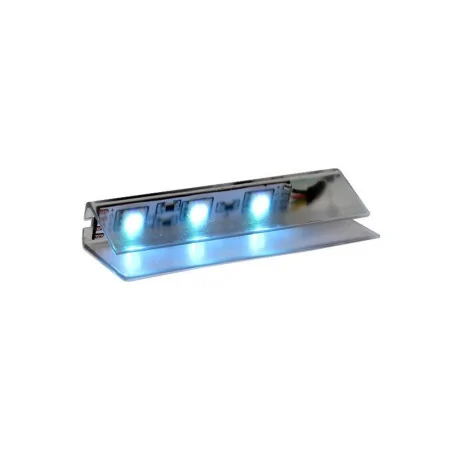

DESIGN LIGHT LED PVC RGB clip for glass shelving

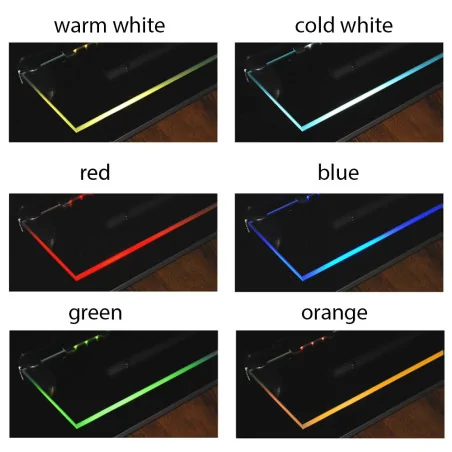

LED PVC RGB clip with a power of 0.75W. This type of lighting is used mainly to illuminate glass shelves in sites, cabinets, barrows, cabinets, tables, displays, etc. The clip with minimal power consumption (one draws only 0.75W) gives fantastic illumination capabilities with built-in LEDs.
The recommended window thickness is 5-8 mm. The light emission angle is 60 degrees. Another advantage of the clip is the ability to control and change the lighting program using the RGB driver with remote control (not included). There are 20 programs available: 16 static and 4 dynamic modes.
The clip requires a 12V DC power supply and an RGB controller with a remote control to change the lighting program. All accessories are available in our store.
DESIGN LIGHT LED PVC RGB clip for glass shelving specification
The colour of the binding | transparent |
Voltage | 12V DC |
Power consumption | 0.75 W |
Colour of light | RGB |
Degree of protection | IP20 |
Dimensions (mm) | length 63 mm / width 22 mm / height 11 mm |
Energy class | A ++ |
Energy consumption kWh / 1000h | 0.75 kWh / 1000h |
Luminous stream | 12 lm |
Nominal shelf life | 30.000h |
Number of on/off cycles | ≥15000 |
Lighting time up to 60% of the full luminous flux | ≤1s |
Cooperation with dimmers | YES |
Place of application of the product | Internal use in a dry room. |
The length of the wire | 2m cable ended with a mini RGB plug |
Material | PVC |
Light source included | YES |
DESIGN LIGHT LED PVC RGB clip for glass shelving package includes
1 x RGB clip for glass pane with 2m cable ended with a mini RGB plug
Data sheet
Specific References
Type: 9-way RGB mini connector
Designed for: RGB LED lighting with mini AMP connectors
Voltage: 5-24V
Type of connection: 4-pin
Wire length: 2m
Country of manufacture: China
IP rating: IP20
Warranty: 2 years
Design Light LED RGB controller IR remote control 9-point distributor
Products Name: DC12V RGB LED Strip Light
Model No.: LSL3NA1L
Input Voltage: DC12V
Power: R, G, B: 4W/m 15W/5m
LED Chip Specification: 5050 3-in-1 SMD LED Chip
LED Chip QTY: 60 LED/m
Board Material: Copper
Thickness: 2 oz (Front 1 oz, Back 1 oz)
LED Strip Width: 10mm
IP Rate: Non-waterproof IP20
Beam Angle: 120°
Warranty: 2 Year
Packing: 5m per roll
Extendability: Max 10m
• Safety voltage DC12V
• Best ability for heat dissipation and low luminous decay
• Support creating shape and tailorable strip light
Product Name: 150W RGB Dimming LED Driver (WiFi+2.4G)
Model No.: WP3-P150V24
Working Voltage: 100-240V~ 50/60Hz
Output Voltage: 24V⎓
Output Current: Max 6.25A
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
RF: 2.4GHz
Remote Control Distance: 30m
IP Rate: IP67
ta:40℃ tc:85℃
• Built-in power adapter
• 2.4GHz RF remote controllable
• Smartphone app controllable
• 16 Million colours to choose
• Brightness adjustable
• Output Voltage 24V⎓
Product Name: 3 in 1 LED Strip Controller (Zigbee 3.0+ 2.4G)
Model No.: FUT037Z+
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Work Temperature: -10~40℃
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Zigbee Control Distance: 100m (open area)
2.4G RF Remote Control Distance: 30m
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 100m (open area)
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)
Product Name: RGB LED Controller
Model No.: FUT037P+
Input Voltage: DC12~48V
Output Current: 10A/Channel
Total Output: Max 20A
Working Temperature: -10~40℃
RF: 2.4GHz
Control Distance:30m
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)
Product Name: 2 in 1 LED Strip Controller (WiFi+2.4G)
Model No.: FUT037W+
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
RF: 2.4GHz
Remote Control Distance: 30m
Working Temperature: -10~40℃
• Support “Tuya Smart” app control
• Support music rhythm
• Support third-party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• Colour temperature and brightness adjustable
• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)
Product Name: 5 in 1 LED Strip Controller (Zigbee 3.0 + 2.4G)
Model No.: ZL5
Working Voltage: DC12~48V
Output: 6A/Channel
Total Output: Max 15A
Work Temperature: -10~40℃
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Zigbee Control Distance: 100m (open area)
2.4G RF Remote Control Distance: 30m
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 100m (open area)
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Switching 5 output modes via one button (Single colour/Dual white/RGB/RGBW/RGB+CCT)
