Type: 2-pin PCB to PCB wire connector
Designed for: 8mm single colour LED strips
Voltage: 5-24V
Type of connection: 2-pin
Wire length: 150mm
Country of manufacture: China
IP rating: IP20
Warranty: 2 years

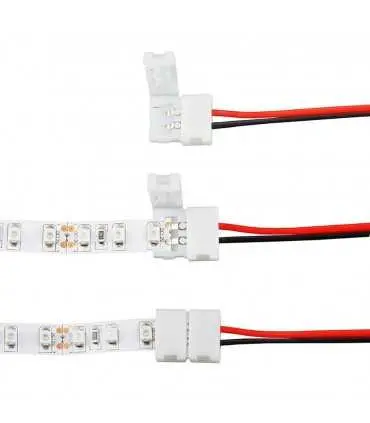

Our 2 pin PCB to PCB 8mm LED strip connection wire is an easy way to make a quick and solid connection between two LED strips. There is no need for soldering open the cover and put the LED strip in "plug and play". Forget throwing away offcuts with our connector you can use every little bit of your LED strip. Wires are soft and can be bent easily to adapt to your needs.
Installation Instructions:
• Ensure your section of LED light strip has two contacts (+ and -) and the contacts are both clean
• Open the white clasp of the connector
• Insert the LED light strip into the clasp, under the prongs – making sure to match the + and – on the strip to the + and – on the clasp
• Close the clasp
• Gently pull on the LED light strip to confirm you’ve made a solid connection
• Your connection is made!
| Suitable for: | 8mm LED strips |
| Type: | Click connector 2 sided |
| Total length: | 170mm |
| Working temperature: | 0~40℃ |
| Material: | PVC |
| Weight: | 4g |
| Storage temperature: | -20~60℃ |
| Dimensions(mm): | L170 x W12 x H5 |
| Warranty: | 2 years |
1 x 8mm single colour 2 pin PCB to PCB wire connector
