Type: 6 x 0.35mm²
Wire material: Copper
Wire colour order: Yellow, White, Blue, Red, Green, Black
Length: 100m
Made in: China

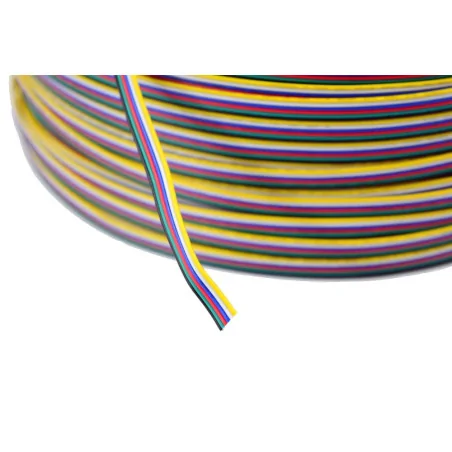

100m reel RGB+CCT 6-core 0.35mm² LED strip light cable
Introducing the 100m Reel RGBCCT 6 Core 0.35mm LED Strip Light Cable, a versatile and reliable solution for powering your LED strip lights with ease. Made with high-quality materials, this cable provides a strong and stable connection between your LED strips and power source, ensuring efficient and hassle-free operation.
With a length of 100m, this cable is ideal for larger lighting projects where a longer reach is required. The 6-core design allows for easy installation and connection, with clearly marked polarity for quick and accurate setup. This cable is specifically designed for use with RGB and CCT LED strip lights, providing a wide range of colour and temperature options for your lighting project.
Featuring a 0.35mm diameter, this cable is strong enough to handle the demands of constant use, making it a practical and reliable choice for any lighting project. Its 6-core design allows for flexible connectivity, providing compatibility with a range of LED strip lights and lighting controllers.
Whether you're a professional electrician or a DIY enthusiast, the 100m Reel RGBCCT 6 Core 0.35mm LED Strip Light Cable is the perfect choice for powering your LED strip lights with versatility and reliability. Don't hesitate, order yours today and take the first step towards a stunning lighting display!
Connecting instructions:
Connect the black cable to +
Connect the red cable to R
Connect the green cable to G
Connect the blue cable to B
Connect the white cable to CW
Connect the yellow cable to WW
100m reel RGB+CCT 6-core 0.35mm² LED strip light cable specification
Type: | LED strip wire |
Size(mm): | One wire – 1.2mm |
Wire colour: | Black/Green/Red/Blue/White/Yellow |
Total length: | 100m |
Cross-Sectional Area: | 0.35mm squared |
Connection type: | 6 pin |
Rated temperature: | 80°C |
Working Voltage: | 12V DC |
Material: | PVC Plastic (Flexible) |
Material (wire): | Copper |
100m reel RGB+CCT 6-core 0.35mm² LED strip light cable package includes
100 metres of RGB+CCT 6-core 0.35mm² cable in one length
Data sheet
- Rated Voltage
- 5-24V
- Ingress Protection
- IP20
- Pack Quantity
- 100
- Packaging
- Clear plastic bag
- Country/Region Of Manufacture
- China
- Type Of Material
- Copper
- Colour
- Black
Blue
Green
Red
White
Yellow
- Wire Gauge (AWG)
- 22 AWG
- Current Type
- DC
- Class
- LED Light Strip Connector
- Unit Type
- Meter
- Size
- 0.35mm²
- Contact Material
- Copper
- Length
- 100m
- Installation Area
- Indoor
- Item Length
- 260mm
- Item Width
- 260mm
- Item Weight
- 2.74kg
- Item Height
- 50mm
- Mounting
- Free Standing
- Wholesale Box Quantity
- 1
