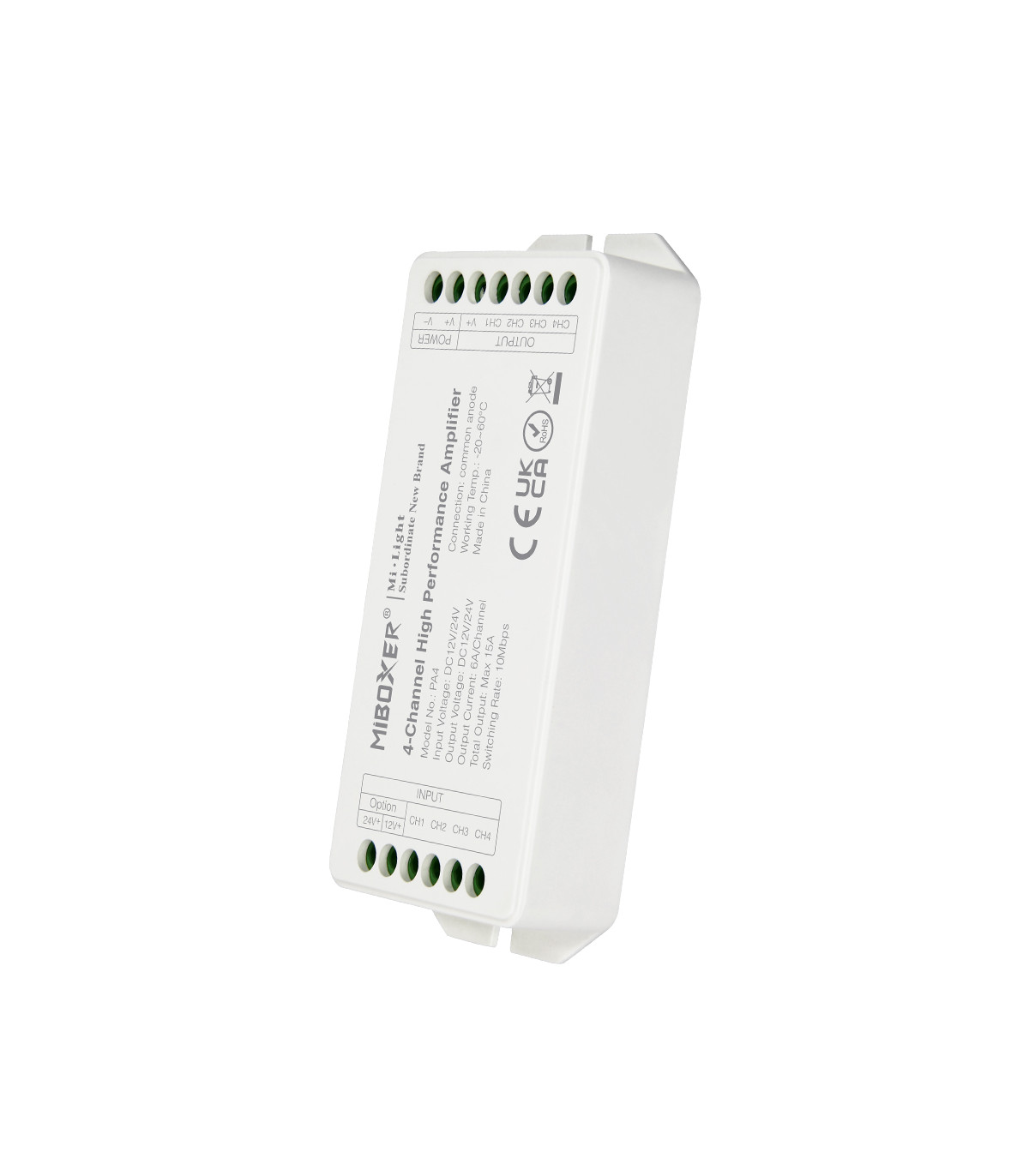

Mi-Light 4-channel high-performance amplifier PA4

Product Name: 4-Channel High-Performance Amplifier

Model No.: PA4

Work Temperature: -20~60℃

Input Voltage: DC12V/24V

Output Voltage: DC12V/24V

Output Current: 6A/Channel

Total output Max: 15A

Switching Rate: 10Mbps

Connection: Common anode

• Compatible with Mi-Light/MiBoxer series controllers and all PWM-type LED controllers on the market.

• it can output the signal of the main controller completely and synchronously.

• We adopt high current MOSET output to ensure the high output power.

• Adopt a high-speed optical coupler, with a 10Mbps output rate

Read moreShow less
£11.40 (VAT incl.)
Last items in stock 4 Items
Close
1 Review
Condition
New
Reference:
P0451
Brand:
Love1
Add to wishlist
Add to compare0
Description

Mi-Light 4-channel high-performance amplifier PA4

Mi-Light 4-channel high-performance amplifier PA4 size product dimensions technical picture

Mi-Light LED Amplifier 12-24V 15A - MONO/CCT/RGB/RGB+W - Mi-Light, this device allows us to expand our LED installation by increasing its maximum current capacity. The use of the LED Amplifier Mi-Light at large LED installations ensures that the PWM signal is synchronised correctly so that the controls will operate without interference. The amplifier can be designed for different types of installations because it has four outputs ready for use.

4-channel high speed amplifier signal buster mono strips RGB RGBW LED SMD tapes

The amplifier is an inherent component of the kit wherever the LED strip applied is longer than 5m. By using the amplifier you can easily eliminate the voltage drop phenomenon. By using the amplifier you can freely enlarge the length of the LED strip used without the need for an additional controller. The amplifier is designed to work with any LED light source powered by 12 to 24V. With the amplifier available in our shop, you can increase the performance of the LED driver by 15A, allowing you to use a longer LED strip length.

Application for installation:

 MONO - one colour

CCT - with variable colour temperature

RGB - multicolour

RGB+W - multicoloured with extra white

strong compability product works on all PWM series LED controllers in market UK stock milight smart lighting

Features of the Mi-Light 4-channel high-performance amplifier PA4

 Application for many installations

Extension of LED installation to large sizes

Ensure proper synchronization of work

The maximum load capacity of 15A

Application for Mi-Light controllers

Small dimensions of the device

output ports screw terminals for connecting LED strips output power cable port

input terminals screw ports DC power supply LED strips amplifier

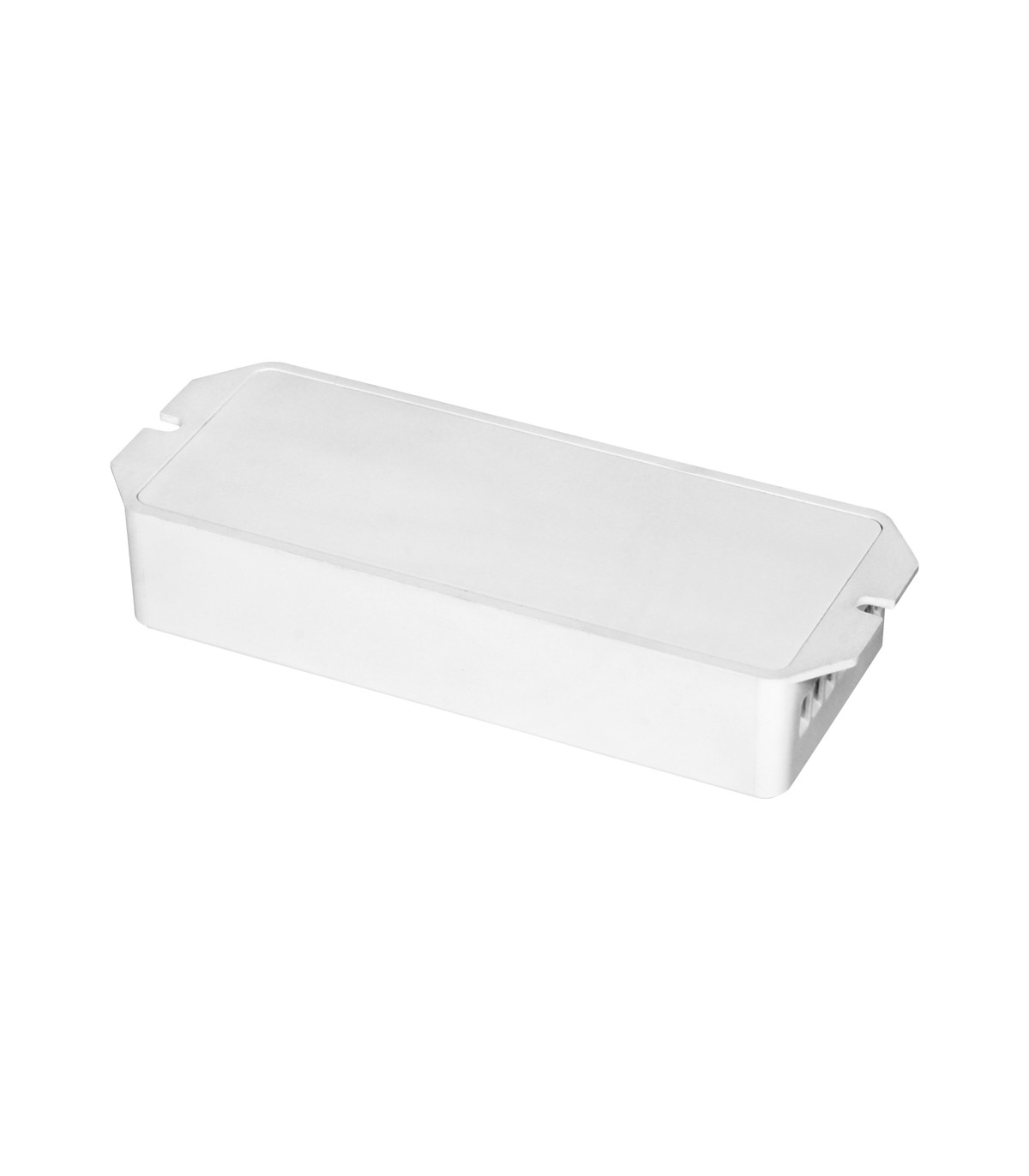

high quality PC body nice design smart lighting housing white amlifiers

The use of bolt sockets in the device allows you to easily and quickly connect the lighting used. This solution provides a stable connection without the need for additional connectors.

The amplifier should be used for Mi-Light series installations.

connection diagram mi-light amplifier 4-channels 12V 24V DC V+ 15Amp made in china smart lighting

Mi-Light 4-channel high-performance amplifier PA4 specification

Terminals Screw terminals
Input/output voltage of the receiver 12V DC or 24V DC
Maximum output current 15A (6A/channel)
Common anode Yes
Method of control PWM
Model number PA4
Signal correction system Yes
Working temperature -20 – 60℃
Input connector (power supply) Screw terminals for bare wires
Output connector (terminal) Screw terminals for bare wires
Colour White
Housing material ABS
Ingress Protection IP20
Dimensions[mm] L119 x W47 x H23
Certification RoHS, CE, UKCA
Warranty 2 years

Mi-Light 4-channel high-performance amplifier PA4 packaging retail and wholesale box size product weight

Mi-Light 4-channel high-performance amplifier PA4 package includes

1 x Mi-Light 4-channel amplifier PA4

1 x User Manual (English)

Read moreShow less
Product Details
P0451

Data sheet

Rated Power
72/144W
Rated Voltage
12V
24V
Ingress Protection
IP20
Model Number
PA4
Certification
CE
RoHS
UKCA
Warranty
2 years
Light Source
LED
Communication Range
30m
Communication Method
Radio
Operating Temperature
-20~60℃
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Plastic
Colour
White
Control Frequency
2.4GHz
Current Type
DC
Power Source
12V/24V power supply
Class
LED
Unit Type
Unit
Output Voltage
12V
24V
Installation Area
Indoor
Control Style
Remote Control
Item Length
119mm
Item Width
47mm
Item Weight
0.08kg
Item Height
23mm
Mounting
Free Standing
Wholesale Box Quantity
200

Specific References

EAN13
6970602180322
MPN
PA4
Attachments
PA4 - User manual
User manual for 4-channel high performance amplifier from Mi-Light brand.
Download (607.42KB)
