Product Name: 3 in 1 LED Strip Controller (2.4GHz)
Model No.: FUT037S+
Working Voltage: DC12~24V
Output: 6A/Channel
Total Output: Max 12A
Work Temperature: -10~40℃
RF: 2.4GHz
Control Distance: 30m
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)

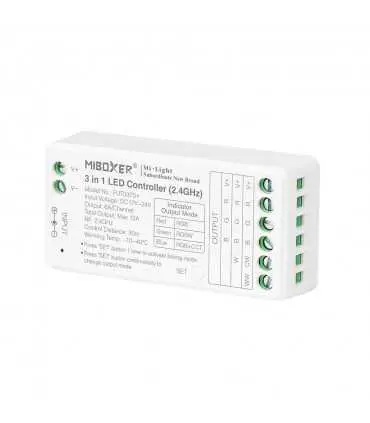

MiBoxer 3 in 1 LED strip controller (2.4GHz) FUT037S+
The 3-in-1 LED Controller from MiBoxer is the ultimate solution for controlling your LED lights. This versatile controller allows you to easily control your RGB, RGBW, or CCT LED lights with just one device.
With a powerful 2.4GHz wireless connection, this controller provides reliable and responsive control from up to 30 meters away. The user-friendly interface and intuitive button layout make it easy to adjust the brightness, colour, and colour temperature of your lights, all with just a few clicks. The remote control needs to be purchased separately and the compatible remotes can be seen below.
The 3-in-1 LED Controller also features a memory function, which allows it to remember your last setting even after power is disconnected. This means that you can enjoy your favourite lighting settings without having to reset them every time you turn on your lights.
The controller is designed with high-quality materials to ensure durability and longevity, and it is compatible with a wide range of LED lights. Its compact size and sleek design make it easy to integrate into any space.
The MiBoxer 3-in-1 LED Controller is the perfect solution for anyone looking to control their LED lights with ease and convenience. With its versatile functionality, reliable performance, and user-friendly design, it is the ultimate tool for creating the perfect lighting ambience in any space.
Application for installation:
RGB - multicoloured
RGB+W - multi-coloured with an additional white colour
RGB+CCT - multicoloured with variable colour temperature
Features of the FUT037S+ - Mi-Light receiver
Application for multicolour RGB/RGB+W/RGB+CCT LED strips
Wireless communication with the control device
Obtaining RGB colour and brightness control
Possibility to change the colour temperature in the range of 2700-6500K
Increased current carrying capacity up to 12A
Frequency selection in two ranges - 250Hz/16kHz
Input/output voltage range 12-24V DC
Built-in diode signalling the work of the receiver
Cooperation with Wi-Fi network (additional option)
Cooperation with Amazon Alexa and Google Home voice systems (additional option)
Obtaining control via bell button
Possibility of using several receivers for one zone
Very small sizes
Compatible remotes
MiBoxer 3 in 1 LED strip controller (2.4GHz) FUT037S+ specification
Application | For RGB, RGBW, RGBCCT (multi-colour) installation |
Maximum output current | Max 12A |
Input/Output Voltage | 12V DC or 24V DC |
Number of outputs | 5 channels (R/G/B/CW/WW/V+) |
Controlling method | Radio |
Controlling range | up to 30 meters in an open area |
Model number | FUT037S+ |
Control frequency | 2.4GHz |
Working temperature | -10 – 40℃ |
Compatible devices | please see the compatible MiBoxer products tab |
Return to previous settings after powering off | Yes |
Input connector (power supply) | Screw terminals for bare wires and DC socket |
Output connector (signal) | Screw terminals for bare wires |
Dimensions[mm] | L74.5 x W36 x H17 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer 3 in 1 LED strip controller (2.4GHz) FUT037S+ package includes
1 x 3-in-1 RGB (multi-colour) LED strip controller
1 x User manual (English)
Data sheet
- Light Colour
- RGB
RGB+CCT
RGBW
- Rated Voltage
- 12V
24V
- Ingress Protection
- IP20
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Country/Region Of Manufacture
- China
- Current Type
- AC
- Installation Area
- Indoor
- Item Length
- 74.5mm
- Item Width
- 36mm
- Item Weight
- 0.041kg
- Item Height
- 17mm
- Wholesale Box Quantity
- 200
