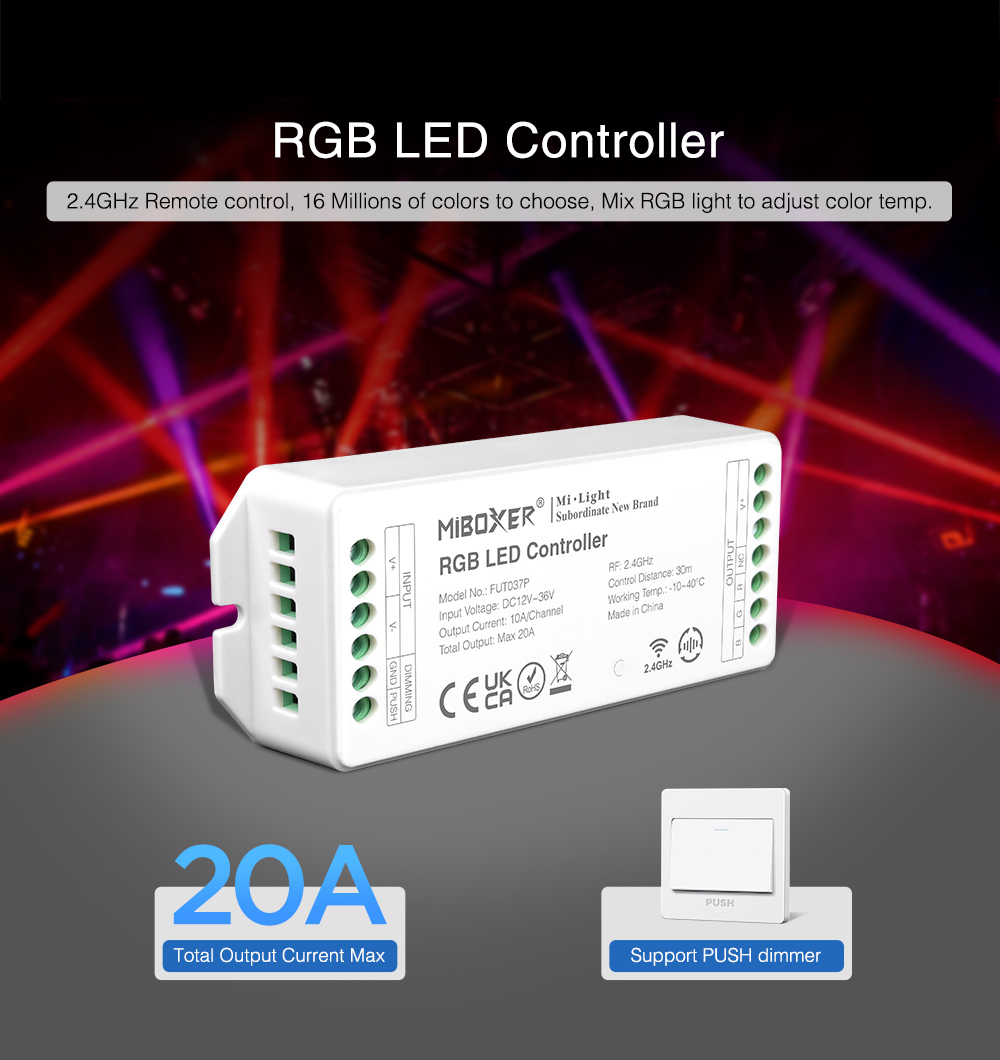

Product Name: RGB LED Controller
Model No.: FUT037P
Input Voltage: DC12~36V
Output Current: 10A/Channel
Total Output: Max 20A
Working Temperature: -10~40℃
RF: 2.4GHz
Control Distance:30m
• 2.4G RF Remote controllable
• 16 Million colours to choose
• Mix RGB light to adjust colour temperature
• Brightness and saturation controllable

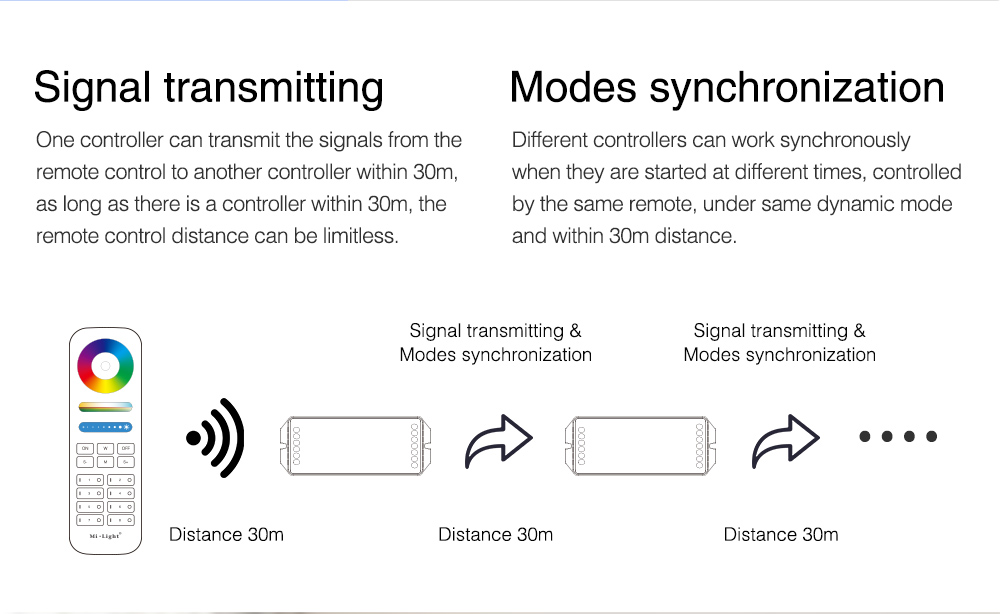

• Signal transmitting function makes control distance limitless
• Support PWM high frequency (8KHz) / Low frequency (500Hz) switched
MiBoxer RGB LED controller (20A high current output) FUT037P
RGB 12-36V DC 20A Mi-Light (Mi-Boxer) LED radio receiver is a small device used to control multi-colour RGB LED lighting. The device has been designed in a way that allows you to change the brightness and colour of the connected RGB LED strip, through the use of an appropriate LED driver. The communication of such a device is carried out by radio, it is through it that the receiver communicates with the transmitting device. The receiver can also be accessed via Wi-Fi and Amazon Alexa or Google Home voice systems by using the appropriate module.
For compatible devices, please see the compatible MiBoxer products tab.

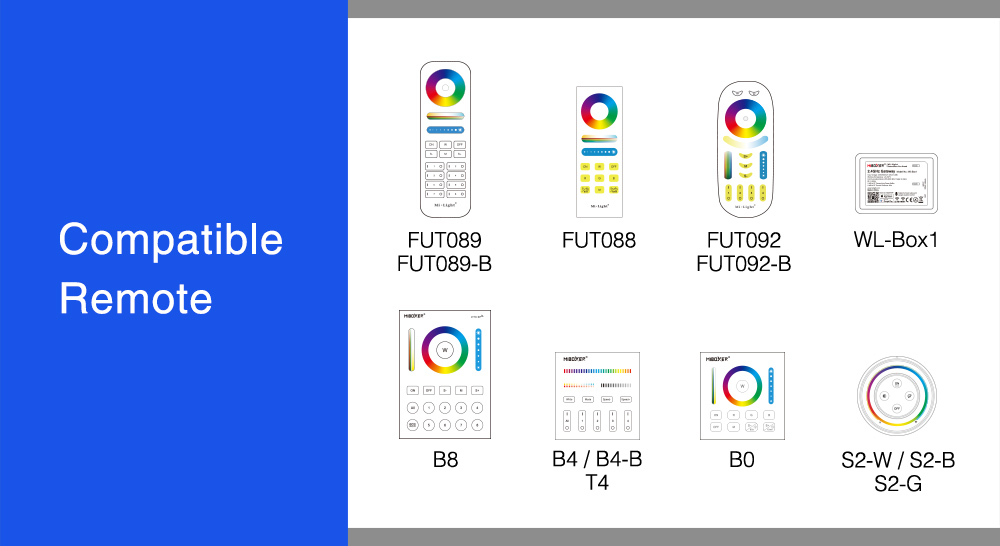

Compatible remotes
MiBoxer RGB LED controller (20A high current output) FUT037P specification
Application | For multicolour (RGB) LED strip installations |
Maximum output current | 20A (10A per channel) |
Input / Output Voltage | 12V DC, 24V DC or 36V DC |
Number of outputs | 3 channel (R/G/B/V+) |
Controlling method | Radio |
Controlling range | up to 30 meters in an open area |
Model number | FUT037P |
Control frequency | 2.4GHz |
Working temperature | -10 – 40℃ |
Compatible devices | please see the compatible MiBoxer products tab |
Return to previous settings after powering off | Yes |
Input connector (power supply) | Screw terminals for bare wires and DC socket |
Output connector (signal) | Screw terminals for bare wires |

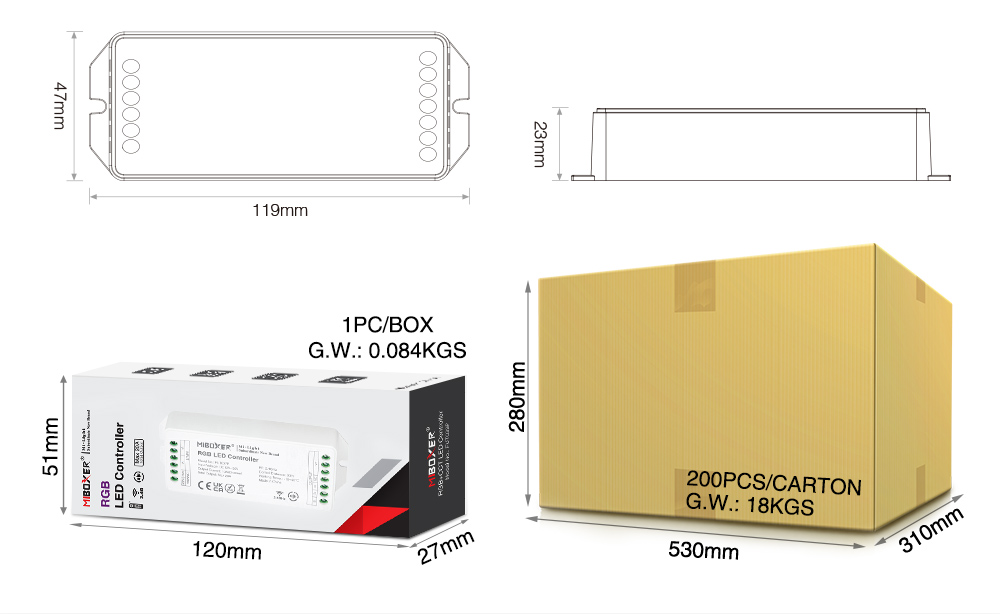

Dimensions[mm] | L119 x W47 x H23 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer RGB LED controller (20A high current output) FUT037P package includes
1 x RGB LED strip controller
1 x User manual (English)
Data sheet
- Rated Power
- 240W/480W/720W
- Light Colour
- RGB
- Rated Voltage
- 12V
24V
36V
- Features
- Dimmable
- Ingress Protection
- IP20
- Model Number
- FUT037P
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Light Source
- LED
- Communication Method
- Radio
- Operating Temperature
- -10~40°C
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Colour
- White
- Control Frequency
- 2.4GHz
- Current Type
- DC
- Power Source
- 12-36V DC
- Class
- Lighting Remote & Control
- Unit Type
- Unit
- Output Voltage
- 12V
24V
- Installation Area
- Indoor
- Control Style
- Remote Control
- Item Length
- 119mm
- Item Width
- 47mm
- Item Weight
- 0.084kg
- Item Height
- 23mm
- Mounting
- Free Standing
- Wholesale Box Quantity
- 200
Specific References
- EAN13
- 6970602182296
- MPN
- FUT037P
