● Unique skin-like design, delicate touch, as smooth as baby skin.
● Standard 86*86mm dimension design.
● Rated voltage of 250V~.
● Capable of withstanding a maximum current of 10A.

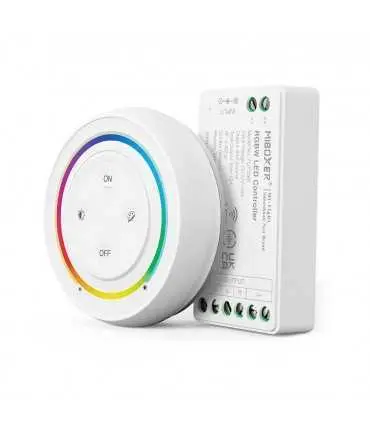

RGBW LED Controller Kits
Model No.: FUT038SA
Working Voltage: 12-24V
Output: 6A/Channel
Total Output: Max 12A
Working Temperature: -10-40°C
RF: 2.4GHz
Control Distance: 30m
Output Connection: Common anode
2.4G Rainbow Remote (RGB+CCT)
Working Voltage: 3V (AAA battery-2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Control Distance: 30m
Data sheet
Specific References
● Unique skin-like design, delicate touch, as smooth as baby skin.
● Standard 86*86mm dimension design.
● Rated voltage of 250V~.
● Capable of withstanding a maximum current of 10A.
Product Name: 5 in 1 LED Controller (WiFi+2.4G)
Model No.: PW5
Input Voltage: DC12~48V
Output: 10A/Channel
Total Output: Max 20A
Communication Protocol: WiFi + 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Millions of colours to choose, colour temperature adjustable, brightness and saturation controllable
• Support PUSH dimming
• Switching 5 output mode via one button (Single colour/Dual white/RGB/RGBW/RGB+CCT)
Product Name: 2 in 1 LED Controller (WiFi+2.4G)
Model No.: PW2
Input Voltage: DC12~48V
Output: 20A/Channel
Total Output: Max 20A
Communication Protocol: WiFi+ 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• Brightness and color temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
Product Name: AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)
Model No.: TRI-PZ
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W @110V; 500W @220V
Dim method: Zigbee 3.0 + 2.4G + Push
Zigbee Control Distance: 100m (open area)
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 100m (open area)
• Support Amazon Alexa and Google Home control
• Support 2.4G remote control, control distance 30m
Product Name: AC Triac Dimmer (WiFi+2.4G+Push)
Model No.: TRI-PW
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W@110V; 500W@220V
Dim Method: WiFi + 2.4G + Push
2.4G RF Control Distance: 30m
Wireless Technology: Wi-Fi IEEE 802.11b/g/n 2.4GHz
Working Temperature: -10~40°C
The TRI-PW supports the control of traditional incandescent lamps, halogen lamps, and dimmable LED lamps. It is compatible with the “Tuya Smart” app. Additionally, our product is compatible with Amazon Alexa and Google Home for voice control, and it comes with a 2.4G remote control that offers a control distance of up to 30 meters. Experience the convenience and comfort of smart home lighting with ease.
Product Name: AC Triac Dimmer (2.4G+Push)
Model No.: TRI-PR
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 2.27A
Output Power: 250W @110V
500W @220V
Dim Method: RF wireless dimming
Push dimming
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Support 2.4G remote control, control distance 30m
Product Name: 2 in 1 LED Controller (WiFi+2.4G)
Model No.: HW2
Input Voltage: DC12~48V
Output: 30A/Channel
Total Output: Max 30A
Communication Protocol: WiFi+ 2.4GHz
2.4G RF Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
• Support “Tuya Smart” app control, Support music rhythm
• Support third party voice control (Alexa, Google Assistant)
• 2.4G RF remote controllable
• Brightness and colour temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
Product Name: 2 in 1 LED Controller (2.4GHz)
Model No.: HR2
Input Voltage: DC12~48V
Output: 30A/Channel
Total Output: Max 30A
RF: 2.4GHz
Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Output connection: Common anode
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• Control Distance: 30m
• Brightness and colour temperature adjustable
• Support PUSH dimming
• Switching 2 output mode via one button (Single colour/Dual white)
