Product Name: 2.4G Sunrise Remote (Color Temperature)
Model No.: S1-B/S1-W/S1-G
Working Voltage: 3V (AAA battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20μA
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40℃

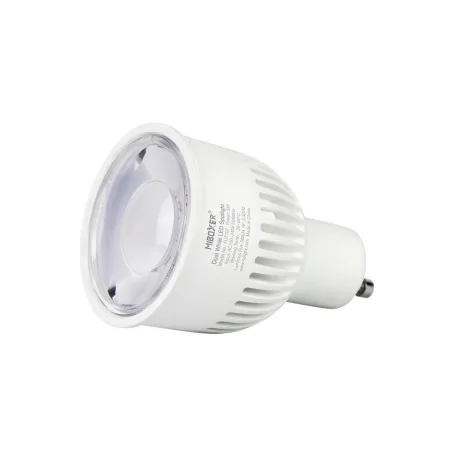

Product Name: 6W GU10 Dual White LED Spotlight
Model No: FUT107
Power: 6W
Voltage: AC100~240V 50/60Hz
Kelvin: 2700-6500K
Luminous Flux: 580LM
Luminous Efficiency: 95LM/W
CRI: >80
Base Type: GU10
Beam Angle: 30°
PF: >0.55
Material: Aluminum+PC
Control Distance: 30m
Size: Φ50*72mm
Application Areas: houses, restaurants, bars, etc
• 2.4GHz RF remote controllable
• Brightness and colour temperature adjustable
• Control distance: 30m
GU10 CCT LED bulb 6W 100-240V, is a dual white LED bulb with the possibility to change colour temperature with the help of the Mi-Light (radio remote control, wall panel or WiFi module). The CCT 6W LED bulb has a high luminous efficacy of 580lm and wireless control, which is achieved with a 2.4GHz radio. The characteristic feature of the bulb is the narrow angle of incidence, which can be used as spotlights. Adapted for GU10 socket.
The remote controller needs to be purchased separately. For compatible devices please see the compatible MiBoxer products tab.
Features of Mi-Light 6W GU10 dual white LED spotlight FUT107
Adapted to GU10 socket
Possibility to change colour temperature
Wireless communication with the controller (radio)
Get control over Wi-Fi (additional module)
Ecologically friendly LEDs based on SMD technology
Low power consumption
High durability of LEDs
Signal transmission
The radio beam that uses the LED light to communicate with the Mi-Light controller provides full wireless connectivity at 30 meters. This is because the bulb has a built-in receiver for non-invasive connection. Optional control via Wi-Fi (for mobile devices), available only when using the appropriate Wi-Fi module.
Wi-Fi capability
To access the control over the Wi-Fi network, you need to purchase the appropriate module, which can be found in the compatible MiBoxer products tab.
Colour adapted to the mood - colour temperature
CCT (Correlated Colour Temperature) allows you to change the colour temperature in terms of the different colour temperatures expressed in Kelvin [K]. For the Mi-Light series, this value oscillates at 2700K-6500K. The lower value allows you to obtain warm light, ideal for resting, while bringing your body into a relaxed mood, while the higher the colour temperature, the colder the light, which will vary in performance. The colour temperature is achieved quickly and remotely using the Mi-Light series controllers.
Full control - cooperation with broadcasting equipment
Each of the Mi-light LED driver series is characterized by the ability to assign not only one device to it. Built-in invisible underneath the electronics, it works on the principle of the receiver, thus connecting with our LED driver. One zone in the remote control is also not an obstacle because we can assign to it many devices such as LED bulbs, downlights and receivers working with the model. Many devices do not interfere with each other and make this connection easy to use and easy to control. Above in the compatible MiBoxer products tab, you will find a full table showing all the devices that work with your model
Entire room within reach of the hand - zone control
Some of the Mi-Light transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is the ability to program an unlimited number of receivers to a particular zone, in this case only the output parameters of the receiver.
Interior of LED lighting without secrets - construction of the device
The GU10 bulb, with its exterior, is made of polycarbonate (PC) material coated with an inner aluminium layer that absorbs the accumulated temperature, thus providing longer lamp life. The electronics used in incandescent bulbs ensure stable operation of high-quality diodes, which are characterized by long life and large light output. The included inverter eliminates the flicker effect and does not expose our eyes to irritation and the milk shade made of acrylic glass effectively eliminates the glare and increases safety when the bulb falls.
Type of socket | GU10 |
Rated power | 6W |
Light temperature range | 2700-6500K |
Rated voltage | 100-240V AC / 50-60Hz |
Nominal light output | 580lm |
Colour rendering index | >80 |
Beam angle | 30° |
Lamp power factor | >0.55 |
Remote control with | please see the compatible MiBoxer products tab |
Communication method | Radio 2.4GHz |
Communication range | Up to 30 meters in an open area |
Product compatibility | please see the compatible MiBoxer products tab |
Dimmable | Yes |
Dimming range | +/- 10% – 100% |
Cooling | Internal aluminium casing |
Protective cover | Yes (plastic) |
CCT converter | Yes |
Lifespan | 50,000 hours |
Ingress Protection | IP20 |
Model number | FUT107 |
Dimensions[mm] | L50 x W50 x H72 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
1 x GU10 CCT LED bulb in a retail box
Data sheet
Specific References
Product Name: 2.4G Sunrise Remote (Color Temperature)
Model No.: S1-B/S1-W/S1-G
Working Voltage: 3V (AAA battery*2PCS)
Transmitting Power: 6dBm
Standby Power: 20μA
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40℃
Product Name: Rotating switch panel remote
Model No.: K1-B
Working Voltage: 3V (CR2032 battery)
Transmitting Power: 6dBm
Standby Power: <6uA
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40℃
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Magnetic installation
• Brightness and colour temperature adjustable
Available also in white colour
Product Name: 4-Zone Panel Remote (Brightness)
Model No.: B1-B
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
• Adopt a high-precision capacitive touch IC
• Magnetic installation
• 2.4G RF wireless transmission technology
• Support MiBoxer/Mi-Light 2.4G series
• Control distance: 30m
• Brightness adjustable
Product Name: Touch Dimming Remote Controller
Model No.: FUT087-B
Working Temperature: -20 -60℃
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 10uA
Control Distance: 30m
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Brightness adjustable
Product Name: Rotating switch panel remote
Model No.: K1
Working Voltage: 3V (CR2032 battery)
Transmitting Power: 6dBm
Standby Power: <6uA
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40℃
Product Name: 2.4GHz Gateway
Model No.: WL-Box1
Input: DC5V/500mA (Micro USB)
Work Temperature: -20~60℃
Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz
RF: 2.4GHz
Transmitting power: 6dBm
• Compatible with Mi-Light and MiBoxer 2.4GHz RF series product
• Smartphone app control
• Support Third Party Voice Control
Product Name: Touch Dimming Remote Controller
Model No.: FUT087
Working Temperature: -20 -60℃
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 10uA
Control Distance: 30m
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Brightness adjustable
Product Name: 2.4GHz 4 Zone RF Rotating Wheel Remote Control
Model No.: FUT006
Voltage: 3V (section 2 batteries)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 110.5*53*22mm
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Brightness and colour temperature adjustable
