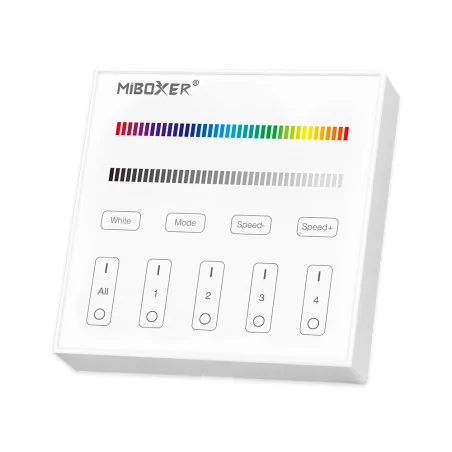

Mi-Light 4-zone RGB/RGBW smart panel B3

Product Name: 4-Zone RGB/RGBW Smart Panel Remote Controller

Model No.: B3

Working Temperature: -20 -60℃

Voltage: 3V (2*AAA Battery)

Transmission Frequency: 2400-2483.5MHz

Modulation Method: GFSK

Transmitting Power: 6dBm

Control Distance: 30m

Standby Power: 20uA

Panel Size: 86*86mm

• Adopt a high-precision capacitive touch IC

• Magnetic installation

• 2.4G RF wireless transmission technology

• Support MiBoxer/Mi-Light 2.4G series

• Control distance: 30m

• 16 Million colours

• Brightness and color temperature adjustable

Read moreShow less
£21.60 (VAT incl.)
Last items in stock 2 Items
Add to wishlist
Add to compare0

Mi-Light 4-zone RGB/RGBW smart panel B3

Mi-Light 4-zone RGB/RGBW smart panel B3 size product dimensions

Wall-mounted 4-zone radio controller for RGB/RGBW lighting. Mi-Light is a wireless wall panel for managing brightness with the ability to control a given RGB colour for multi-colour devices. The controller allows individual access for each zone, which can be controlled by a glass wall panel. The device is designed for wall mounting.

simple but multi-functional Mi-Light 4-zone RGB/RGBW smart panel B3

Application for installation:

RGB - multicolour RGB+W - multicoloured with extra white

no wiring pasting easy to move easy operation smart panel controller

Characteristic features of the Mi-Light B3 wall panel

Switching on or off the connected LED illumination

Enables and disables all zones simultaneously

Dimming and brightening of the connected LED lighting

Dimming and brightening of all zones simultaneously

Achieve monochromatic colour

Colour capability for individual / all zones

Available dynamic programs to change the characteristics of the work

Change the speed of your dynamic programs

touching button with sound Mi-Light 4-zone RGB/RGBW smart panel B3

Features of the B3 wall panel

4 zones to use

Powered by two AAA batteries

Radio range up to 30 meters

A glass panel on the wall

Possibility of extension of the installation

Sound signalling

Gently illuminates the button for lighting

Construction suitable for surface mounting

24 months warranty

Mi-Light 4-zone RGB/RGBW smart panel B3 powered by 2 x AAA batteries

The wireless connectivity of the wall panel enables wireless control of up to 30 meters in open areas. Communication based on 2.4GHz frequency provides stable and synchronized operation of the LED lighting used. For products that are compatible with the B3 wall panel, see the compatible MiBoxer products tab.

sensitive touching IC screen wall panel controller for LED lights4-zone RGB RGBW smart panel remote controller milight

Table 2. Dynamic programs B3

Number Function Change speed Change brightness
 1 Smooth transition between all colours  Possible  Possible
 2 Single colour flashing  Possible  Possible
 3 Pulses between 3 basic colours and white  Possible  Possible
 4 Jumps between 6 colours and white  Possible  Possible
 5 Jumps between random colour sequences  Possible  Possible
 6 Red pulses complete with 3 flashes  Possible  Possible
 7 Blue pulse with 3 flashes  Possible  Possible
 8 Green pulse with 3 flashes  Possible  Possible
 9 Several sequences combined in 1 dynamic program  Possible  Possible

Wall panel design - small touch, big possibilities

Mi-Light 4-zone RGB/RGBW smart panel B3 button function diagram

Mi-Light wall panels differ in their design depending on the model presented. A coherent control element is the control element, which corresponds to a different function. In the centre of the wall panel, there is a button for turning on/off the connected LED illumination, brightness and colour temperature for the CCT controllers, using the touch control slider. The colour scheme of the RGB, RGB+W or RGB+CCT multicolour driver is the same, the change is achieved through the discs on which the individual colours or touch sliders are located.

Glass touch panel - touch control

high-end tempted glass panel B3 milight controller

The glass touch panel in the Mi-Light series not only provides an aesthetically pleasing appearance due to the absence of protruding buttons but also a full touch screen with touchpads for different functions depending on the model of the device. In addition to the glass wall panel, I have good protection for all kinds of minor scratches, so you get high durability for a long time.

Entire room within reach of the hand

4-zone individual control smart home lighting controller

Some of the Mi-Light transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is an ability to program an unlimited number of receivers to a particular zone.

Full control - cooperation with receiving devices

compatible with 4-zone RGB and RGBW series LED controller

Each of the Mi-light LED driver series is characterised by the ability to assign multiple devices to it. Built-in invisible underneath the electronics, it works on the principle of the receiver, thus connecting with our LED driver. One zone in the remote control or wall panel is also not an obstacle because we can assign many devices such as LED lamps, downlight luminaires and receivers working with the model. Many devices do not interfere with each other and make this connection easy to use and to control.

2.4GHz wireless transmitting 30m control distance

16 million colours sensitive touch panel LED strip LED lights remote controller

9 colour changing modes choose the atmosphere you want B3 milight controller

1-100% brightness adjustable dimming lights dimmer B3 milight LED series

Mi-Light 4-zone RGB/RGBW smart panel B3 specification

Application For multi-colour installations with extra white RGB+W
Maximum output current Dependent on the receiver used
Powered by 2x1,5V AAA batteries (not included)
The number of zones supported 1 to 4
Modulation method GFSK
Controlling method Radio
Controlling range up to 30 meters in an open area
Model number B3
Control frequency 2,4GHz
Power consumption in operating mode 5,5dBm
Power consumption in standby mode 10uA
Working temperature -20 – 60℃
Type of installation Surface
Colour White
Product compatibility See the compatible MiBoxer products tab
IP rating IP20
Dimensions[mm] L86 x W86 x H21
Certification RoHS, CE, UKCA
Warranty 2 years

Mi-Light 4-zone RGB/RGBW smart panel B3 retail packaging wholesale cardboard box size

Mi-Light 4-zone RGB/RGBW smart panel B3 package includes

1 x Mi-Light 4-zone wall panel B3

1 x Plastic wall mount

1 x User Manual (English)

Read moreShow less
Product Details

Data sheet

Supported Zones
Light Colour
Rated Voltage
Ingress Protection
Model Number
2 years
Light Source
Communication Range
Communication Method
Operating Temperature
-20 – 60℃
Pack Quantity
Original retail colour packaging
Country/Region Of Manufacture
Type Of Material
Battery Powered
Battery Type
2 x AAA
Batteries Included?
Control Frequency
Current Type
Power Source
Colour Changing
Lighting Remote & Control
Unit Type
Installation Area
Control Style
Remote Control
Item Length
Item Width
Item Weight
Item Height
Wall Mounted
Wholesale Box Quantity

Specific References

Shipping Info
Wholesale shipping
B3 - compatible MiBoxer products
