Mi-Light 2.4GHz 4-zone RGBW remote control with button FUT095

Product Name: 2.4GHz 4 Zone RF RGBW Remote

Control with Button

Model No.: FUT095

Voltage: 3V (section 2 batteries)

Transmission Frequency: 2.4GHz

Modulation Method: GFSK

Transmitting Power: 6dBm

Standby Power Consumption: 20uA

Control Distance: 30m

Size: 120*52.5*21mm

Read moreShow less
£11.55 (VAT incl.)
Last items in stock 2 Items
Condition
New product
Reference:
P1012
Brand:
Description

Mi-Light 2.4GHz 4-zone RGBW remote control with buttons FUT095

RGB RGBW button remote controller white multicolour size

Mi-Light 4-zone LED radio remote control, which allows individual control of each zone using the radio receiver. The multifunctional remote controls the RGB and RGB + W colour palette, as well as the brightness of the connected LEDs using the classic buttons.

2.4GHz 4-zone RF RGBW remote control with buttons 30m control distance

The receiver/bulb needs to be purchased separately. For compatible receivers please see the compatible MiBoxer products tab.

Application for installation: RGB - multicolour RGB+W - multicoloured with extra white

Characteristic features of the Mi-Light 2.4GHz 4-zone RGBW remote control with buttons FUT095

Dimming and brightening of the connected LED lighting

Active colour change from RGB colour palette

Possibility to turn white (using RGB+W tape)

Control of each zone separately

Enables/disables all zones simultaneously

Active dynamic programs to use (change mode/speed)

2 x AAA battery match your LED lighting imagination

The basic way of communicating receivers with the transmitter is by radio, it is through which data transmission takes place, giving us the freedom to use the wireless LED driver. Optional Wi-Fi control, which lets you control your lighting with your mobile device (such as a smartphone or tablet), is available only through the appropriate Wi-Fi module. The cooperating devices are listed in the compatible MiBoxer products tab.

Table 2. Dynamic programs for the Mi-Light 2.4GHz 4-zone RGBW remote control with buttons FUT095

NumberFunctionChange speedChange brightness
 1 Smooth change of red, green, blue and white colours  Possible  Possible
 2 Jumps between red, green, blue, yellow, purple, blue and white  Possible  Possible
 3 Quick jump between different colours  Possible  Possible
 4 Smooth brightening and dimming of red and triple flash  Possible  Possible
 5 Smooth brightening and dimming of green and triple flash  Possible  Possible
 6 Smooth brightening and dimming of blue and triple flash  Possible  Possible
 7 Combined programs no. 3/4/5/6  Possible  Possible
 8 Slow, smooth flow between different colours  Possible  Possible
 9 Dimming and brightening of white (W)  Possible  Possible

Great comfort - 16 million colours to drive

16 million colours multicolour control with use of colour ring

The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. Obtaining a given shade of colour depends on the precision of the control, which is usually done with tactile transmitters. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.

Remote construction - remote control has not been so easy

remote control functions colour ring indicator brightness dimming master link light

Depending on the model of the transmitting device, which mainly occurs as a radio link to the receiver, various control functions can be obtained. The centre of the touchscreen, the main function of the control, it is through it that we can change the colour or the brightness of the LED. At the very top of the remote control, there are buttons to enable/disable all available zones in our LED installation. Buttons for turning on / off the zone are located at the bottom of the device stacked side by side. The construction of the multi-zone remote control is simple, the buttons for the zone on / off are located at the bottom of the device stacked side by side so that access to them is convenient.

Entire room within reach of the hand - zone control

2.4G wireless transmission technology control lighting in rooms

Some of the Mi-Light transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is the ability to program an unlimited number of receivers to a particular zone, in this case only the output parameters of the receiver.

Full control - cooperation with receiving devices

Each of the Mi-light LED driver series is characterized by the ability to assign not only one device to it. Built-in invisible underneath the electronics, it works on the principle of the receiver, thus connecting with our LED driver. One zone in the remote control is also not an obstacle because we can assign to it many devices such as LED bulbs, downlight luminaires and receivers working with the model.

Mi-Light 2.4GHz 4-zone RGBW remote control with buttons FUT095 specification

Application for RGB+W installation
Number of zones/channels supported 4
Controlling via Radio
Controlling method Buttons + colour wheel
Powered by 2 x 1.5V AAA battery
Signal modulation GFSK
Type of transmission One-way
Power consumption 6dBm
Standby power consumption 20uA
Compatible with Mi-Light RGBW series (see the compatible MiBoxer products tab)
Method of communication 2.4GHz radio
Controlling range up to 30 meters in an open area
Colour White
Degree of protection IP20
Model number FUT095

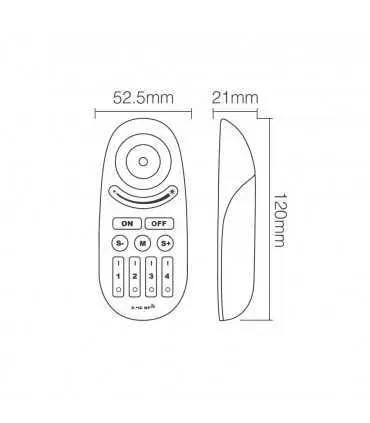

Dimensions[mm] L120 x W52.5 x H21
Certification RoHS, CE
Warranty 2 years

multicolour packaging of Mi-Light FUT095 RGBW remote controller

Mi-Light 2.4GHz 4-zone RGBW remote control with buttons FUT095 package includes

1 x remote controller with buttons FUT095

1 x User Manual (English)

Read moreShow less
Product Details
P1012

Data sheet

Supported Zones
4-zones
Light Colour
RGBW
Rated Voltage
3V
Features
Wireless
Ingress Protection
IP20
Model Number
FUT095
Certification
CE
RoHS
Warranty
2 years
Light Source
LED
Communication Range
30m
Communication Method
Radio
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Plastic
Colour
White
Battery Powered
Yes
Battery Type
2 x AAA
Batteries Included?
No
Control Frequency
2.4GHz
Current Type
DC
Power Source
Battery
Colour Changing
Yes
Class
Remote Control
Unit Type
Unit
Installation Area
Indoor
Control Style
Remote Control
Item Length
120mm
Item Width
52.5mm
Item Weight
0.069kg
Item Height
21mm
Mounting
Free Standing
Wholesale Box Quantity
200
Attachments
Mi-Light - CE declaration
The document which states that the product is in conformity with following European Directive(s) and Regulation(s)
Download (611.34k)
FUT095/FUT096 User manual
User manual for RGBW LED remote controllers from Mi-Light brand.
Download (1.39M)
