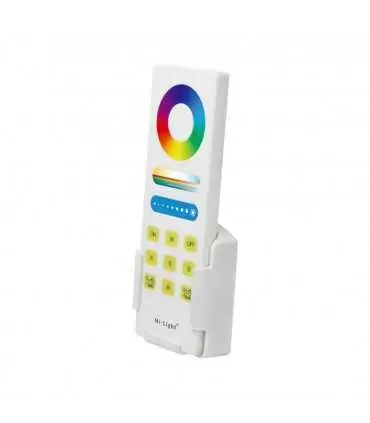

Mi-Light RGB+CCT full touch remote controller FUT088
Single-zone LED radio remote control series Mi-Light, is a device that allows control of one of the available zones using a radio receiver. It is characterized by the full control option, both obtaining any colour from the RGB colour palette, as well as the active change of brightness intensity with the CCT colour temperature. It is powered by two 1.5V AAA batteries. The transmitter cooperates with devices from the Mi-Light series (receivers, light bulbs, downlights, etc.)
The receiver (s) must be purchased separately. For compatible receivers please see the compatible MiBoxer products tab.
Application for installation:
RGB - multi-coloured
RGB+W - multi-coloured with additional white colour
RGB+CCT - multi-coloured with a variable colour temperature
Characteristic functions of the Mi-Light radio remote control - FUT088
Switching on and switching off connected LED lighting
Dimming and brightening of connected LED lighting
Obtaining the same monochrome colour
The colour can be controlled for the zone
The ability to control the colour temperature for the zone
Quick activation of the red/green/blue colour through the touch button
Available dynamic programs that change the work characteristics
Changing the speed of dynamic programs being played
Temporarily switching off the lighting after 60 seconds or 10 minutes
Features of the Mi-Light radio remote control - FUT088
One zone to use
Power supply using two 1.5V AAA batteries
Radio range up to 30 meters
Extend the radio signal by retransmitting the signal
Cooperation with mobile applications (additional option)
Easily accessible static colours
Wall mount
24 months warranty
The form of communication that connects the transmitter with the receiver is via a radio route. The signal based on the frequency of 2400-2483.5MHz allows for wireless operation of the installation at the level of 30 meters in open terrain. Using more devices, we can create LED installations based on unlimited coverage, thanks to the technology of signal retransmission. The condition of such work is to place another receiving device within 30 meters. The products cooperating with the wall-mounted panel FUT088 can be found in the compatible MiBoxer products tab.
Table 2. Dynamic programs for the Mi-Light radio remote controller - FUT088
| Number | Function | Change of speed | Changing the brightness/saturation |
|---|
| 1 | Smooth transition between all colours | Possible | Possible |
| 2 | Smooth pulsation of white colour | Possible | Possible |
| 3 | Smooth transition between RGB colours | Possible | Possible |
| 4 | A jumping change of seven colours | Possible | Possible |
| 5 | A jumping change of random colours | Possible | Possible |
| 6 | Smooth pulsation of red colour ended with a triple flash | Possible | Possible |
| 7 | Smooth pulsation of green colour finished with a triple flash | Possible | Possible |
| 8 | Smooth pulsation of blue colour finished with a triple flash | Possible | Possible |
| 9 | The smooth pulsation of the white colour ended with a triple flash | Possible | Possible |
The construction of a radio remote control - a small touch, great possibilities
Wireless communication - radio route
The wireless radio route that these radio remotes have, provides comfortable control of LED lighting within 30 meters in an area not exposed to interference. Increasing the radio signal in the installation is possible by using several receiving devices assigned to one zone. These devices are characterized by the transmission of the received signal to the next device, thus increasing the control range of the LED installation (The distance between the receivers cannot be greater than 30m).
Delayed delay function - two operating modes
Another useful functionality that can be proud of these remotes from the Mi-Light series is undoubtedly the time mode responsible for switching off the LED lighting. This mode consists in turning off the lighting completely after one or ten minutes of time, thus ensuring that activities are carried out, such as comfortably leaving the room, when it is completely dark or dark outside. The advantage of such a solution is quick access to the mode, using the appropriate button located on the radio remote control.
Mi-Light RGB+CCT full touch remote controller FUT088 specification
| Application | For RGB/RGB+W/RGB+CCT installations |
| Number of supported zones/channels | 1 |
| The way of control | Radio |
| The way of control | Touch buttons |
| The range of radio communication | Up to 30 meters in open terrain (increase the range through signal retransmission) |
| Powering the remote control | 2 x 1.5V AAA battery (not included) |
| Signal modulation | GFSK |
| Transmission type | One-way |
| The frequency of transmission | 2400-2483.5 MHz |
| Power consumption in operating mode | 6dBm |
| Power consumption in standby mode | 20uA |
| Touch buttons | Yes |
| Wall bracket | Yes (included) |
| Colour | White |
| Cooperation with receivers | See the compatible MiBoxer products tab |
| The degree of tightness | IP20 |
| Remote dimensions | 47mm x 134mm x 16.5mm |
| Working temperature | -20 - 60℃ |
| Declarations | RoHS, CE, UKCA |
| Warranty | 24 months |
Mi-Light RGB+CCT full touch remote controller FUT088 package contains
1 x Remote in a retail box
1 x Wall holder
1 x User manual
1 x Double-sided adhesive pad
2 x Screws with plastic plugs
