Product Name: 2.4GHz Gateway
Model No.: WL-Box2
Input: DC5V/500mA (Type-C)
Transmitting Power: 6dBm
RF: 2.4GHz
RF Control Distance: 30m
Working Temperature: -10~40℃
Wireless Technology: WiFi-IEEE 802.11b/g/n 2.4GHz
• Compatible with Mi-Light and MiBoxer 2.4GHz RF series product
• Smartphone app control
• Support Third Party Voice Control
• APP remote control all group devices

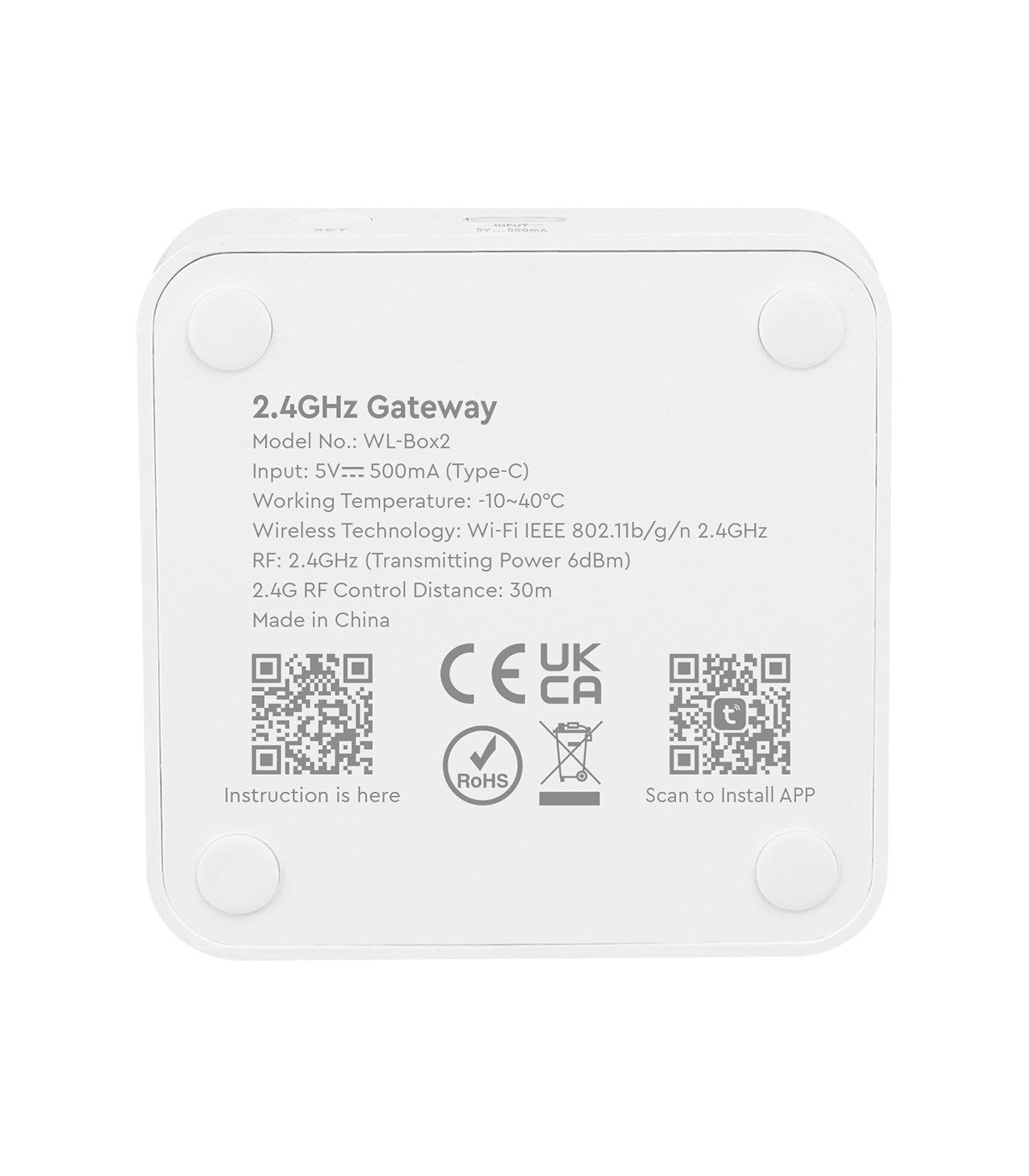

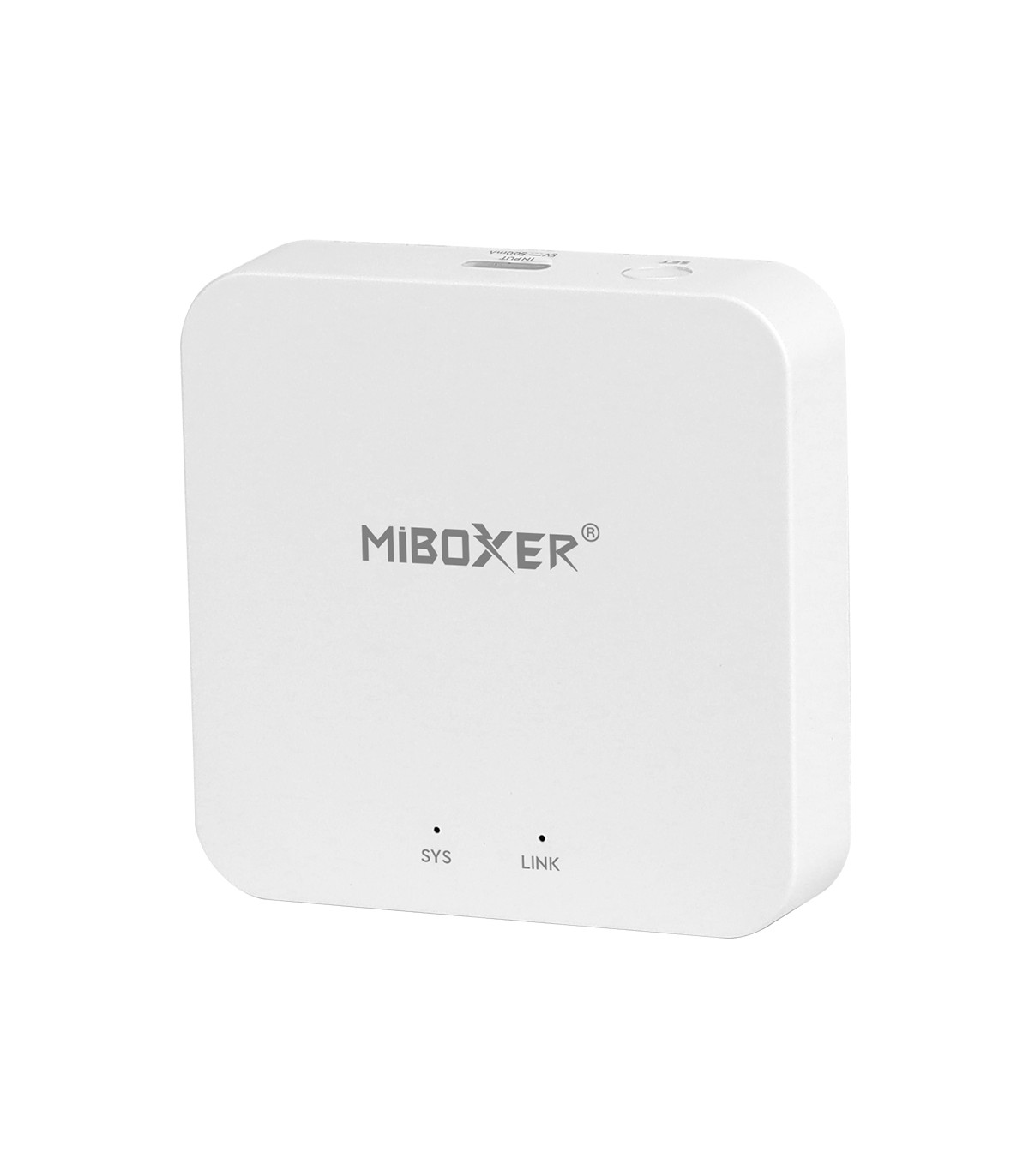

MiBoxer 2.4GHz gateway WL-Box2
The MiBoxer 2.4GHz Gateway 2 is an essential component for anyone looking to upgrade their smart lighting system. With its easy installation and setup process, you can control and monitor your smart lights from anywhere using the MiBoxer Smart app or TuyaSmart app. The gateway offers stable and reliable communication with your smart lights via Radio Frequency, ensuring that your commands are carried out quickly and accurately. Additionally, the gateway supports voice control with popular virtual assistants such as Amazon Alexa and Google Assistant, making it a versatile addition to any smart home. Order the MiBoxer 2.4GHz Gateway 2 today and take the first step towards a smarter, more convenient home lighting experience. The newest WL-Box version has the ability to create scenes and schedules as well as allows you to create and control up to 100 zones.
100 Zones control |
Group timer switch |
Do not disturb ON/OFF |
Turn ON/OFF indicator light |
Copy another paired remote |
APP remote control all group devices
100 zones can be controlled individually; Custom edit zone name (Zone1-Zone16)
Compatible with MiBoxer series 2.4GHz products
It can be used with 2.4GHz lamps, controllers, TRIAC and other devices to experience more functions.
Support third-party voice control
Voice control with popular virtual assistants such as Amazon Alexa and Google Assistant.
Connection Steps
Step 1Download "Tuya Smart" app |
Step 2On the home page, touch the " + " icon in the upper right corner |
Step 3Touch "Lighting" and select "Light Source (BLE+Wi-Fi)" |
Step 4The gateway indicator flashes red, if not, press and hold the " SET " button for 3 seconds |
Step 5The gateway completes the match, touch "Done" |
Step 6Match the code with the device, smart control |
MiBoxer 2.4GHz gateway WL-Box2 specification
Application | 2.4GHz devices |
Input | DC5V/500mA (Type-C) |
Wireless technology | WiFi-IEEE 802.11b/g/n 2.4GHz |
Radio Frequency | 2.4GHz |
Group control | Yes |
Copy another paired remote | Yes |
Colour | White |
Controlling range | up to 30 meters in an open area |
Model number | WL-Box2 |
Working temperature | -10~40℃ |
Compatible devices | please see the compatible MiBoxer products tab |
Weight | 87g |
Dimensions[mm] | L64.5 x W64.5 x H15 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |

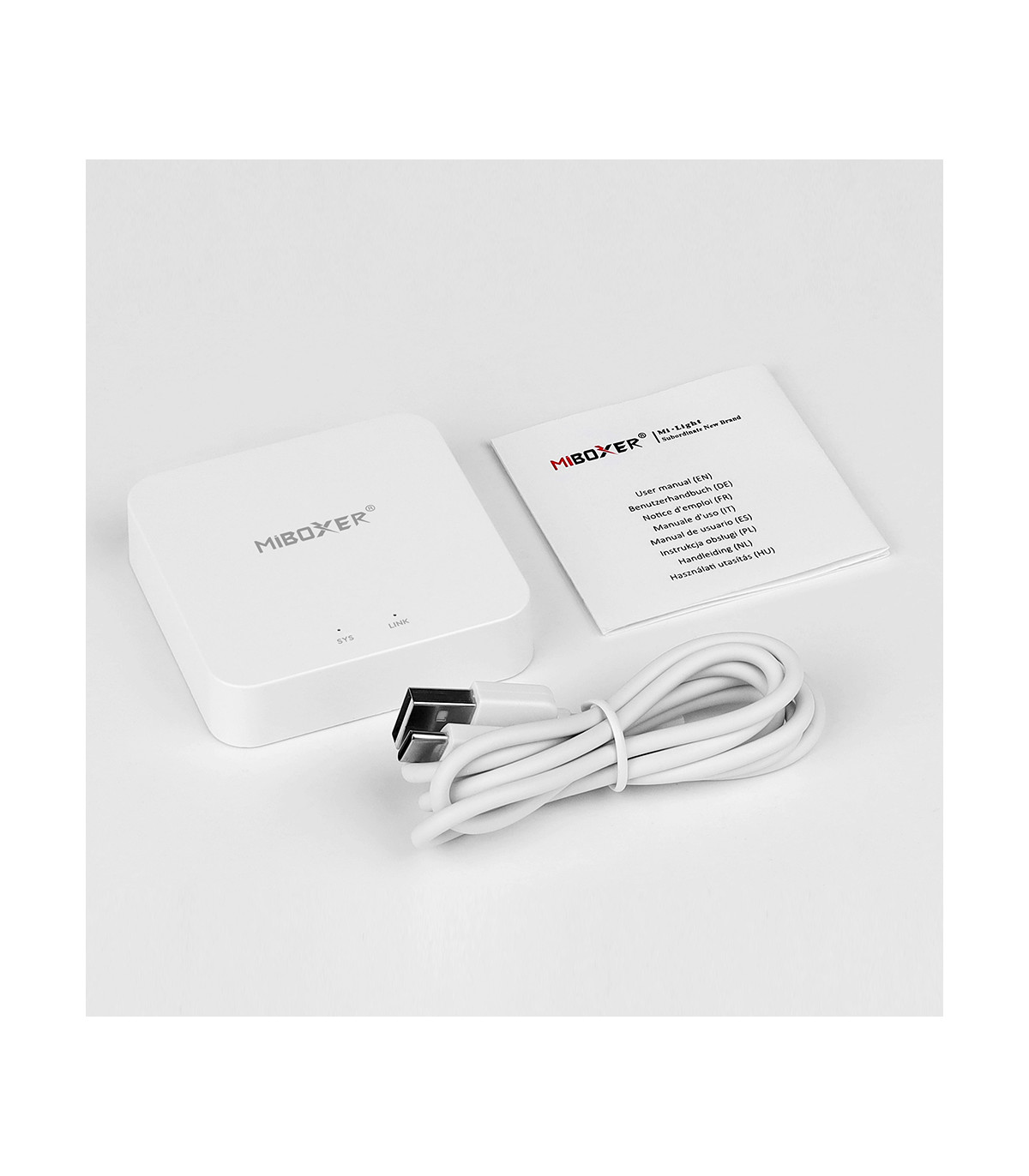

MiBoxer 2.4GHz gateway WL-Box2 package includes
1 x MiBoxer wireless hub in a retail box
1 x USB type-C to a USB charging cable
1 x user manual
Data sheet
- Supported Zones
- 100-zones
- Rated Voltage
- 5V
- Model Number
- WL-Box2
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Country/Region Of Manufacture
- China
- Colour
- White
- Control Frequency
- 2.4GHz
- Current Type
- DC
Specific References
- EAN13
- 6970602184467
- MPN
- WL-Box2
