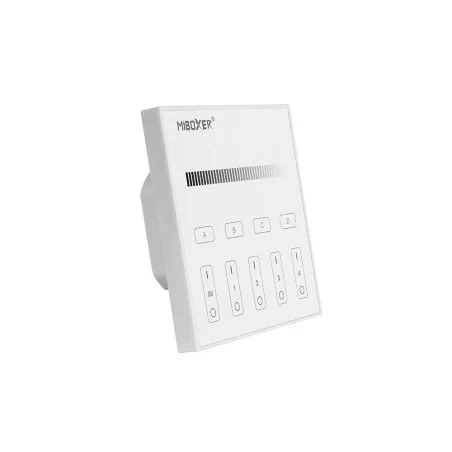

MiBoxer DALI dimming touch panel (DT6) DP1S

Product Name: DALI Dimming Touch Panel ( DT6 )

Model No.: DP1S

Power Supply: DALI Power

DALI Bus Standard: IEC62386

Output Signal: DALI Signal

Controlling Type: Dimming(DT6)

Standby Current: <4mA@16V

Working Temp.: -10~40°C

• Support DALI standard protocol IEC62386-102, 207, 209

• High precision Capacitive touch screen IC

• Tempered glass panel

• Brightness adjustable

Read moreShow less
£36.00 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Close
Condition
New
Reference:
P2154
Brand:
Love0
Add to wishlist
Add to compare0
Description

MiBoxer DALI dimming touch panel DP1S

The wall-mounted LED panel - Mono - 4 zones - DALI - Type DT6 - DP1S is a wired wall panel that allows you to manage the brightness for monochrome LED strips using a signal based on the DALI control system. The wall panel is powered directly from the DALI station, so it does not need additional power from the battery or 230VAC network. It is characterized by a built-in LED display on the back of the housing that allows for a smooth transition between 256 addresses. It has four memory slots that allow you to record the brightness level. It is mounted to a standard fi60 box.

Application for installation:

MONO - single-colour

DALI - based on the DALI system

Features of the MiBoxer wall panel - DP1S

Power supply via DALI stations

Wired connection using the DALI signal

It uses the IEC62386 standard for communication

Possibility to establish 256 addresses and 15 groups

Built-in LED display

Easier access to groups/addresses

Additional memory slots for saving sequences

Glass wall panel

Expansion of the installation at any possible time

Delicate LED backlight showing the operation of the device

Mounting to the fi60 box

MiBoxer DALI dimming touch panel (DT6) DP1S specification

Application For MONO (single colour) installations
Type of installation Flush-mounted (standard fi60 box)
Rated voltage DALI Bus station
The number of zones/channels supported 1 to 4
Colour White
Controlling method Wired - DALI
Cooperation with external systems DALI Bus Standard interface: IEC62386
Model number DP1S
Communication type One-way
Glass panel Yes
Working temperature -20 – 60℃
Touch buttons Yes
Product compatibility See the compatible MiBoxer products tab
Ingress Protection IP20
Dimensions[mm] L86 x W86 x H33
Certification RoHS, CE, UKCA
Warranty 2 years

MiBoxer DALI dimming touch panel (DT6) DP1S package includes

1 x MiBoxer DALI MONO touch panel DP1S in a retail box

1 x Rubber wall seal

2 x Screws

1 x User Manual (English)

Read moreShow less
Product Details
P2154

Data sheet

Supported Zones
4-zones
Light Colour
MONO
Ingress Protection
IP20
Model Number
DP1S
Certification
CE
RoHS
UKCA
Warranty
2 years
Light Source
LED
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Aluminium
Glass
Plastic
Colour
White
Design
Square
Class
Lighting Remote & Control
Unit Type
Unit
Installation Area
Indoor
Item Length
86mm
Item Width
86mm
Item Weight
0.190kg
Item Height
33mm
Mounting
Wall Mounted
Wholesale Box Quantity
100

Specific References

EAN13
6970602181350
MPN
DP1S
Shipping Info
Wholesale shipping
DP1S - compatible MiBoxer products
