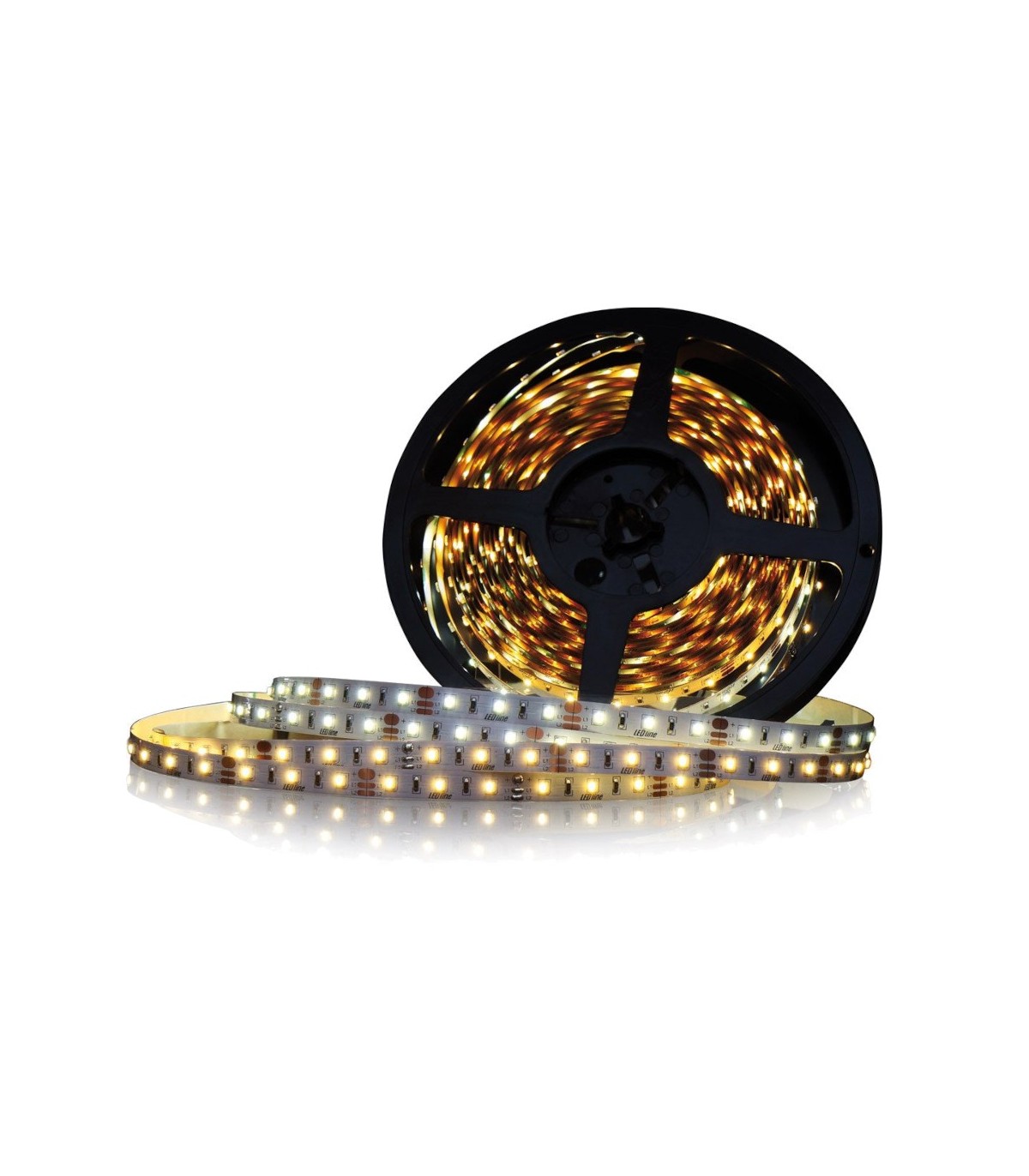

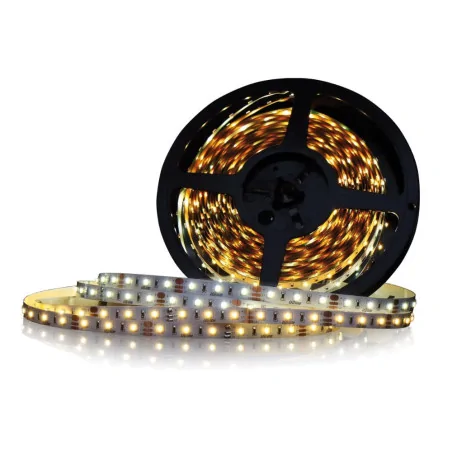

LED line® strip 3528 SMD 300 LED 12V multi-white 3200-7000K IP20

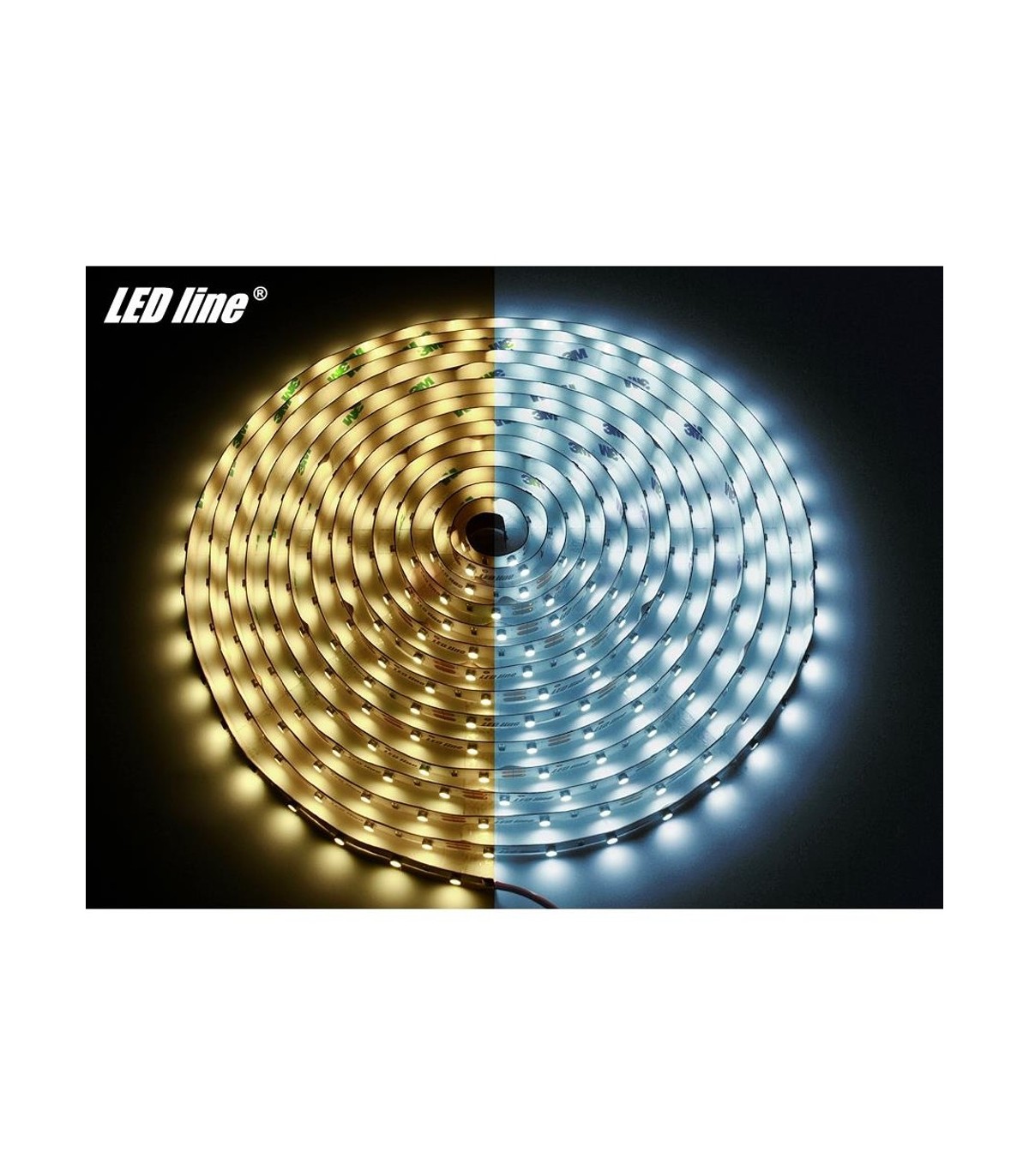

The MULTI WHITE ™ LED strip is made based on an innovative type of SMD diode, in which two independent chips emitting white light are placed. Such a solution, using dedicated controllers, enables a smooth selection of colour temperature from 3200K - 7000K.
Flexible LED line ® is the latest solution for lighting furniture, shop windows, advertising and interior decoration. It combines high light efficiency with minimal electricity consumption. Due to its small dimensions and unusual flexibility, the tape can be used in virtually any place where it is difficult to mount other light sources. The use of LED strips is limited only by the imagination.
For the production of each LED line ® strip, selected diodes with the highest possible brightness were used. The durability of each of them is over 50,000 hours !!! Due to the use of other components for the production of tapes, its total durability is about 30,000 hours of continuous lighting, which means an uninterrupted operation for 4 years !!!
Each roll of LED line ® tape before going through the factory undergoes detailed quality control, which guarantees you that you receive the highest quality product in line with expectations. The range of LED line ®strips covers several dozen items differing in brightness, colour and purpose. A wide range of products allows you to choose the most optimal solution in terms of your expectations.
We guarantee reliable operation of LED line ® strips for many years, which is why we attach a full 36-month warranty to each purchased roll.
All LED line ® strips combine common features:
double-sided adhesive, original 3M ® tape guarantees easy and durable fastening of the LED line ® tape to the substrate
Optimal thickness flexible laminate PCB allowing almost any band forming while maintaining minimal voltage drops
minimum dimensions for use in the most inaccessible places
the ability to divide the tape into segments of any length
a wide viewing angle of the 120 ° diode
12V DC
LED line® strip 3528 SMD 300 LED 12V multi-white 3200-7000K IP20 specification
| Light colour: |
Multi-white
|
| Power supply: |
12V DC
|
| Colour temperature of the light: |
3200K-7000K
|
| Luminous flux (meter): |
warm white: 380lm, cold white: 360lm, two colours - neutral white: 740lm
|
| Luminous flux (5 meters): |
warm white: 1900lm, cold white: 1800lm, two colours - neutral white: 3700lm
|
| Number of LEDs (meter): |
60
|
| Number of LEDs (roll 5 meters): |
300
|
| Power (meter): |
4,8~9,6W
|
| Power consumption (roll 5 meters): |
24~48W
|
| Current (meter): |
0,4~0,8A
|
| Power consumption (roll 5 meters): |
2~4A
|
| LED type: |
SMD3528
|
| Lighting angle: |
120°
|
| Cutting section: |
5cm
|
| Ground type: |
flexible copper PCB laminate
|
| Substrate color: |
white
|
| Dimensions (width x height): |
10 x 2,5 (mm)
|
| Lifespan: |
30,000 hours
|
| Degree of protection IP: |
IP20
|
| Lamp warm-up time to 60%: |
1s
|
| Number of on/off cycles: |
50,000
|
| Coefficient of luminous flux after 30,000 h of lighting: |
30%
|
| Ignition time: |
<0.5s
|
| Lamp power factor: |
≥ 0.5
|
| Cooperation with a dimmer: |
only with PWM dimmers
|
| Weight with packaging: |
40g
|
LED line® strip 3528 SMD 300 LED 12V multi-white 3200-7000K IP20 package includes
1 x 5m LED strip in a retail packaging
