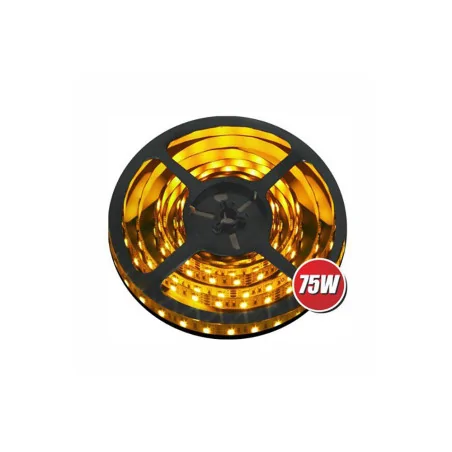

RGB 300 LED strip 75W IP20

Light colour: warm white, neutral white, cold white

Voltage: 24V DC

Colour temperature of the light: 3000K, 4000K, 6000K

Luminous flux: 660LM/m    2900LM/5m 760LM/m    3300LM/5m 805LM/m    3520LM/5m

Power (meter): 11W

LED type: COB

Amount of LEDs: 312 LEDs/m

Lighting angle: 120°

Cutting section: 38.5mm

The degree of protection: IP20

Sold per: pack (5m)

• 5050+2835 SMD LED

• Safe voltage DC24V

• Best ability for heat dissipation and low luminous decay

• Support creating shape and tailorable strip light

Products Name: DC12V RGB LED Strip Light

Model No.: LSL3NA1L

Input Voltage: DC12V

Power: R, G, B: 4W/m     15W/5m

LED Chip Specification: 5050 3-in-1 SMD LED Chip

LED Chip QTY: 60 LED/m

Board Material: Copper

Thickness: 2 oz (Front 1 oz, Back 1 oz)

LED Strip Width: 10mm

IP Rate: Non-waterproof IP20

Beam Angle: 120°

Warranty: 2 Year

Packing: 5m per roll

Extendability: Max 10m

• Safety voltage DC12V

• Best ability for heat dissipation and low luminous decay

• Support creating shape and tailorable strip light

Product Name: 150W RGB Dimming LED Driver (WiFi+2.4G)

Model No.: WP3-P150V24

Working Voltage: 100-240V~  50/60Hz

Output Voltage: 24V⎓

Output Current: Max 6.25A

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

RF: 2.4GHz

Remote Control Distance: 30m

IP Rate: IP67

ta:40℃     tc:85℃

• Built-in power adapter

• 2.4GHz RF remote controllable

• Smartphone app controllable

• 16 Million colours to choose

• Brightness adjustable

• Output Voltage 24V⎓

Product Name: 3 in 1 LED Strip Controller (Zigbee 3.0+ 2.4G)

Model No.: FUT037Z+

Working Voltage: DC12~24V

Output: 6A/Channel

Total Output: Max 12A

Work Temperature: -10~40℃

Wireless Technology: Zigbee 802.15.4

Zigbee Wireless Frequency: 2.400-2.480GHz

Zigbee Control Distance: 100m (open area)

2.4G RF Remote Control Distance: 30m

• Product follows Zigbee 3.0 standard protocol

• Zigbee Control distance: 100m (open area)

• Compatible with Mi-Light/MiBoxer 2.4GHz series remote

• 2.4G RF Remote Control Distance: 30m

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)

Product Name: RGB LED Controller

Model No.: FUT037P+

Input Voltage: DC12~48V

Output Current: 10A/Channel

Total Output: Max 20A

Working Temperature: -10~40℃

RF: 2.4GHz

Control Distance：30m

• Compatible with Mi-Light/MiBoxer 2.4GHz series remote

• Control Distance: 30m

• 16 Million colours to choose

• Brightness and colour temperature adjustable

• Switching 3 output modes via one button (RGB/RGBW/RGB+CCT)
