Type: RF wireless mini remote controller
Voltage: 5V -24V
Current: 6A
Size: 85mm*40mm*6mm
Remote controller battery 3V CR2025 (included)
This LED mini remote controller RF is combined with an 18-button RF remote. It will be more convenient for you to control your RGB LED strips since a mini controller is easy to be concealed and the RF controller is able to pass through the batter and gets a longer controlling distance.
Details:
ON/STANDBY: to turn on or switch to standby mode
MODE+/MODE-: switch to dynamic mode from static lighting mode or switch between dynamic modes
SPEED+/SPEED-: adjust dynamic mode lighting speed
BRIGHT+/BRIGHT-: adjust lighting mode brightness
COLOR+/COLOR-: static colour adjustment. Switch to static colour from the dynamic mode, or between static colours
DEMO: At demo mode, it plays 17 dynamic modes in a loop, each mode repeats 3 times.
For LED RGB strip light, LED wall washer, wall glass curtain lights, etc.

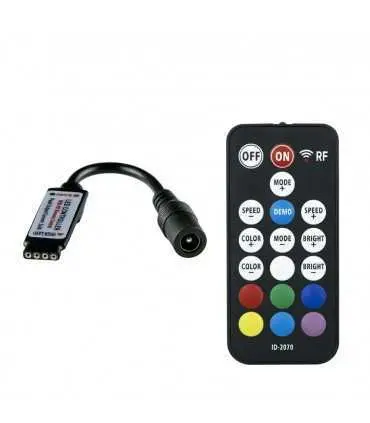

RGB 18 key RF mini remote controller ID-2070 specification
Type | RF wireless mini remote 2070 controller |
Model | 2070 |
Power supply voltage | 5V-24V |
Current max. | 6A for 12V |
Power | 72W for 12V |
Maximum power (instantaneous) | 144W for 12V |
Power socket | DC 2.1mm x 5.5mm |
Remote frequency | 433,92 MHz |
The range of the remote control | 10m (up to 20m in open space) |
The receiver can be hidden | YES - the receiver can communicate with the remote control through plasterboards, furniture boards, etc. |
Additional features | Power of Memory - a memory of the last setting at power failure. |
Powered by | 3V CR2025 battery (included) |
Size | 85mm*40mm*6mm |
Warranty | 24 months |
Certifications | CE, RoHS |
1 x 4-pin to female DC receiver
1 x LED mini remote controller
1 x User manual
Check also other mi-light remote controllers available in our offer.
